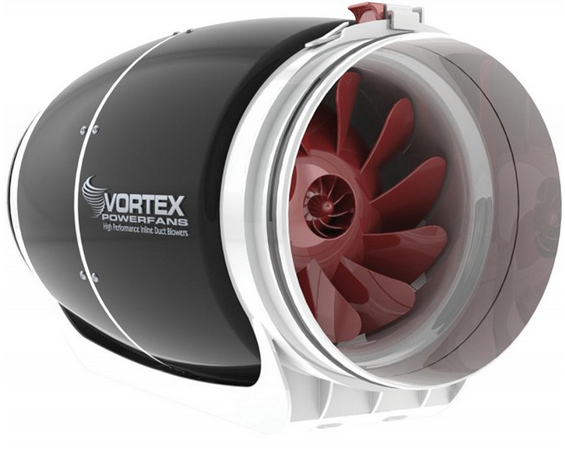

Vortex™ S-Line Inline Fan SpecsThe S-line is a revolutionary series of fans that combine energy efficiency, ultra-quiet operations and a collection of advanced technologies that deliver unparalleled performances.
An extremely energy efficient AC brush-less motor powers the patented mixed-flow dual impellers. Built with double insulated walls, noise is reduced to levels that were previously thought to be unattainable.
All S-Line models are assembled with high impact resistant polycarbonate casings, an integrated back draft damper and a mounting bracket designed for quick and easy installation.
The S-Line models feature a 10-year warranty!
Model Specifications:
Vortex S-Line Fan | 6"
| CFM: | 347 |
| RPM: | 2720 |
| Power Supply: | 120V / 60Hz |
| Power: | 72 Watts |
| Current: | 0.68 Amps |
Vortex S-Line Fan | 8"
| CFM: | 728 |
| RPM: | 3150 |
| Power Supply: | 120V / 60Hz |
| Power: | 232 Watts |
| Current: | 1.99 Amps |
Vortex S-Line Fan | 10"
| CFM: | 1081 |
| RPM: | 2970 |
| Power Supply: | 120V / 60Hz |
| Power: | 232 Watts |
| Current: | 2.12 Amps |
| Brand | Vortex |
|---|---|
| SKU | VORTEX-SLINE-FAN |
| Height (in.) | No |
| Width (in.) | No |
| Length (in.) | No |
| Warranty (*Spec-Box) | No |
| Hazmat? | No |
| UPC | No |
| N-P-K | N/A |
| Nutrient Application | N/A |
| Nutrient Type | N/A |
| OMRI Certified | N/A |
| Nutrient Material Type | N/A |
| Maintenance Information | No |
