Vortex Axial Inline Fan Specs
VTM Series

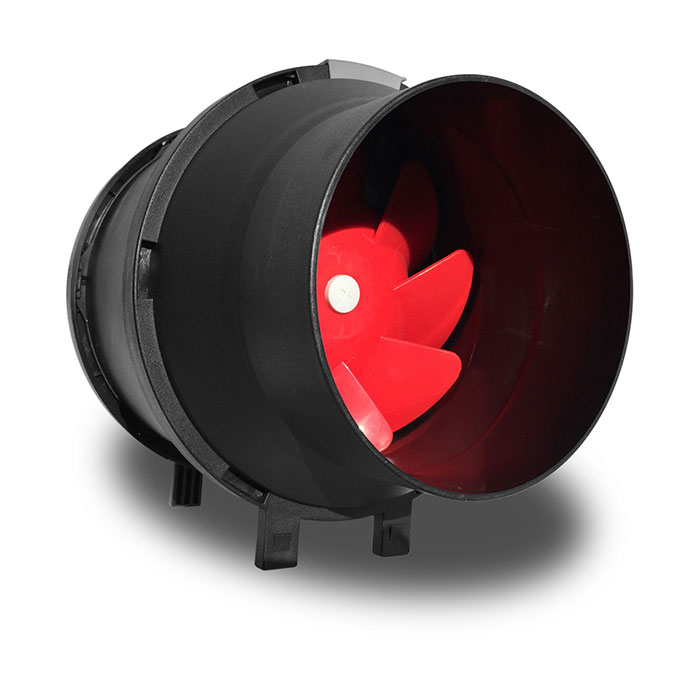

The Vortex Powerfan VTM Series is an in-line duct fan specifically designed to maximize the airflow performance with minimal noise levels in a small, compact housing. These fans incorporate a powerful mixed flow impeller and internal air vanes located at the discharge end of the fan housing. This impeller and guide vane combination provides a smooth laminar air flow which in turn minimizes turbulence and noise and generate an excellent air flow to static pressure performance ratio.
- Quiet operation
- Available in duct diameter from 4’’ to 8’’
- Airflow capacity up to 617 CFM
- Can be mounted in any position
- Precisely balanced for vibration-free operation and longer life expectancy
- ETL Listed
- Speed controllable
| Brand | Vortex |
|---|---|
| SKU | VTM0060 |
| Weight (lb.) | 6.6000 |
| Lead Time | This item ships in 1-2 Business Days |
| Height (in.) | 9.65 |
| Width (in.) | 9.65 |
| Length (in.) | 12.4 |
| Warranty (*Spec-Box) | 5 Year |
| Prop 65 | No |
| Hazmat? | No |
| UPC | 628507106034 |
| Stop Sale | AK, HI |
| Case/Pack/Pallet Amount | No |
| Fan Type | Inline |
| (Sort) Fan Size | N/A |
| Is Speed Controllable | Yes |
| Inline Fan Features | No |
| Does Fan Oscillate? | No |
| CFM Rating | 329 CFM |
| Exact Watts (*Spec-Box) | 70 Watts |
| (Sort) Horsepower (HP) | N/A |
| Amps | .58A |
| Frequency | 60Hz |
| Voltage (*Spec-Box) | 120 Volts |
| Max. Decibals | No |
| Max. RPM | 2400 RPM |
| Power Cord(s) Included | Yes |
| Power Cord Length | No |
| ETL Listed | Yes |
| UL Listed | No |
| Sub-Canopy Airflow Configuration | N/A |
| Ozone Generation | N/A |
| (Conf) Fan Model | N/A |
| Maintenance Information | No |
