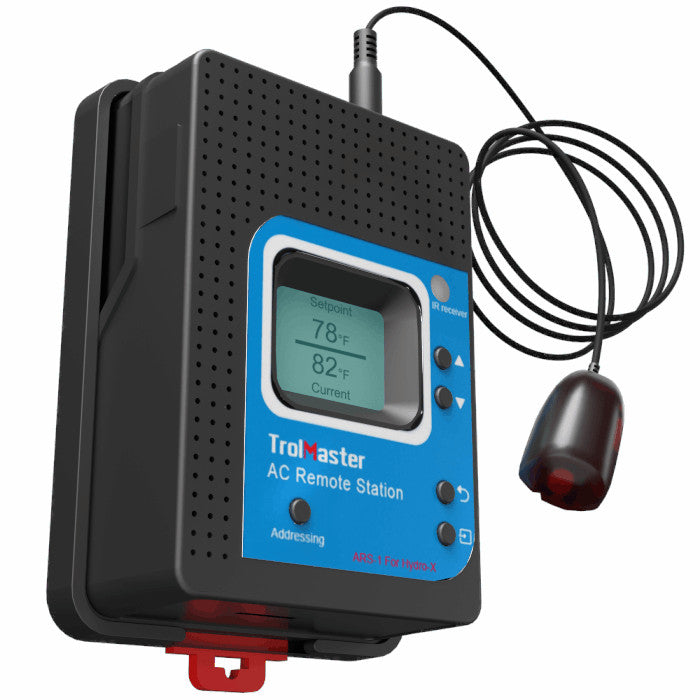

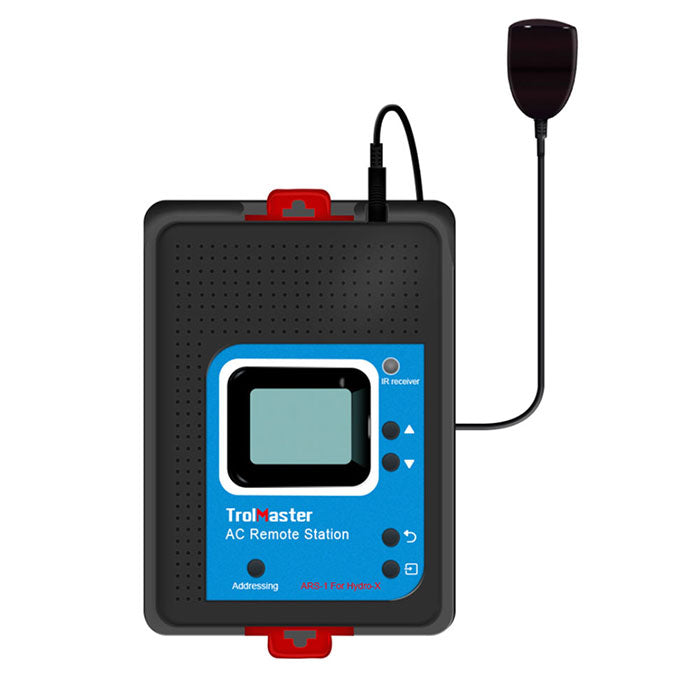

TrolMaster Hydro-X Instruction ManualARS-1 AC Remote Station offers an universal remote control for any IR (infrared) remote controlled AC such as mini-split AC system.

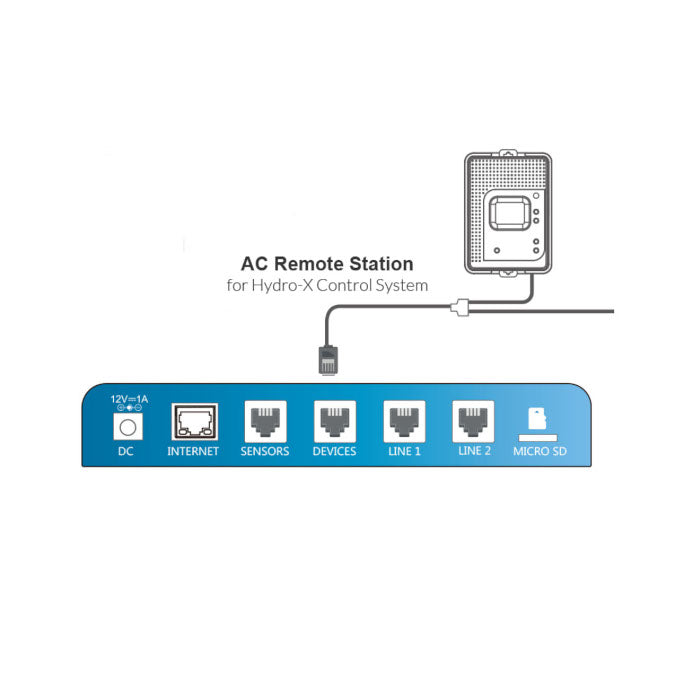

With the connection to Hydro-X Control System, user can use ARS-1 Remote Station to learn and control any remote-controlled air conditioner easily and automatically. Choose your desired temperature setpoint for the Day / Night mode (see Temperature Settings in Hydro-X’s instructions), the ARS-1 will turn on/off the air conditioner based on the setpoint in day or night mode.
Features:
- LCD Display, Easy Operation
- Seamless Connection with Hydro-X
- Micro-SD for Firmware Upgrade
- Address Assignment
Specifications:
- Output Voltage: 0~11.5V
- Maximum Current: 0.2A
- Working Environment: Temperature 32-122°F, Humidity≤90%
- Packaging Dimensions: 160mm(L) x 86mm(W) x 86mm(H)
| Brand | TrolMaster |
|---|---|
| SKU | ARS-1 |
| Weight (lb.) | 2.0000 |
| Lead Time | Ships in 2-3 Business days |
| Length (in.) | 5 |
| Width (in.) | 5 |
| Height (in.) | 5 |
| Warranty (*Spec-Box) | 3 Year |
| Hazmat? | No |
| UPC | 6970207970533 |
| Stop Sale | No |
| Prop 65 | No |
| ETL Listed | Yes |
| UL Listed | No |
| Case/Pack/Pallet Amount | No |
| Controller Function Type | No |
| Power Cord(s) Included | No |
| Power Cord Length | No |
| Exact Watts (*Spec-Box) | No |
| Amps | No |
| Voltage (*Spec-Box) | No |
| Frequency | No |
| Maintenance Information | No |
