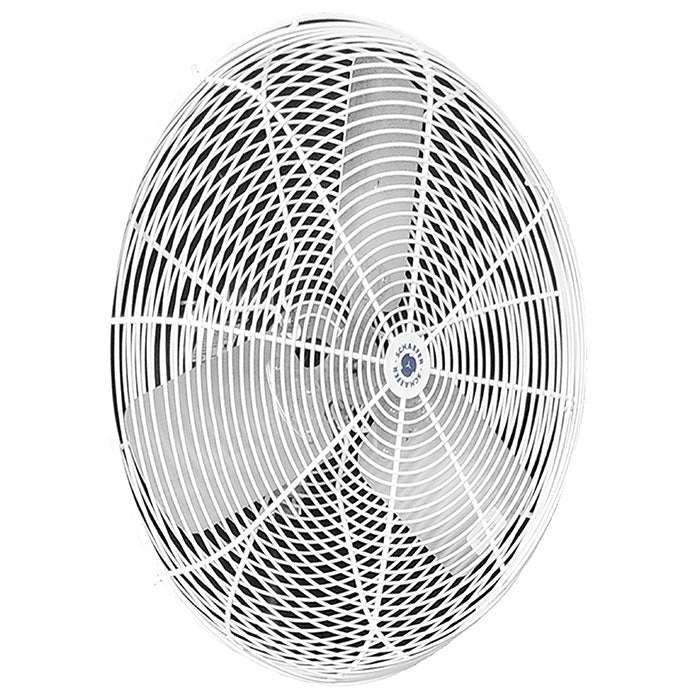

Geared for performance, Twister's oscillating motor utilizes highest quality metal gear design for unparalleled strength, greater load capacity and higher accuracy. Whether aimed at a workstation using a standard wall mount or down an aisle or assembly line using a pedestal, Twister provides the versatility and performance needed to improve worker productivity and safety.
- Schaefer oscillation technology
- 2-speed high efficiency motor with 10 foot cord
- OSHA compliant guards, available in black or white
- 90 degrees of total oscillation
- 45 degrees of fan head adjustability up or down
- Three sizes 20", 24", and 30" for optimizing air flow needs
- Low noise levels, quieter than conversational voice
- Fixed or portable mounting capabilities
- Two year warranty
- Assembled in the USA
Schafer Twister Oscillating Circulation Fan Specs
| SKU |
Fan Size |
CFM |
Phase |
Voltage |
Hz |
| HGC737004 |
20 Inch |
4,100 CFM |
1 |
115 Volt |
60 Hz |
| HGC737005 |
24 Inch |
5,400 CFM |
1 |
115 Volt |
60 Hz |
| HGC737006 |
30 Inch |
9,600 CFM |
1 |
115 Volt |
60 Hz |
| SKU |
HP |
RPM |
Blade Type |
Cfm Calculation Standard |
Drive Type
|
| HGC737004 |
1/4 |
1075 RPM |
Aluminum |
ANSI/AMCA Standard 230-99 |
Direct |
| HGC737005 |
1/4 |
1075 RPM |
Aluminum |
ANSI/AMCA Standard 230-99 |
Direct |
| HGC737006 |
1/2 |
1075 RPM |
Aluminum |
ANSI/AMCA Standard 230-99 |
Direct |
