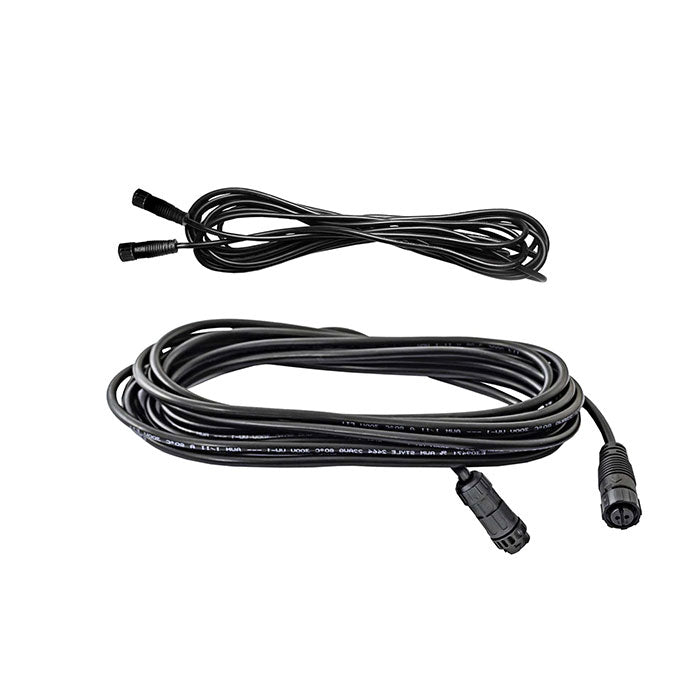

Driver + Dimming Extension Cables
This 5m long Control Link Cable is designed to daisy-chain your Photontek Controllable LED Fixtures allowing a stable and precise connection without any interference. Simply connect the M12 Self-locking male plug into the Signal Out LED structure output and the M12 Self-locking female plug into the Signal In LED structure input of the next fixture.
5m Extension Power Cable for LED driver: M19-2 Self-locking male and female injection molding with 5m extension cable (Wire Gauge: UL SJTW 2x16AWG 300V 105°C)
5m Extension Dimming Cable for LED driver: M19-2 Self-locking male and female injection molding with 5m extension cable (Wire Gauge: UL 21996 3×22AWG 300V 105℃ VW-1
Technical/Test Data:
- Withstand voltage between any two poles is 500 VAC, (2mA for power, 1mA for dimming), test time 3S, no breakdown or leakage current occurs
- Insulation Resistance:100MΩ @ 100V
- Temperature Resistance：105°C
- Working temperature: -20°C-105°C
- Storage temperature: -25°C-105°C
- IP65
- Comply RoHS
| Brand | Photontek Lighting |
|---|---|
| SKU | PTEKM0019 |
| Weight (lb.) | 1.8100 |
| Lead Time | This product ships in 3-5 business days |
| Length (in.) | 12.99 |
| Width (in.) | 4.88 |
| Height (in.) | 2.55 |
| Warranty (*Spec-Box) | 1 Year |
| Hazmat? | No |
| UPC | 5060560031024 |
| UL Listed | No |
| Prop 65 | No |
| ETL Listed | No |
| Case/Pack/Pallet Amount | No |
| ANSI | No |
| MFD | No |
| Exact Watts (*Spec-Box) | No |
| Amps | No |
| Voltage (*Spec-Box) | No |
| Power Cord Length | No |
| Fluorescent Type | No |
| Maintenance Information | No |
