Pressure Compensating Drippers

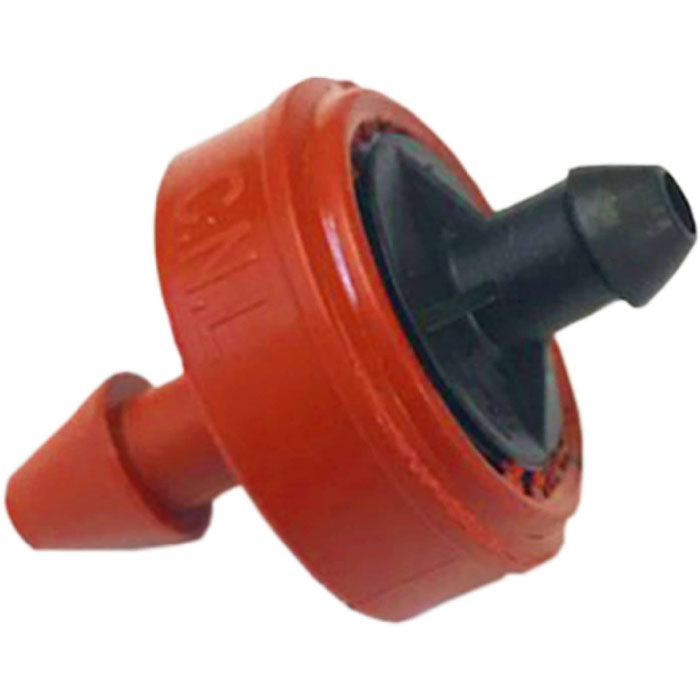

The Netafim Woodpecker Junior Drippers have a barbed outlet and CNL check valve that helps prevent low emitter drainage. The anti-siphon operation prevents contaminants from being drawn into the emitter. These Woodpecker Drippers are pressure compensating and deliver the same flow from 12 - 58 PSI. The barbed outlet fits the Netafim Super Flex UV White PE Tubing (HGC747561).
PROVIDE UNIFORM FLOW DISTRIBUTION
Pressure Compensating Drippers (PC) developed with advanced pressure compensating technology delivers a uniform flow rate even in areas with difficult topographical conditions. A unique pressure differential mechanism regulates flow and provides self-cleaning action, even while irrigating – for a clog-resistant design and high emission uniformity.
Why Pressure Compensating Drippers?
- Higher and Better Quality Yields: 100% uniformity of water and nutrient delivery over a broad pressure range ensures uniform crop yields and bigger harvests.
- Clogging Resistance: Continuous self-flushing technology ensure consistent flow-rates and flawless operation – even with harsh water.
- Easy to Scale: Number of drippers can be easily increased ensuring sufficient water to meet your crop growth rate requirements.
- Maximum Flexibility: Micro-tubes allow drippers to be positioned exactly where required, and split into several drip outlets if needed.
- Anit-Drain Mechanism (CNL Feature): Eliminates drainage & refill effect, and improves efficiency during pulse irrigation.
Product Advantages
- Patented pressure differential system maintains uniform flow rate at different inlet working pressures (within the recommended range) ensuring exact distribution of water and nutrients.
- Industry’s widest flow path and wider dripper cross-section allow large particles through the dripper’s short flow path.
- Continuous self-flushing system, even while irrigating, provides improved resistance to clogging.
- Ideal for areas with difficult topographical conditions.
Applications
- Vineyards
- Orchards
- Greenhouses and Nurseries
Specifications
- Flow rates: 0.5, 1.0 and 2.0 GPH
- Pressure compensation range: 10.15 to 58 psi
- Maximum pressure: 58 psi
- Uses 0.160” x 0.220” micro-tubing (Model EDTUBE – in black or white)
- Barb size: Inlet 0.160” – 0.170” Outlet 0.160”
- Recommended minimum filtration: 120 mesh
| Brand | Netafim |
|---|---|
| SKU | 21630-001730 |
| Weight (lb.) | 1.6000 |
| Prop 65 | No |
| Width (in.) | 0.06 |
| Height (in.) | 0.04 |
| Lead Time | This product ships in 1-2 weeks |
| Warranty (*Spec-Box) | No |
| Length (in.) | 1.378 |
| Hazmat? | No |
| UPC | No |
| UL Listed | No |
| ETL Listed | No |
| Case/Pack/Pallet Amount | 250 |
| Stop Sale | No |
| Irrigation Part Type | Drip Emitters |
| Hardware Diameter | No |
| Tubing Diameter | No |
| Power Cord Length | No |
| Amps | No |
| Voltage (*Spec-Box) | No |
| Filter Mesh Rating | No |
| Filter Type (Conf) | N/A |
| Tubing Length | N/A |
| Manifold Type | N/A |
| Emitter Spacing | No |
| Register Output Type | N/A |
| Maintenance Information | No |
