Netafim Fertilizer Meter Spec. SheetNetafim Fertilizer Flow Meter
Light-Weight and Corrosion Resistant Meters Deliver a High Level of Accuracy
PRODUCT ADVANTAGES
- Both Polypropylene and PVC meters are light-weight and deliver a high level of accuracy, ± 2%.
- Only one moving part, the impeller, is in contact with the liquid for minimum wear and the utmost reliability.
- Magnetically driven sealed register is guaranteed not to accumulate moisture or fog.
- Dry contact electrical output driven by a magnetic coupling that activates a reed switch creating a pulsed output for communicating with control and monitoring equipment.
- Corrosion resistant plastic components.

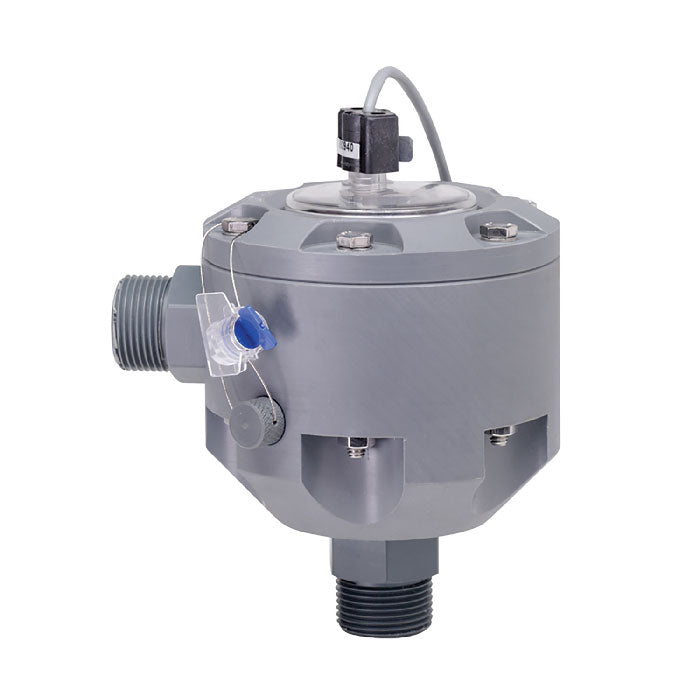

- PVC body is an angle type multi-jet meter. The multijet design assures an equally distributed load on the impeller minimizing wear and maintaining accuracy.
- No straight pipe installation requirements.
APPLICATIONS
- 8" and 10" Straight Pipe Installation Requirement: 10 x D upstream and 5 x D downstream
SPECIFICATIONS
PVC
- Size: 1"
- Maximum Working Pressure: 145 psi
- Maximum Liquid Temperature: 122° F
- Body Material: PVC
- Connections: Threaded
- Pulse Output: 1.0
POLYPROPYLENE (PLASTIC)
- Size: 3/4"
- Maximum Working Pressure: 72.5 psi
- Maximum Liquid Temperature: 122° F
- Body Material: Polypropylene
- Connections: Threaded
- Pulse Output: 0.1 or 1.0
