Netafim Air Vent Combo Spec. SheetNetafim Combination Air/Vacuum and Continuous Acting Air Vents
Proven design provides more air release capacity than other vents of similar size.
Applications
- For discharge and intake of large volumes of air at pump and filtration stations, along mains and at the end of mainlines.
- For continuous air release at high points in pipe network or upstream of manifolds.
- Every 1,500 feet along mainlines.

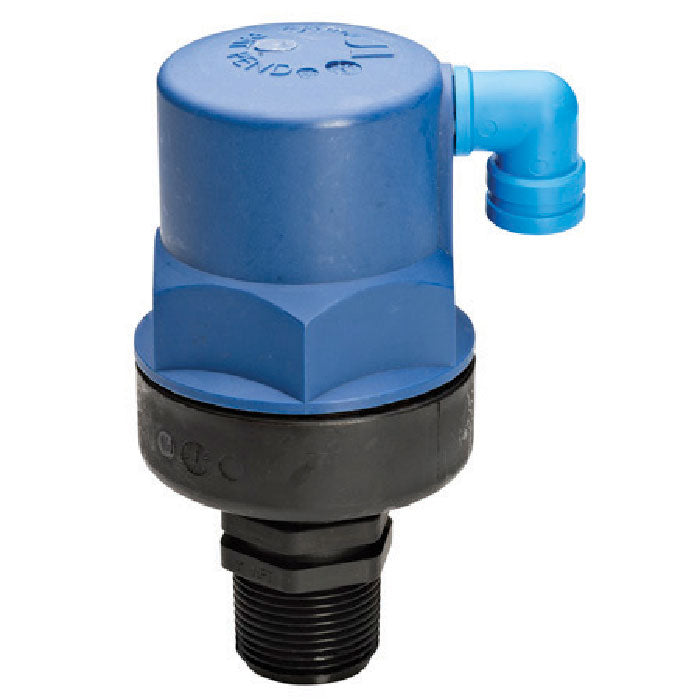

1″ and 2″ Combination Air/Vacuum and Continuous Acting Air Vents
Product Advantages
- Ensures maximum protection of the irrigation system with proper sizing and placement.
- Aeordynamic float design ensures vent closure as water fills the system, remains open when air pressure reaches 12 psi.
- Large capacity vents dampen water hammer preventing pipes and fittings from cracking or bursting.
- Unique rolling seal feature allows gradual opening, closing and self-cleaning.
- Made of corrosion-resistant UV protected nylon – no metal parts to rust or corrode, no need for spare parts.
Specifications
Maximum Operating Pressure:
- 1” and 2” Nylon Combination: 250 psi
- 1” and 2” Nylon Combination: 150 psi
| Brand | Netafim |
|---|---|
| SKU | 70561-001240 |
| Weight (lb.) | 0.6600 |
| Prop 65 | No |
| Width (in.) | 8.23 |
| Height (in.) | No |
| Lead Time | This product ships in 1-2 weeks |
| Warranty (*Spec-Box) | No |
| Length (in.) | 7.09 |
| Hazmat? | No |
| UPC | No |
| UL Listed | No |
| ETL Listed | No |
| Case/Pack/Pallet Amount | No |
| Stop Sale | No |
| Irrigation Part Type | Air Vents |
| Hardware Diameter | No |
| Tubing Diameter | No |
| Power Cord Length | No |
| Amps | No |
| Voltage (*Spec-Box) | No |
| Filter Mesh Rating | No |
| Filter Type (Conf) | N/A |
| Tubing Length | N/A |
| Manifold Type | N/A |
| Emitter Spacing | No |
| Register Output Type | N/A |
| Maintenance Information | No |
