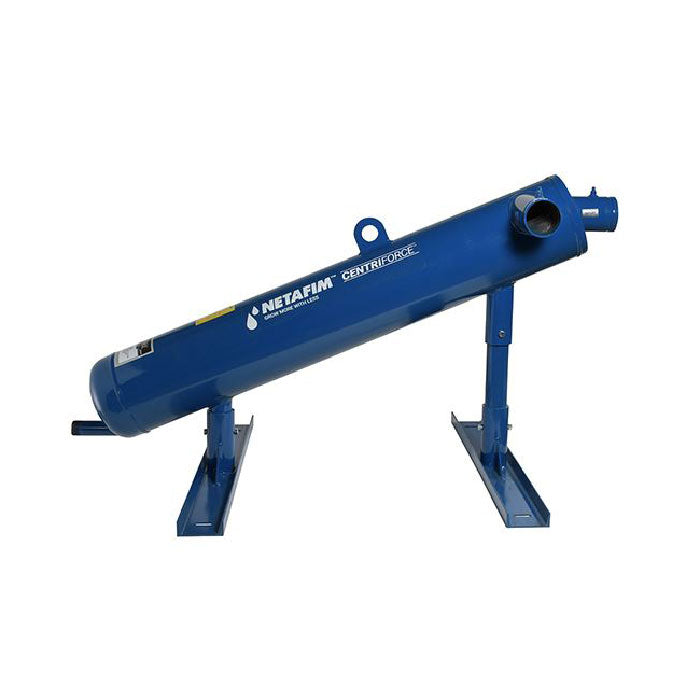

Netafim Centriforce Spec. SheetCentriForce™ SP SAND SEPARATOR
Saving you labor, energy and maintenance.
The CentriForce™ SP series is designed to allow for easy removal of sand, dirt and silt from groundwater and to provide superior protection for irrigation systems thanks to a unique patented Centrifugal Separator technology.
Benefits & Features
- Superior Separation – Independently tested to remove over 98% of settleable solids commonly found in groundwater down to 74 microns (200 mesh) at 2.6 SG
- Low and steady pressure loss – CentriForce™ Separators operate at a consistent pressure loss as low as 5 – 12 psi (0.34 – 0.83 bar), sizes ¾” – 3”, and 3 – 12 psi (0.21 – 0.83 bar), sizes 4” – 10”.
- Wide range of diameters covering flow rates up to 2,450 gpm (556 m3 /hr) for single unit installations. Higher flow rate applications can be achieved by manifolding additional Separators in parallel.
Applications
- Irrigation systems irrigating with well and/or any other groundwater
- Small to large system applications, side-stream installations, and individual equipment protection
- For removal of sand, grit, silt, and other fine solids from the water
| Brand | Netafim |
|---|---|
| SKU | NF-CSEP |
| Height (in.) | No |
| Width (in.) | No |
| Length (in.) | No |
| Warranty (*Spec-Box) | No |
| Hazmat? | No |
| UPC | No |
| N-P-K | N/A |
| Nutrient Application | N/A |
| Nutrient Type | N/A |
| OMRI Certified | N/A |
| Nutrient Material Type | N/A |
| Maintenance Information | No |
