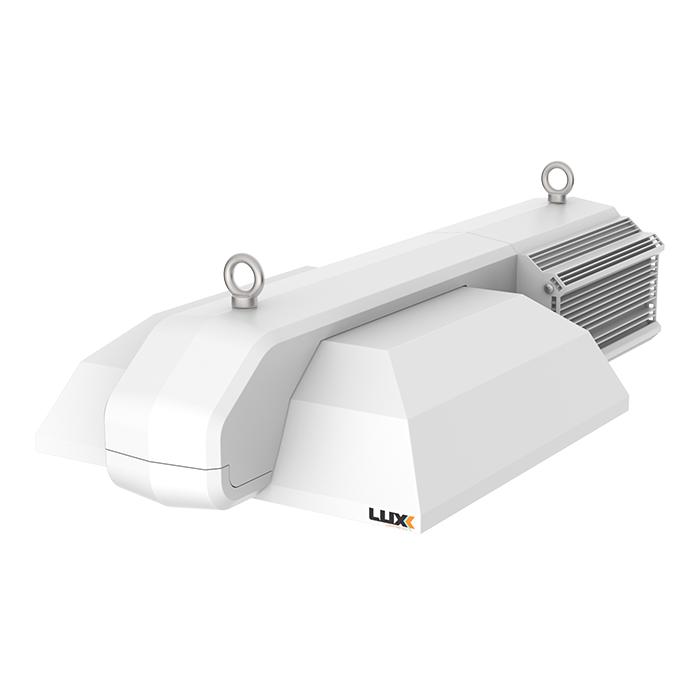

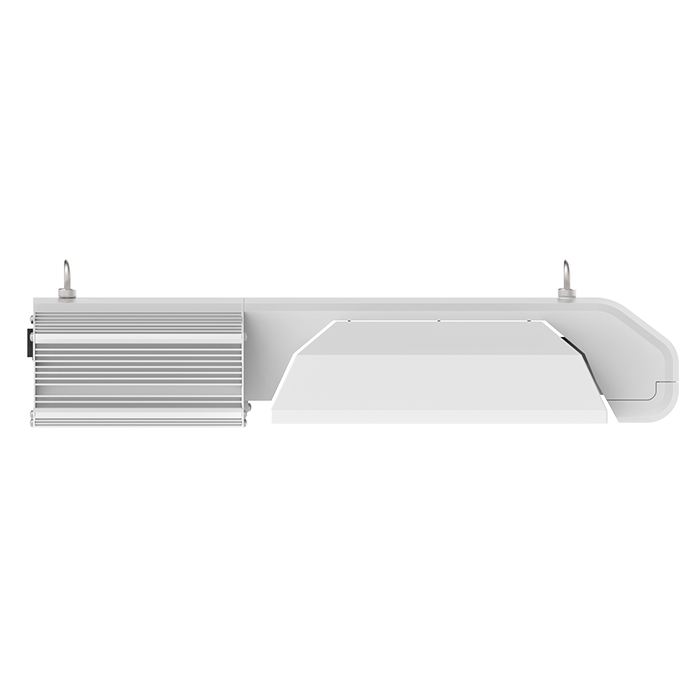

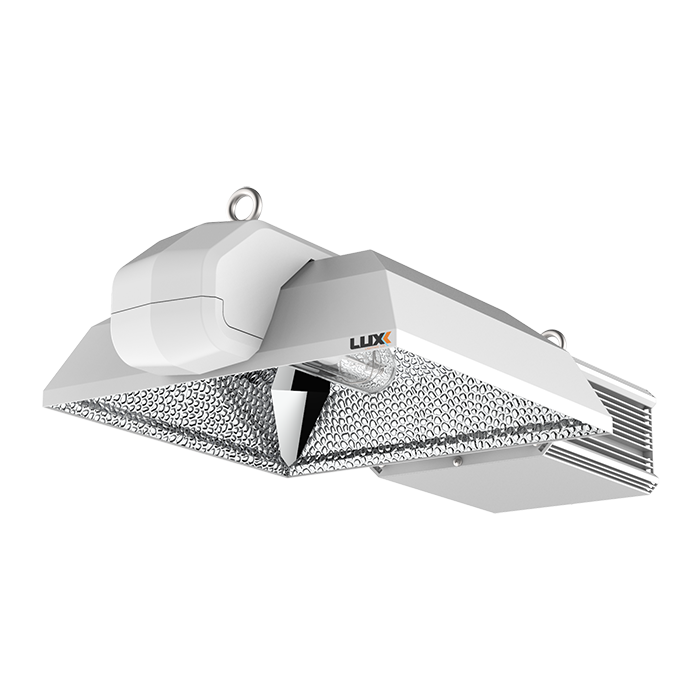

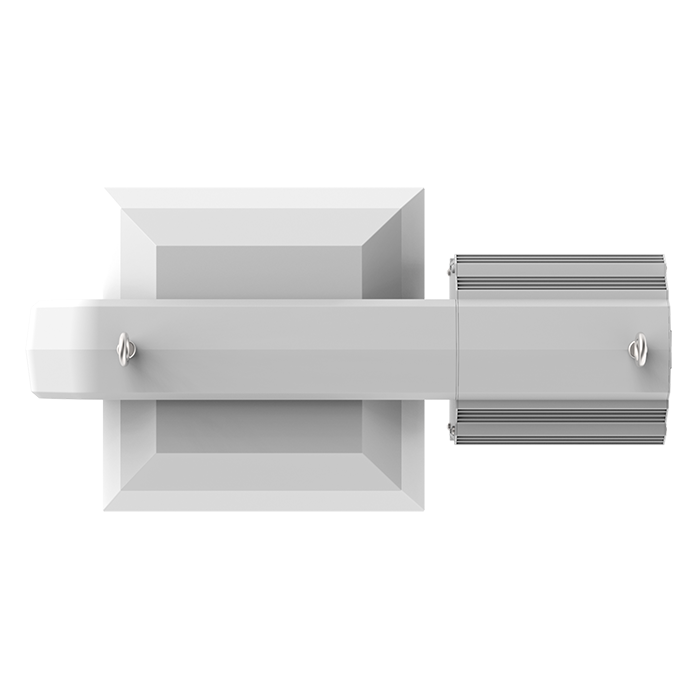

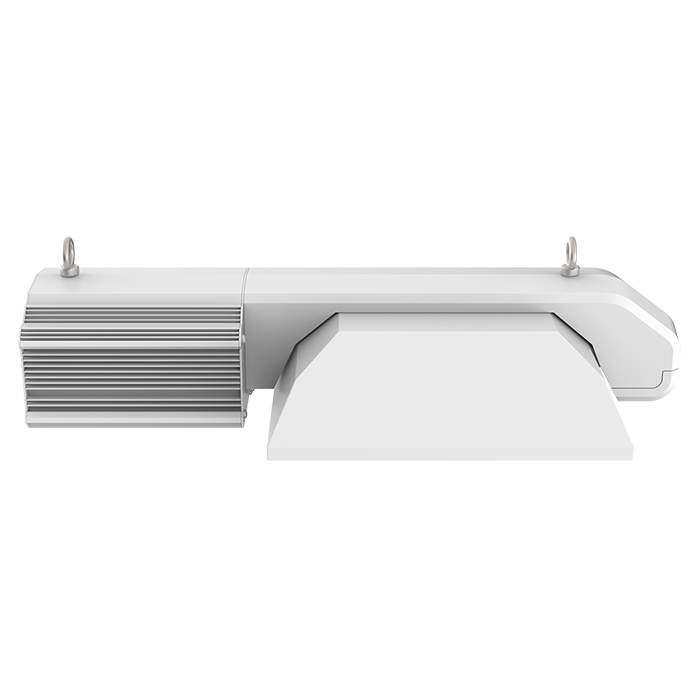

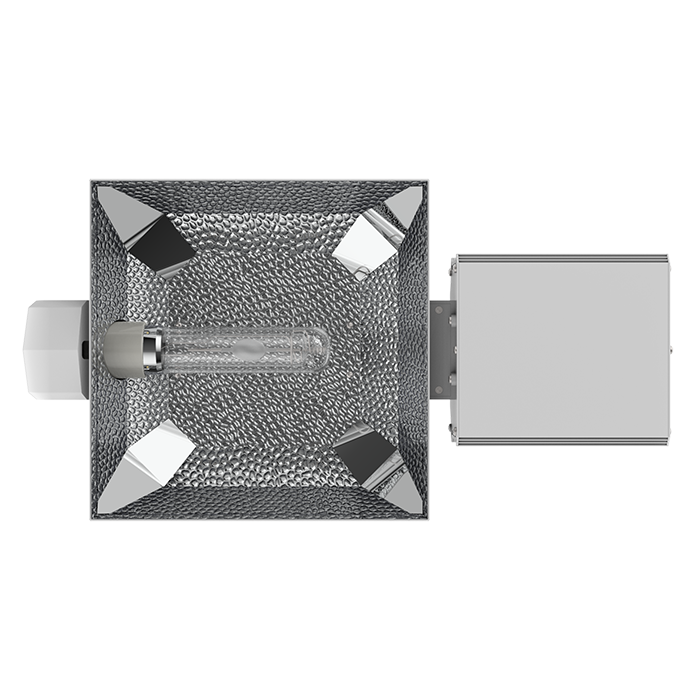

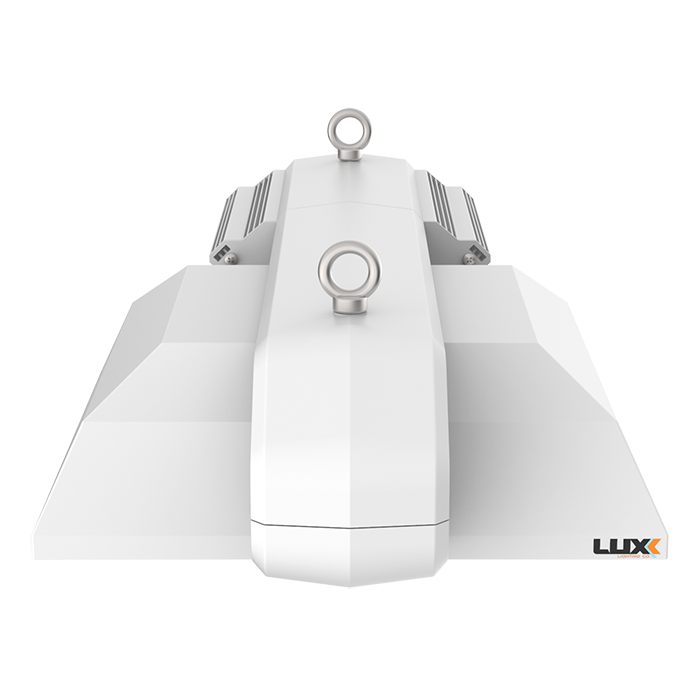

Equipped With Luxx's Legendary 315 Watt 4200K Lamps, The CMH 315 Watt Fixture From Luxx Is The Perfect Light To Fortify Your Plants During The Propagation & Veg Cycles Of Your Grow
The Luxx Lighting 315W CMH fixture utilizes Low-Frequency Squarewave technology. The Luxx 315w CMH delivers full-spectrum light with a Color Rendering Index (CRI) of >97. Simulating natural sunlight and allowing your plants to develop to their full genetic potential.
These units are a great option for single or double-stacked 4' x 8' trays, running 2 fixtures on a 4' x 4'.
Fixture Features
- Low-frequency squarewave technology
- Over 98% high reflective aluminum
- Operates on a 120/208/240/277v power supply
- 10ft 240V power cord (NEMA 6-15P) standard
- Controller compatible (SOLD SEPARATELY)
- 315W CMH Luxx Lamp 4200K Full Spectrum Veg/Flower lamp included
- 3 Year warranty.
Bulb Features
- Energy-efficient. High par value
- Full-spectrum 4200K
- Superior color quality
- Reduced operating heat
- Increased plant resin production
- Rated life span 20,000 hours
Take Control Of Your Lights, Connect Up To 480 Luxx Fixtures!
The Luxx NX-1 Lighting Controller is a simple and powerful system for controlling your lighting equipment. It is compatible with all Luxx Lighting fixtures. A group of up to 40 Luxx Lighting fixtures can be connected to both the main RJ9 port and the auxiliary RJ9 port of the controller.
This mighty controller has many functions and features to ensure lighting is one less thing you need to worry about. Some of the features include; 24 Hour Timer (on/off with inverse function), Auto-dim at Set temp, 2 temp sensors (for two rooms), as well as two outputs to control up to 80 ballasts!
Are you running more than 80 lights? With the Luxx NX-200, used with the NX-100, you can run up to 200 extra lights per channel! This gives you the ability to run 480 lights total (240 per channel.)
Luxx 315 Watt CMH Performance
| 120-240 Volt Performance | |
|---|---|
| Input Voltage | 120/240 Volt |
| Input Current | 2.89 Amps |
| Input Power | 343 Watts |
| Min Power Factor | >0.95% |
| THD | < 10% |
| Power Cord (120 Volt Version) | Standard 120 Volt Plug (10 Feet) |
| Power Cord (240 Volt Version) | NEMA 6-15P Plug (10 Feet) |
| Rated Mains Voltage | 120-240 Volts |
| Voltage Range | 187-305V |
| Mains Frequency | 50/60Hz |
| Operation Frequency | 140-220Hz |
| 277 Volt Performance | |
|---|---|
| Input Voltage | 277 Volt |
| Input Current | 1.3 Amps |
| Input Power | 343 Watts |
| Min Power Factor | >0.95% |
| THD | <10% |
| Power Cord | NEMA L7-15P Plug (10 Feet) |
| Rated Mains Voltage | 120-277 Volt |
| Voltage Range | 108-305 Volt |
| Mains Frequency | 50/60Hz |
| Operation Frequency | 140-220Hz |
Luxx 315W CMH Physical Specs
| 240 Volt Specs | |
|---|---|
| Ballest Length | 171mm 6.75” |
| Ballast Width | 152mm 6” |
| Ballast Height | 101mm 4 |
| Hood Length | 262mm 10.3” |
| Hood Width | 262mm 10.3” |
| Total Length | 500mm 19.75” |
| Total Weight | 3.51kg 7.75lbs |
| Brand | Luxx Lighting |
|---|---|
| SKU | LUXX-315CMH |
| Height (in.) | No |
| Width (in.) | No |
| Length (in.) | No |
| Warranty (*Spec-Box) | No |
| Hazmat? | No |
| UPC | No |
| N-P-K | N/A |
| Nutrient Application | N/A |
| Nutrient Type | N/A |
| OMRI Certified | N/A |
| Nutrient Material Type | N/A |
| Maintenance Information | No |
