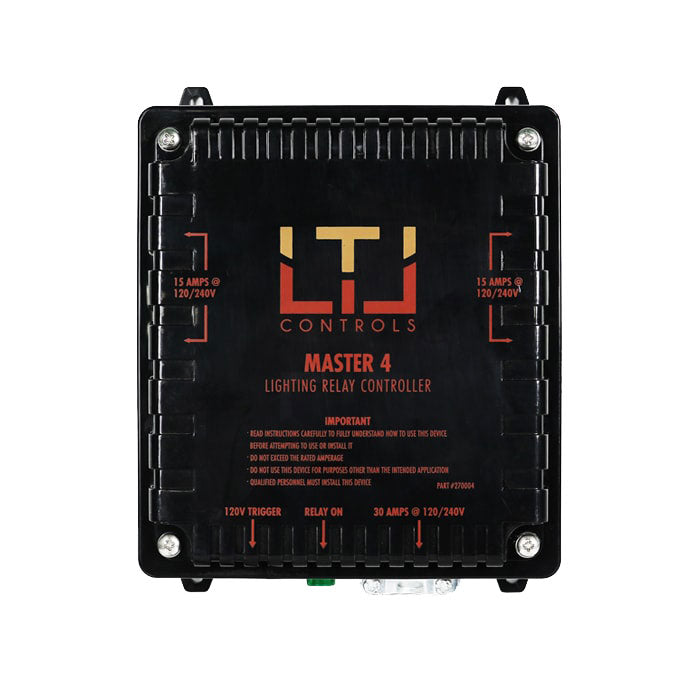

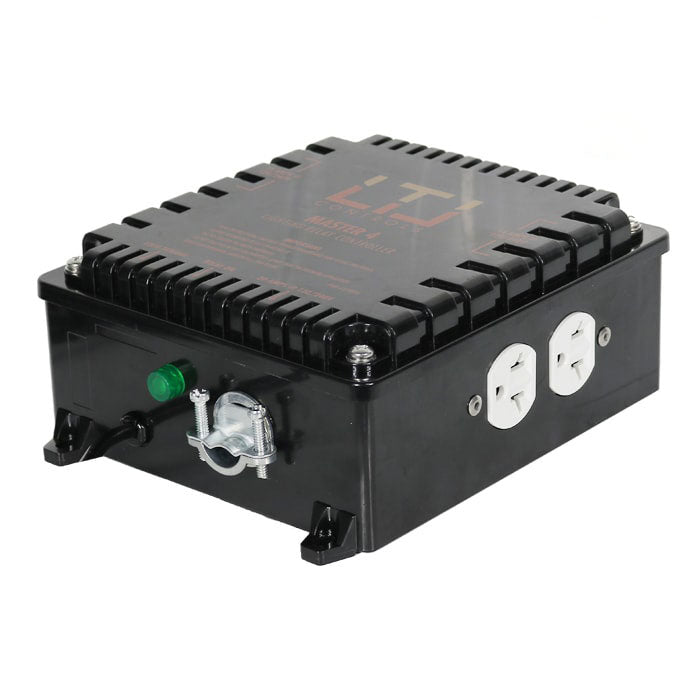

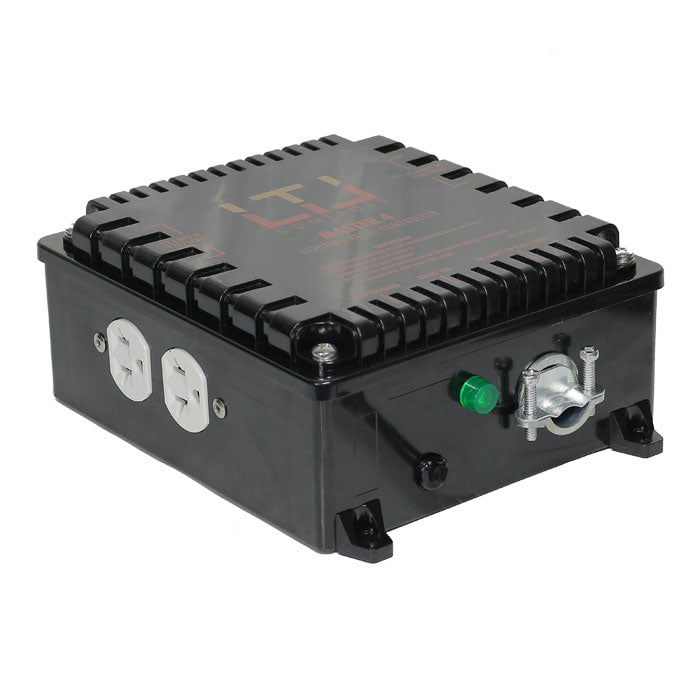

LTL Controls Master 4 ManualThe Master 4 by LTL Controls is the safest and easiest way to control a 4 HID light setup.
This controller has the capability to run a maximum of (4) 1000 Watt ballasts using 120 Volt power & 240 Volt power, with a maximum relay amperage of 30 Amps, and includes a 120 Volt trigger cable which can be connected to a 120 Volt timing device.
It is recommended to consult a certified electrician before installing or using this controller, especially if you are unfamiliar with electrical wiring and circuits. (120 volt & 240 volt Universal Plug)
Features:
- 120 Volt Trigger Cable
- Can be connected to 120 Volt timing device
- Maximum relay amperage of 30 amps
Technical specifications:
- Main Power Voltage: 120 or 240 volt
- Receptacle Type: Universal
- Maximum Lighting Wattage: 4000 (1000/outlet)
- Maximum Relay Amperage: 30 Amps
- Operating Temp Range: 32-110 °F
- Operating Humidity Range: 0-99% (non-condensing)
- Minimum Relay Operations: 100,00 @ full load
| Brand | LTL Controls |
|---|---|
| SKU | 270004 |
| Weight (lb.) | 3.8000 |
| Length (in.) | 9 |
| Prop 65 | No |
| Width (in.) | 11 |
| Height (in.) | 7 |
| Warranty (*Spec-Box) | No |
| Lead Time | This product ships in 3-5 business days |
| Hazmat? | No |
| UPC | 816731015516 |
| UL Listed | No |
| ETL Listed | No |
| Case/Pack/Pallet Amount | No |
| Number of Lights Controlled | 4 |
| Has Photocell | No |
| Voltage (*Spec-Box) | No |
| Amps | No |
| Exact Watts (*Spec-Box) | No |
| Frequency | No |
| Power Cord(s) Included | No |
| Power Cord Length | No |
| Maintenance Information | No |
