King Electric Simplstat Electronic Thermostat Instructions King Electric Simplstat Electronic Thermosta SpecsThe King Electric Clear Touch Non-Programmable Thermostat

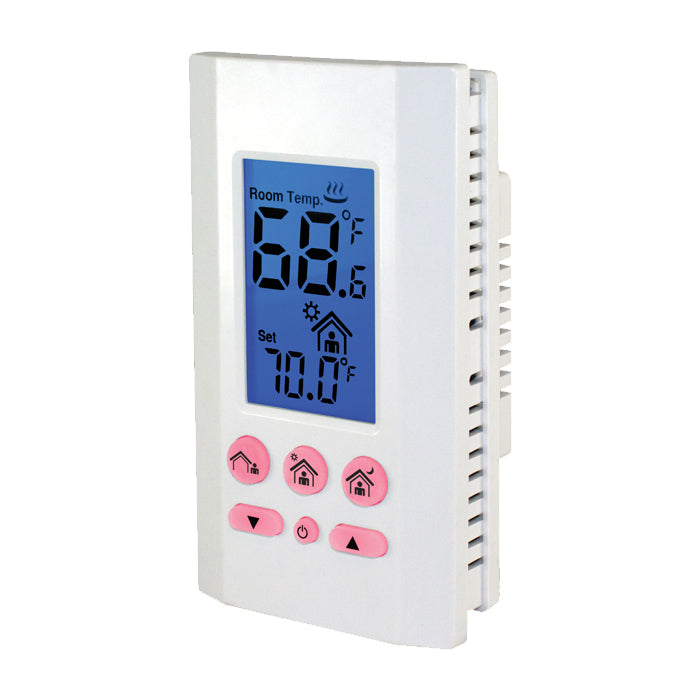

The SimplStat Electronic Thermostat with Personalized Presets. No Programming Required. Featuring a user-friendly interface of 3 oversized, back-lit preset temperature buttons that can be personalized (Home / Away / Sleep). Simply press the custom comfort preset button that applies and have confidence that the room will reach optimal temperature within minutes. Combining industry leading temperature sensing technology with a modern sleek design, King's K700E series achieves lower energy consumption with higher comfort levels by reducing temperature swings as compared to economy models.
Featuring a user-friendly interface of 3 oversized, back-lit preset temperature buttons that can be personalized (Home / Away / Sleep). Simply press the custom comfort preset button that applies and have confidence that the room will reach optimal temperature within minutes.
The King Electric SimplStat Electronic Thermostat Features:
- 3 Programmable Presets (Home / Away / Sleep)
- Single Pole Battery Powered or Double Pole Line Voltage
- Back-Lit Display For Easy Viewing
- Temperature Range 41° - 95°F (5° - 35°C)
- Electronic Sensing For Accurate Temperature Control (±1°F)
- For Use On Baseboard, Fan Forced & Radiant Electric Heaters
- Large Back-Lit Buttons Allow Easy Adjustment
- Mounts Directly To A 2x4 inch Vertical Electrical Outlet Box
- ETL Certified For USA and Canada
- 2-year limited warranty
- Temperature Range: 41° - 95°F (5° - 35°C) Accuracy: +1° F
- Max Power: 1920W @ 120VAC (16A) *K701E-B Only
- Max Power: 3328W @ 208VAC (16A)
- Max Power: 3840W @ 240VAC (16A)
- Sensing Element: Electronic
The King Electric SimplStat Electronic Thermostat Specs:
| Brand | King Electric |
|---|---|
| SKU | K702E-2 |
| Weight (lb.) | 1.0000 |
| Lead Time | This product ships in 3 Business Days |
| Length (in.) | 5 |
| Width (in.) | 2.75 |
| Height (in.) | 2 |
| Warranty (*Spec-Box) | 2 Year Limited Warranty |
| Hazmat? | No |
| UPC | 093319103937 |
| Stop Sale | No |
| Prop 65 | No |
| Case/Pack/Pallet Amount | No |
| Controller Function Type | Temperature Control |
| CO2 Sensor Type | No |
| CO2 Function | No |
| Remote Sensor | No |
| Number of Zones Controlled | Single Zone |
| Humidity Setting Range | No |
| Temp Setting Range | 41º - 95ºF |
| Has Photocell | Yes |
| Display Readout Type | No |
| Amps | No |
| Voltage (*Spec-Box) | 240 Volts |
| Frequency | No |
| Power Cord Length | No |
| ETL Listed | Yes |
| UL Listed | No |
| Sensor Type | N/A |
| Maintenance Information | No |
