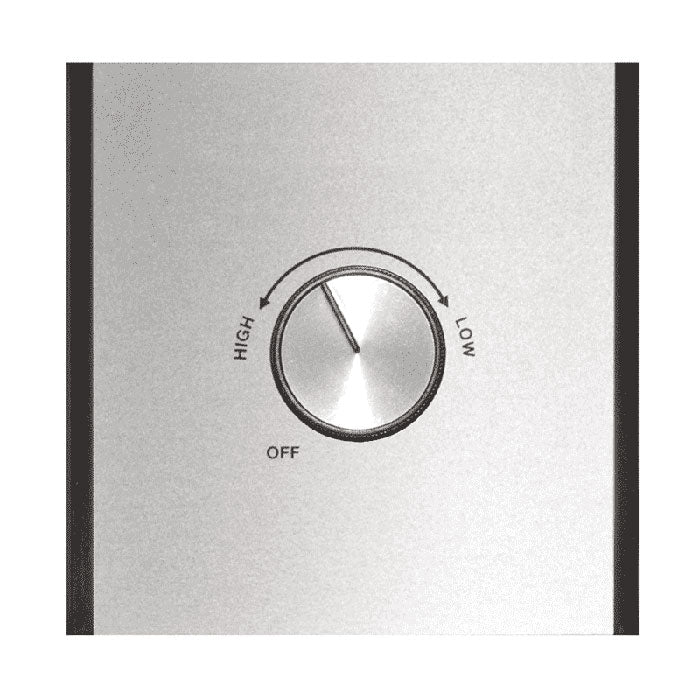

J&D Manufacturing Fan Speed Controller Spec Sheet J&D Manufacturing Fan Speed Controller InstructionsWall mounted variable fan speed controllers
These economical manual variable fan speed controllers are full-wave phase control circuitry to minimize power loss, reducing energy requirements while you control your variable speed fan. The total accumulated amp draw must not exceed the listed amps for each control.
For all installations the total accumulated amp draw must not exceed the listed amps for that control.
The variable fan speed controllers come in 4 options:
- CN25 - Speed control, 120V, 2.5 amps
- CN5 - Speed control, 120V, 5.0 amps
- VFT130144 - Speed control, 120V, 10.0 amps
- CN15 - Speed control, 120V, 15.0 amps
Features of the variable fan speed controllers
- Use for Shaded Pole, Permanent Split Capacitor (PSC), & Universal AC/DC motors
- Built in ON/OFF AC line switch
- Minimum speed trimpot
- RFI noise suppression filter (provides RFI and EMI suppression)
- Flame retardant ABS enclosure
| Brand | J&D Manufacturing |
|---|---|
| SKU | CN15 |
| Weight (lb.) | 1.0000 |
| Lead Time | Ships within 2 weeks |
| Length (in.) | 3 |
| Width (in.) | 5 |
| Height (in.) | 6 |
| Warranty (*Spec-Box) | 1 Year |
| Hazmat? | No |
| UPC | 737623666404 |
| Stop Sale | No |
| Prop 65 | No |
| Case/Pack/Pallet Amount | No |
| Controller Function Type | Ventilation Control |
| CO2 Sensor Type | No |
| CO2 Function | No |
| Remote Sensor | No |
| Number of Zones Controlled | No |
| Humidity Setting Range | No |
| Temp Setting Range | No |
| Has Photocell | No |
| Display Readout Type | No |
| Amps | 15 Amps |
| Voltage (*Spec-Box) | 120 Volts |
| Frequency | No |
| Power Cord Length | No |
| ETL Listed | No |
| UL Listed | Yes |
| Sensor Type | N/A |
| Maintenance Information | No |
