ILUMINAR LED Clone Light Spec SheetEnergy-Efficient Cloning at Any Scale
Drive consistent canopies, crop quality, and productivity with a continuous supply of healthy, homogenous, and vigorous clones. The new LED Clone 18W twin-pack contains two energy-efficient LED bars, each one ideal for illuminating two full-sized propagators or equivalent cloning machines.
Using just 33% of the energy required by similar high-output T5 fluorescent tubes and lasting over twice as long, LED Clone bars deliver a superior 9000K spectrum, specially tailored to promote quick rooting, overall plant health, and vigorous early growth in both stem cuttings and seedlings.
Growers enjoy long-term reliability and peace of mind with ILUMINARs 5-Year warranty and IP66 rating for use in wet environments. Each LED Clone bar is rated for 54,000+ hours use.

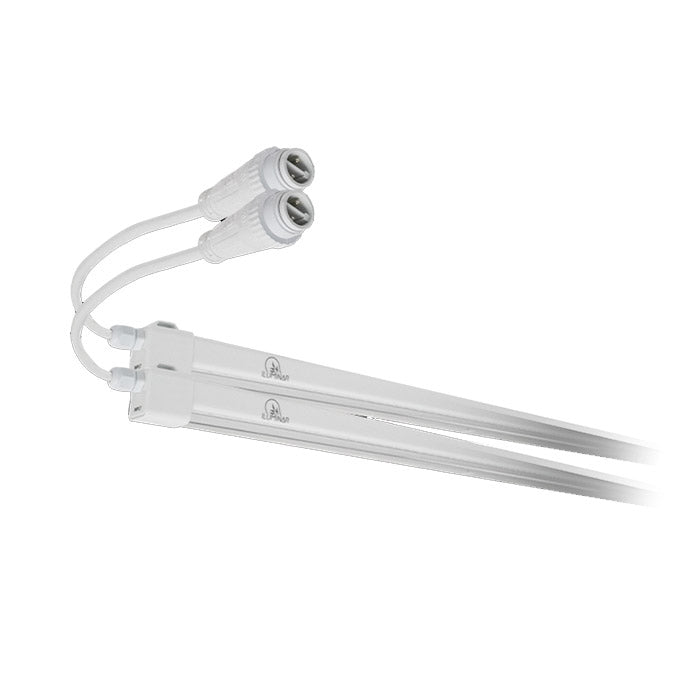

Each twin-pack comes with four hanging clips and zip tie slots for quick and easy installation
Features & Benefits
- 2 LED Clone Bars per pack
- Color Temperature: 9,000K
- Efficacy 1.9 μmol/J
- IP66 Wet-Rated
- Input Power: 18W (18W per bar)
- Each LED Clone Bar can illuminate two full-sized propagators
- Perfect for multi-level cloning. Minimum recommended hanging distance: 6” (15 cm)
- All hanging equipment is included
Specifications for Iluminar Clone Bar
| Input Voltage | 120-277V |
|---|---|
| Input Current | 0.15A - 0.065A |
| Input Power | 18 Watt |
| Color Temperature | 9,000K |
| PPF | 35 µmol/s |
| Efficacy | 1.9 µmol/J |
| Ambient Temperature | 0 - 35°C / 32-95°F |
| Min Power Factor | 0.9 |
| LED Lifespan (90% of Life) | 54,000+ hours |
|---|---|
| Power Cord 120V | 4ft (NEMA 5-15P) |
| Rated Voltage | 120-277V |
| Voltage Range (+/-10%) | 100-277V |
| Frequency | 50 / 60Hz |
| Operation Frequency | Direct-Current Input |
| Waterproof Rating | IP66 |
| Minimum Mounting Height | >6" Above the canopy |
| Brand | Iluminar |
|---|---|
| SKU | IL-CLN18 |
| Weight (lb.) | 10.0000 |
| Prop 65 | No |
| Length (in.) | 44.1 |
| Width (in.) | 4 |
| Height (in.) | 4 |
| Warranty (*Spec-Box) | 5 Year |
| Lead Time | This product ships in 1-2 business days |
| Hazmat? | No |
| UPC | No |
| Case/Pack/Pallet Amount | 2 |
| Lighting Type | LED |
| LED Light Spectrum | Full Spectrum |
| LED Fixture Type (New) | Clone Light, Bar/Strip |
| LED Fixture Type (Old - DNU) | No |
| LED Features | No |
| Est. Electricity Cost /mo (*Spec-Box) | $0.77 |
| Exact Watts (*Spec-Box) | 18 Watts |
| HID Equivalent | No |
| Suggested Hanging Height | >6" Above the canopy |
| LED Diode Type | No |
| LED Driver Type | No |
| PAR Efficiency | 1.9 µmol/J |
| Total PPF Output | 35 µmol/s |
| Power Factor | 0.9 |
| Daisy Chain | No |
| Voltage (*Spec-Box) | 120-277 Volts |
| Amps | 0.15 Amps - 0.065 Amps |
| Frequency | 50/60 Hz |
| Power Cord(s) Included | Yes - 120 Volt |
| Power Cord Length | 4 Feet |
| Coverage Area (*Spec-Box) | Veg: 1' x 4' |
| Grow Light Certifications | IP66 Rated, ETL Listed |
| ETL Listed | Yes |
| UL Listed | No |
| Dimming Option | No |
| Maintenance Information | No |
