Horticulture Lighting Group Product Documents

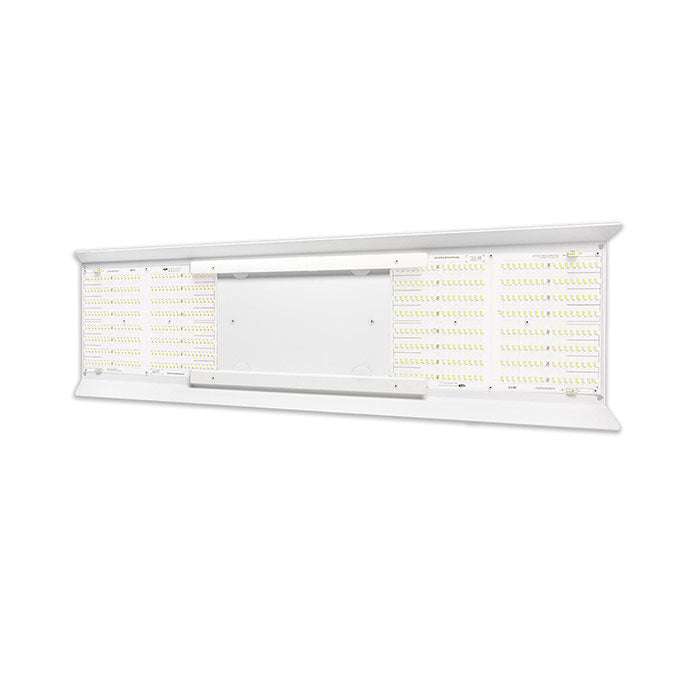

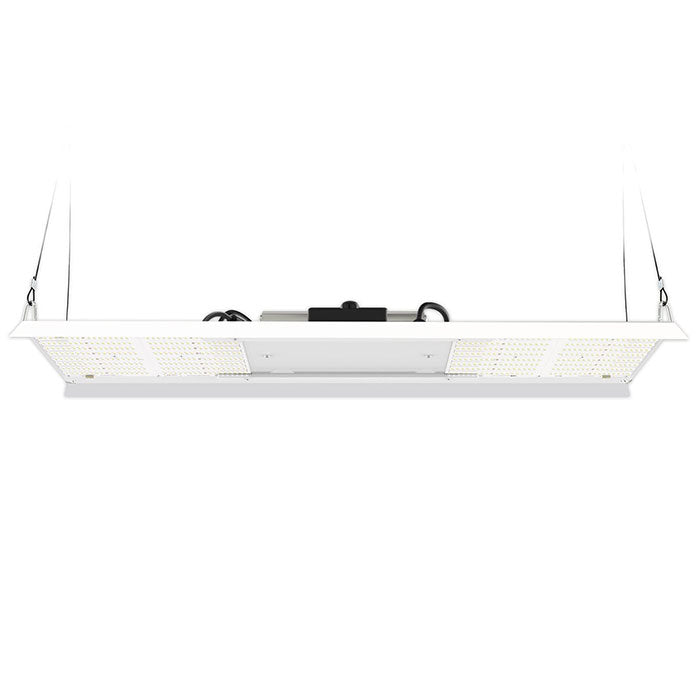

HLG 320 Rspec FR is a lamp designed for horticulture use in indoor spaces. The dimmable design with integrated reflectors improves photon delivery to the canopy, resulting in better quality yields even at lower levels of canopy, and is ideal for 2’ x 4’ or 3’ x 5’ coverage in a grow tent.

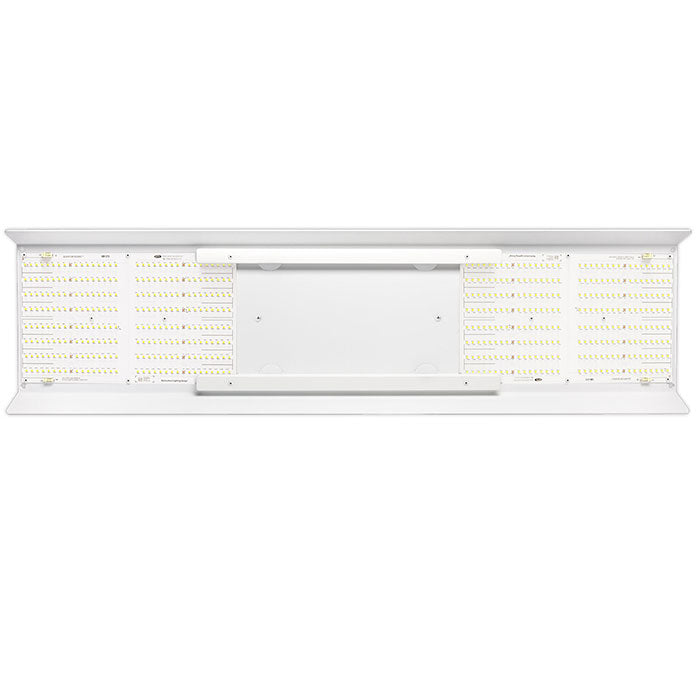

This lamp is powered by two QB272 Quantum Boards® and includes 660nm deep red along with the 730nm far-red spectrum. This lamp produces over 746 PPF output with photon efficacy of 2.47 µmol/joule.
Top Features
- Integrated reflectors improve PPFD levels at all levels of canopy
- Ideal for Flowering
- Dimmable power supply included
- 3 Year Warranty
Specifications
| Power | 0-320 Watts |
|---|---|
| Voltage Range | 120-277 VAC 50-60Hz |
| Flowering Footprint/ Canopy Distance | 2'x4': 3'x5' / 24" Flower; 12" Veg |
| System PPF Efficacy | 2.47 µmol/J |
| Total output | 746 µmol/s |
|---|---|
| Dimensions | 35" x 9.5" x 3.25" | 10 lbs. |
| Warranty | 3 Years |

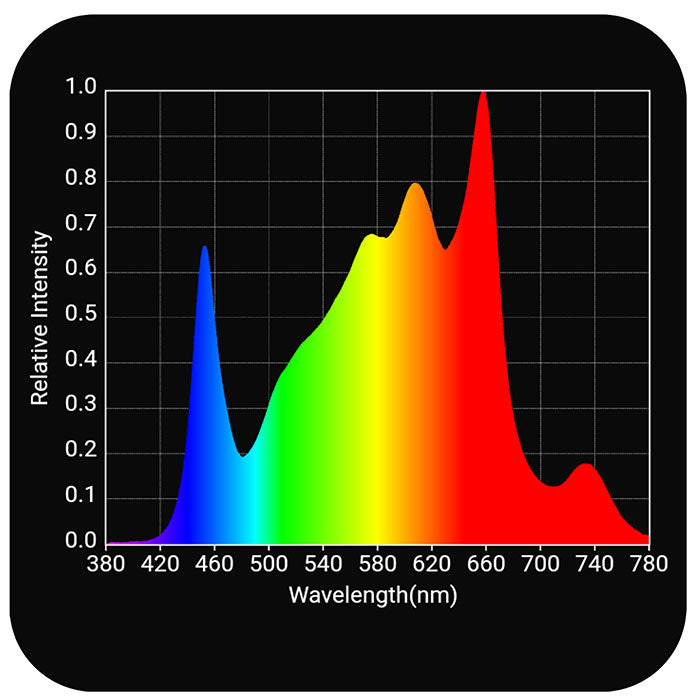

| Spectrum | Full Spectrum White & Far-Red |
| Brand | Horticulture Lighting Group |
|---|---|
| SKU | HLG-320-FAR-RED |
| Weight (lb.) | 10.0000 |
| Prop 65 | No |
| Length (in.) | 36 |
| Width (in.) | 10 |
| Height (in.) | 4 |
| Warranty (*Spec-Box) | 3 |
| Lead Time | This product ships in 1-4 business days |
| Hazmat? | No |
| UPC | No |
| Case/Pack/Pallet Amount | No |
| Lighting Type | LED |
| LED Light Spectrum | Full Spectrum |
| LED Fixture Type (New) | Panel |
| LED Fixture Type (Old - DNU) | No |
| LED Features | Manual Dimming Knob, Dimmable *with Controller |
| Est. Electricity Cost /mo (*Spec-Box) | $13.82 |
| Exact Watts (*Spec-Box) | 320 Watts |
| HID Equivalent | No |
| Suggested Hanging Height | 24" Flower; 12" Veg |
| LED Diode Type | No |
| LED Driver Type | Meanwell Driver |
| PAR Efficiency | 2.47 μmol/J |
| Total PPF Output | 746 μmol/s |
| Power Factor | No |
| Daisy Chain | No |
| Voltage (*Spec-Box) | 120/277 Volts |
| Amps | No |
| Frequency | No |
| Power Cord(s) Included | Yes - 120 Volt |
| Power Cord Length | No |
| Coverage Area (*Spec-Box) | Veg: 3' x 5'; Flower: 2' x 4' |
| Grow Light Certifications | No |
| ETL Listed | No |
| UL Listed | No |
| Dimming Option | No |
| Maintenance Information | No |
