Harvest Right Product Documents

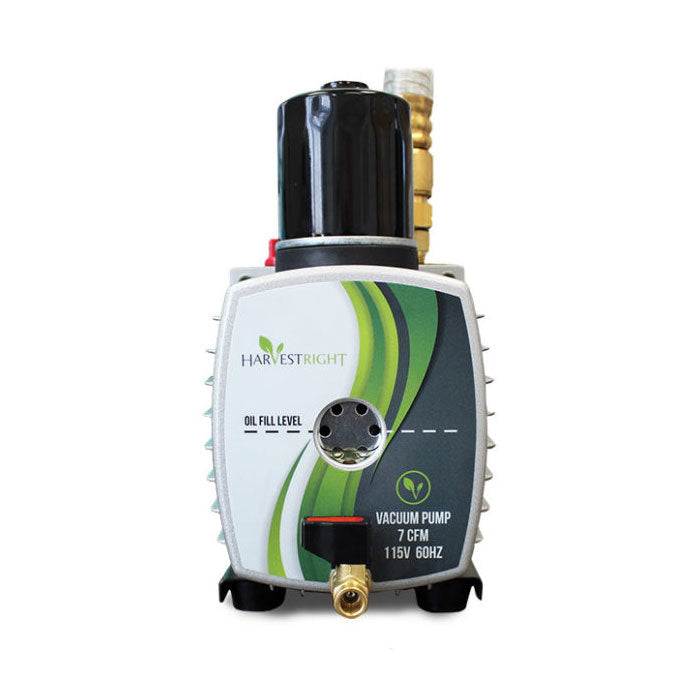

This pump features a 3/4 HP at 1,725 RPM motor. It pumps 7 cubic feet of oil per minute. This 115-volt, 60 Hz vacuum pump connects to a standard US outlet via the included power cord.
Harvest Right Standard Vacuum Oil Pump requires some maintenance, mainly adding and draining oil. There are 3 cups of oil in a vacuum pump that need to be changed regularly to keep a freeze dryer running efficiently. This is a simple process that requires little effort.
Technical Specifications
- This is a replacement pump for any size of the Harvest Right Freeze Dryer
- Smooth and quiet operation at 64 decibels
- Motor: 3/4 HP, 1725 RPM
- Plug: US 110V
- Weight: 35 lbs
- Voltage: Standard, 115v, 60Hz
- Intake Port: 3/4 JIC flare
- Oil: 21 oz (680cc)
- CFM: 7.2
- Dimensions: 10 in wide x 10 in long x 19 in high
- Warranty: 6 months
- Made in the USA
| Brand | Harvest Right |
|---|---|
| SKU | OP-VLU11060 |
| Weight (lb.) | 35.0000 |
| Prop 65 | No |
| Height (in.) | 16 |
| Width (in.) | 6 |
| Length (in.) | 11 |
| Warranty (*Spec-Box) | No |
| Lead Time | This product ships in 4-6 weeks |
| Hazmat? | No |
| UPC | 863671000492 |
| ETL Listed | No |
| UL Listed | No |
| Case/Pack/Pallet Amount | No |
| Curing Machine Type | Vacuum Pumps |
| Storage Product Type | No |
| Pack Size | No |
| Maintenance Information | No |
