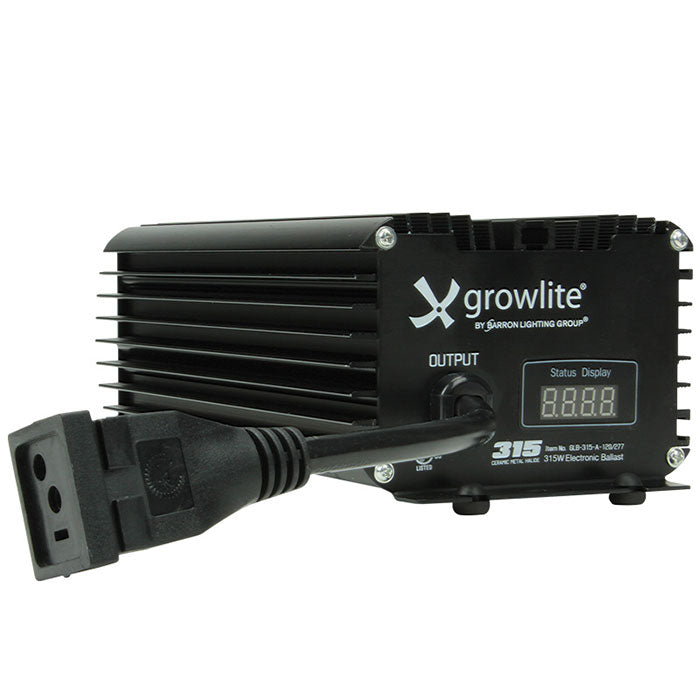

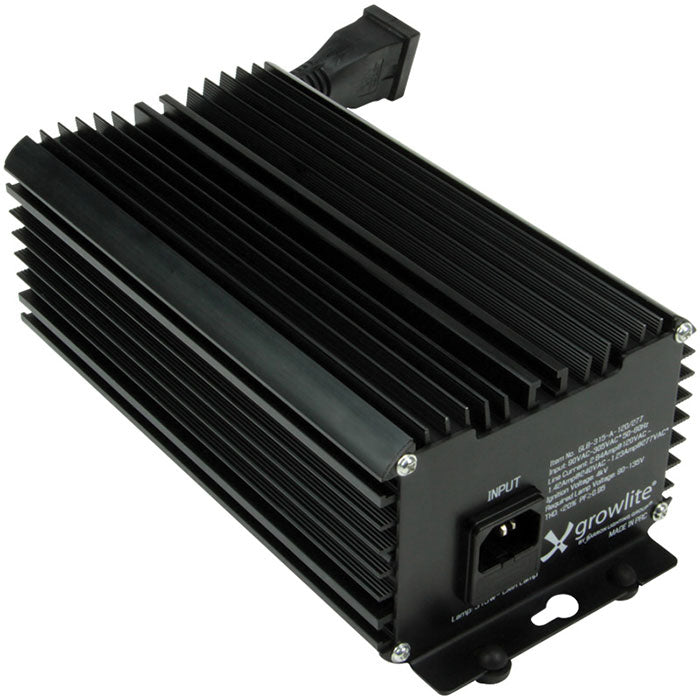

The newest generation of the 315w CMH ballast was developed to optimize the output of our 315w CMH lamps. Our lamp and ballast are tuned to work together at over 99% efficiency when operated together, you will receive less color shifts, lower lamp temperatures, and less frequency humming.
Features
- CMH lamps
- Soft Start stabilizes start-up loads and extends lamp life and performance
- Low frequency (< 200 Hz), Constant output
- LED status display
- 6' 120VAC power cord provided
- 120/208/240/277VAC voltage sensing input
- UL listed for safety
- 3 year warranty
Protections
- Short circuit
- Open circut
- End of Lamp Life (EOL)
- Hot-Start
- Ignition Failure
- Overheat
- Over/Under voltage
Preformance
- Rated Voltage: AC90-305VAC
- Input Frequency: 50/60Hz
- Ambient operating temperature (TA): -25°C ~ 50°C (-13°F ~ 122°F)
- Crest Factor (CF): < 1.5
- Power Factor (PF): 0.95
- Max case temperature < 80°C (< 176°F)
- Total Harmonic Distortion (THD): < 20%
- Current draw: 2.84A @ 120VAC, 1.42A @ 240V, 1.23A @ 277VAC
- Dimensions L 8.75" x W 5.07" x H 3.125"
- Packaged Weight: 5.5 lbs/2.5kg
| Brand | Growlite |
|---|---|
| SKU | GLB-315-A-120/277 |
| Weight (lb.) | 6.2500 |
| Length (in.) | 8.8 |
| Width (in.) | 5.1 |
| Height (in.) | 3.1 |
| Warranty (*Spec-Box) | 3 Year |
| Lead Time | This product ships in 5-8 Business days |
| Hazmat? | No |
| UPC | No |
| Prop 65 | No |
| ETL Listed | No |
| UL Listed | No |
| Case/Pack/Pallet Amount | No |
| Ballast Type | Digital Ballast |
| Double Ended Optimized | No |
| Dimmable Function | No |
| Exact Watts (*Spec-Box) | 315 Watts |
| Amps | No |
| Frequency | 50/60 Hz |
| Voltage (*Spec-Box) | 120/240/277 Volt |
| Power Cord(s) Included | 120/208/240/277 Volt |
| Power Cord Length | 6 ft. |
| Maintenance Information | No |
