Fluence SPYDR Fang Spec SheetProfessional-Grade is now as easy as 1, 2, 3

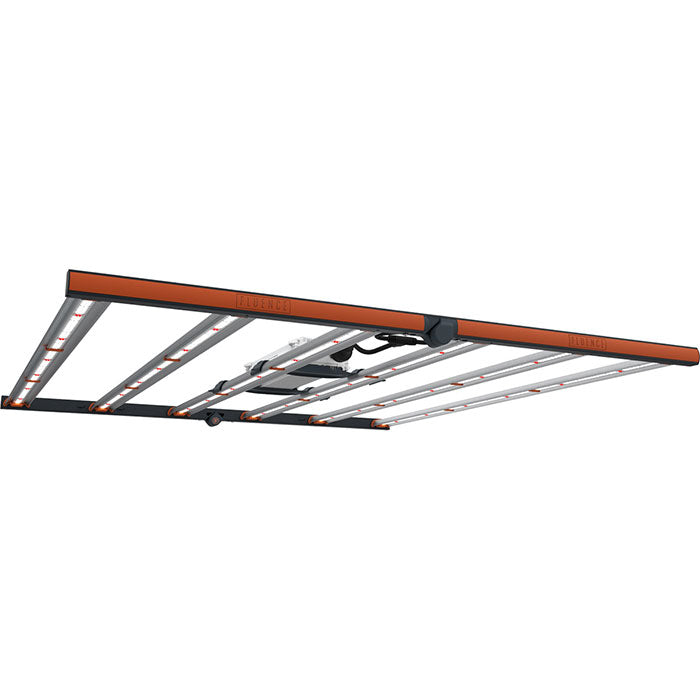

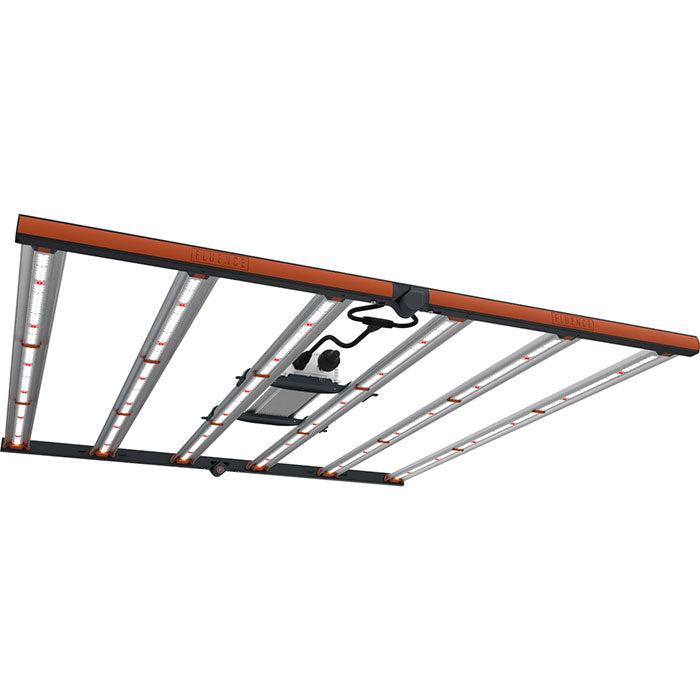

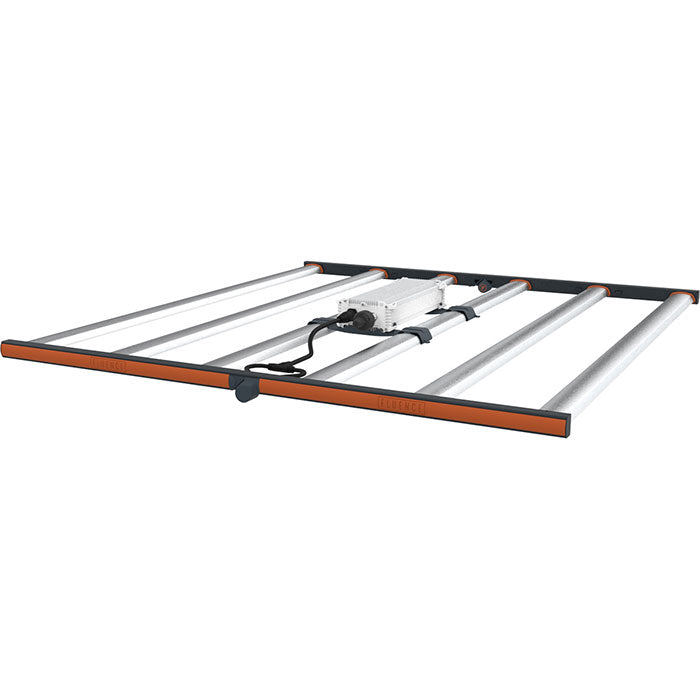

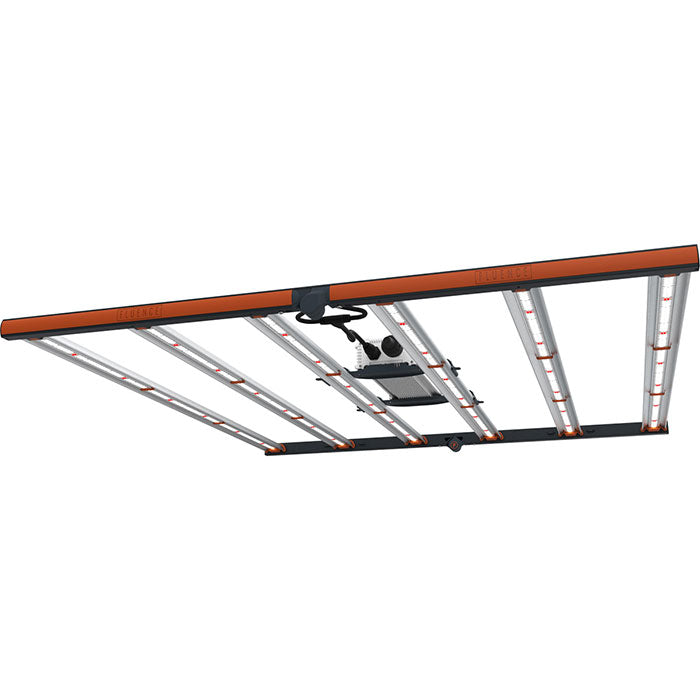

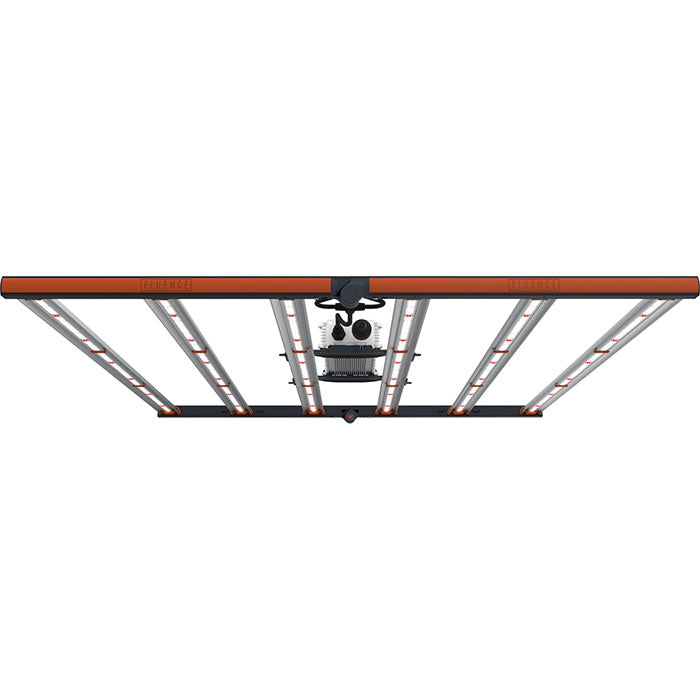

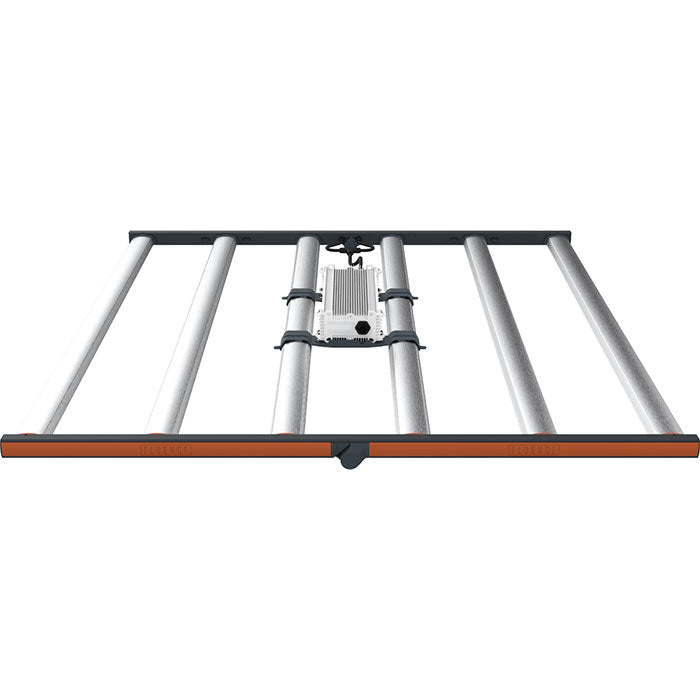

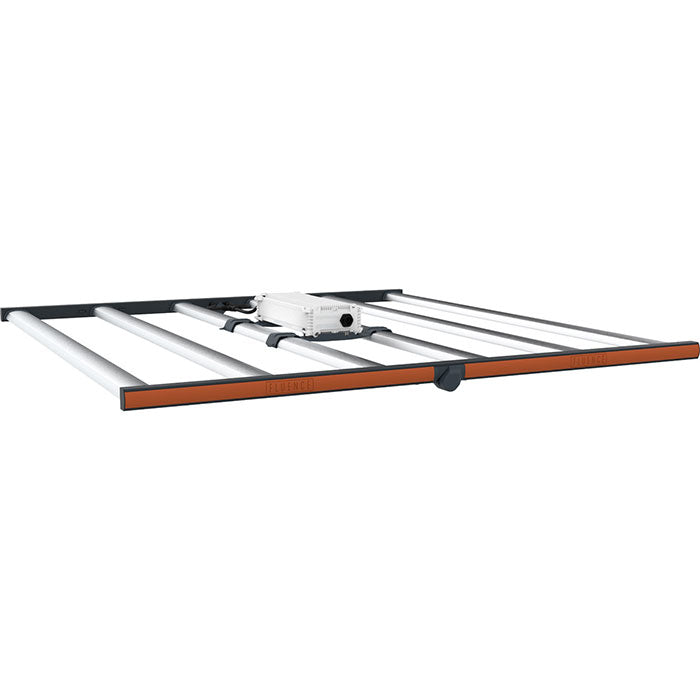

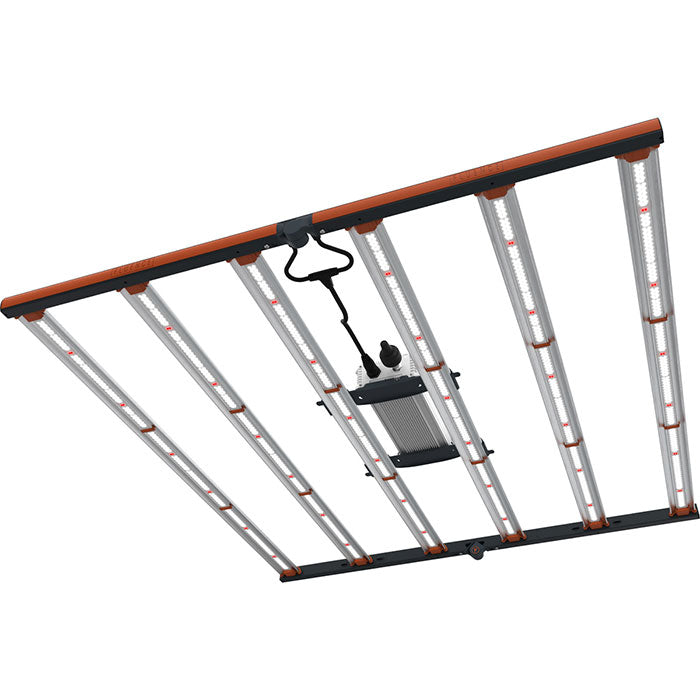

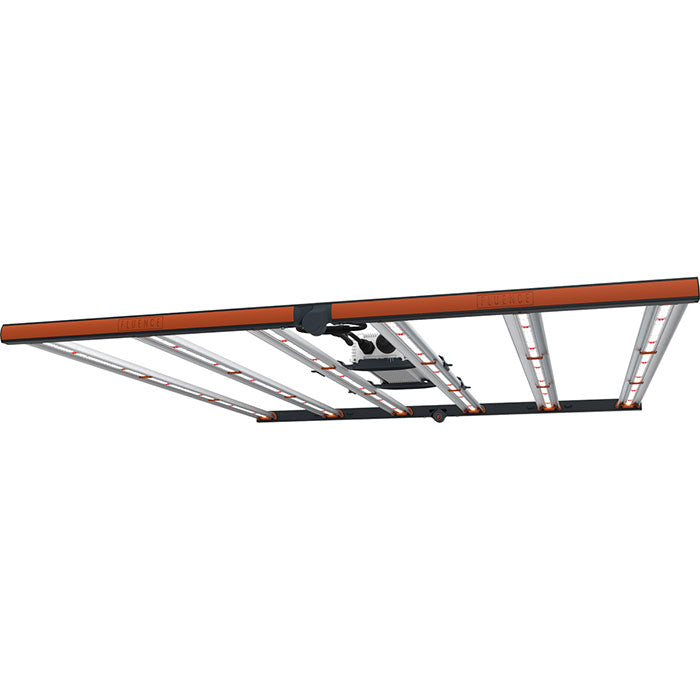

A high-performance LED grow light for craft cultivation. Enabling micro-growers to command their grow with an optimized 1600 µmol/s (PPF) output, PhysioSpec™ Broad R4 spectrum, and included 0-100% dimmer for easy control and full-cycle cultivation.
What Comes Included?
- SPYDR Fang LED Grow Light
- Dimmer Module
- 2-Point Lance Hanger Kit
Features
The same thin form factor that the pro grows have come to rely on has been fitted with an integrated dimmer module to be as plug-and-play as ever.
- Fold Out: Our thin form factor not only allows for each set up, but also maximum growing space for your plants to grow right up to the light

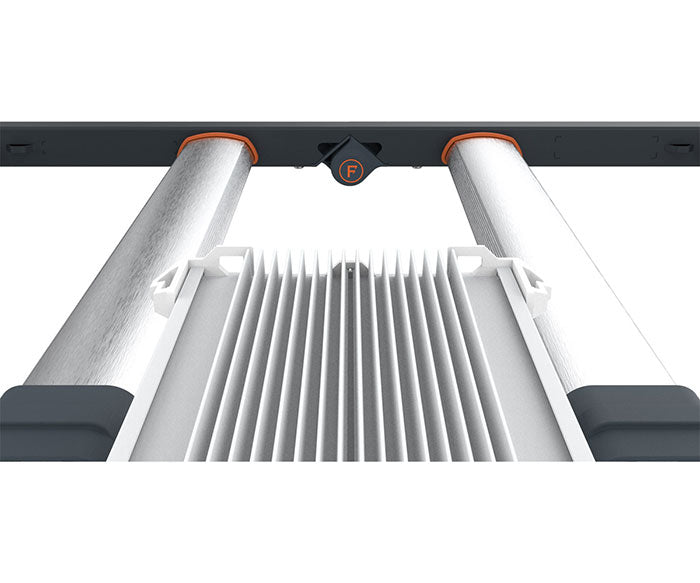

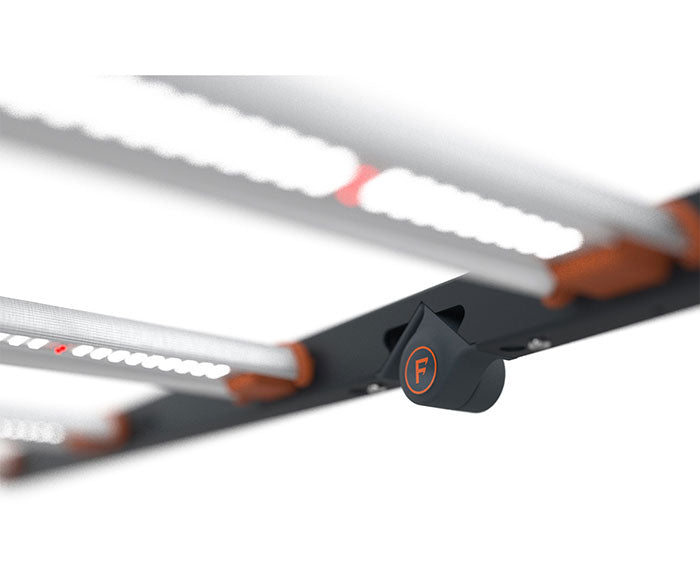

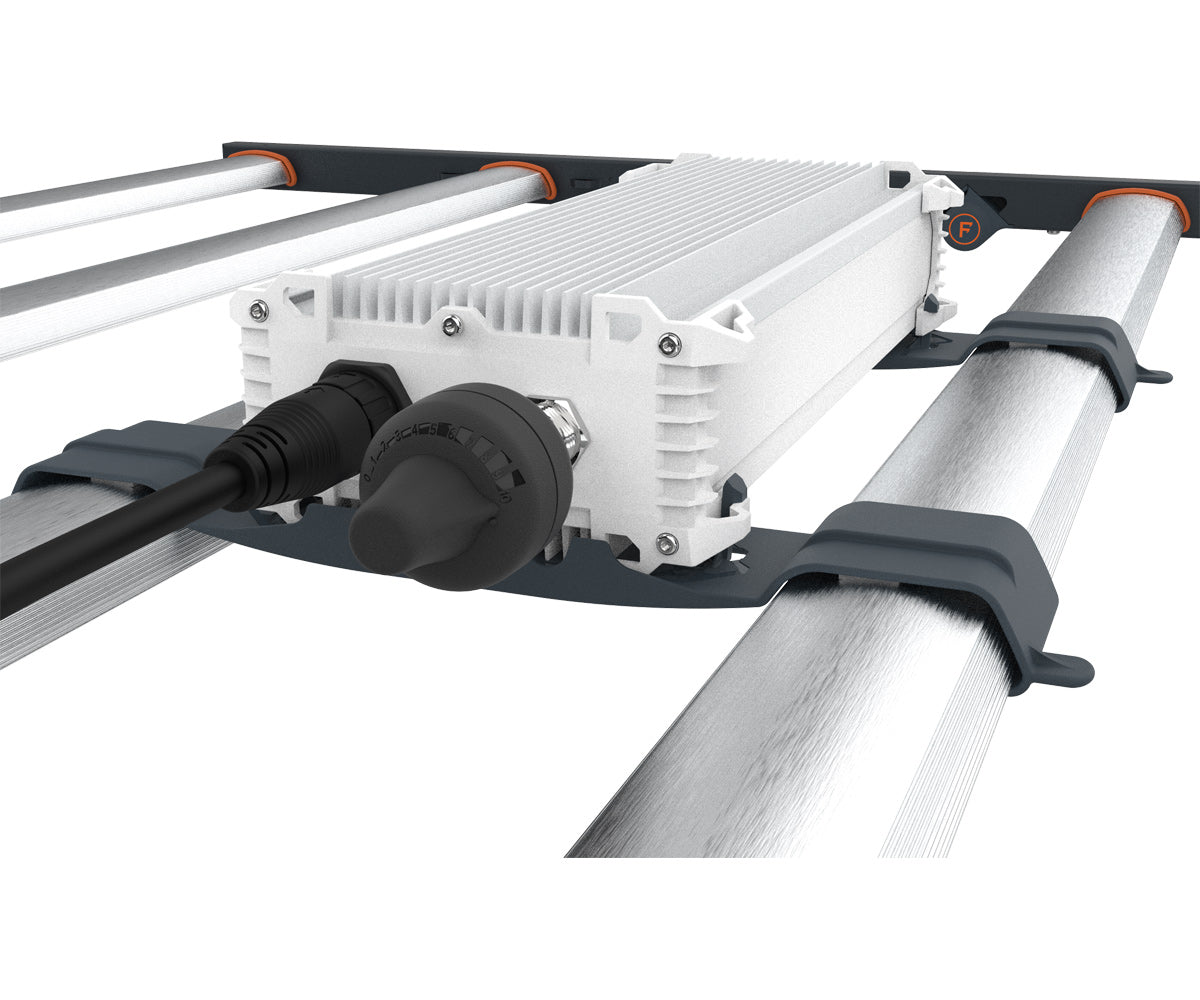

- Dial In Intensity: Fitted with its very own integrated dimmer module, SPYDR has never been easier to adjust through growth cycles
- Grow With White Light: Proven for rapid growth and full-cycle growing, our PhysioSpec Broad R4 mimics the richness of sunlight in indoor environments for full plant development.
PhysioSpec Broad R4
To create the most advanced spectrum for complete physiological plant growth, we had to challenge every assumption. Not only did this make the spectra better, it made it beautiful. Previously, 660nm (red) and 450nm (blue) were the most efficient LED packages and coincided with peak Chl A and Chl B absorption areas. This led to a negligence of key photoreceptors and pigments outside this range.
PhysioSpec Indoor is a full-cycle spectrum optimized for rapid growth and complete plant development. Tailored for growing plants from initiation to senescence (germination, clones/cuttings, mothers, vegetative and flowering applications) in indoor environments. With a CRI rating of 85, PhysioSpec Indoor offers a beautiful work and research environment with vivid colors and greater contrast to study the health of your crop.
Specifications for the SPYDR FANG
| Light Source | LED |
|---|---|
| Spectrum | PhysioSpec™ Broad R4 |
| Light Output PPF | 1600 µmol/s |
| Efficacy | 2.6 µmol/J @ 240 V AC |
| AC Input Power | 626 W @ 240 V AC |
| AC Input Voltage | 120-277 V AC, 50/60 Hz |
| Light Distribution | 120° |
| Mounting Height Above Canopy | 6” - 12” [15-30 cm] |
| Thermal Management | Passive |
|---|---|
| Max. Ambient Temperature/Humidity | 95°F [35°C], 90% RH |
| Dimming | Dimmer Module Included |
| Total Harmonic Distortion (THD) | <10% at 100% output |
| Lifetime (Driver and LED Q90) | > 36,000 hrs |
| IP Rating | IP66 |
| Certifications | UL 8800, UL 1598, CE, IEC60598-1 |
| Warranty | 3 Year Limited Warranty |
| Brand | Fluence |
|---|---|
| SKU | FLUEFANG |
| Weight (lb.) | 33.0000 |
| Prop 65 | Yes |
| Length (in.) | 4.5 |
| Width (in.) | 48.5 |
| Height (in.) | 28 |
| Warranty (*Spec-Box) | 3 Year |
| Lead Time | Ships in 1-2 business days |
| Hazmat? | No |
| UPC | 810089990068 |
| Case/Pack/Pallet Amount | No |
| Lighting Type | LED |
| LED Light Spectrum | Full Spectrum |
| LED Fixture Type (New) | Multi-Bar |
| LED Fixture Type (Old - DNU) | No |
| LED Features | Manual Dimming Knob |
| Est. Electricity Cost /mo (*Spec-Box) | $27.21 |
| Exact Watts (*Spec-Box) | 630 Watts |
| HID Equivalent | No |
| Suggested Hanging Height | 6” - 12” Above Canopy |
| LED Diode Type | No |
| LED Driver Type | No |
| PAR Efficiency | 2.6 µmol/J |
| Total PPF Output | 1600 µmol/s |
| Power Factor | No |
| Daisy Chain | No |
| Voltage (*Spec-Box) | 120-277 Volts |
| Amps | 5.32 Amps @ 120 Volts, 2.79 Amps @ 240 Volts, 2.34 Amps @ 277 Volts |
| Frequency | 50/60 Hz |
| Power Cord(s) Included | Yes - 240 Volt |
| Power Cord Length | 6 Feet |
| Coverage Area (*Spec-Box) | Veg: 5' x 5'; Flower: 4' x 4' |
| Grow Light Certifications | IP66 Rated, ETL Listed, UL Listed |
| ETL Listed | Yes |
| UL Listed | Yes |
| Dimming Option | No |
| Maintenance Information | No |
