The Industry's Highest Efficiency/Lowest Frequency, Daisy-Chainable, Controllable, and Dimmable CMH Grow Light Fixture

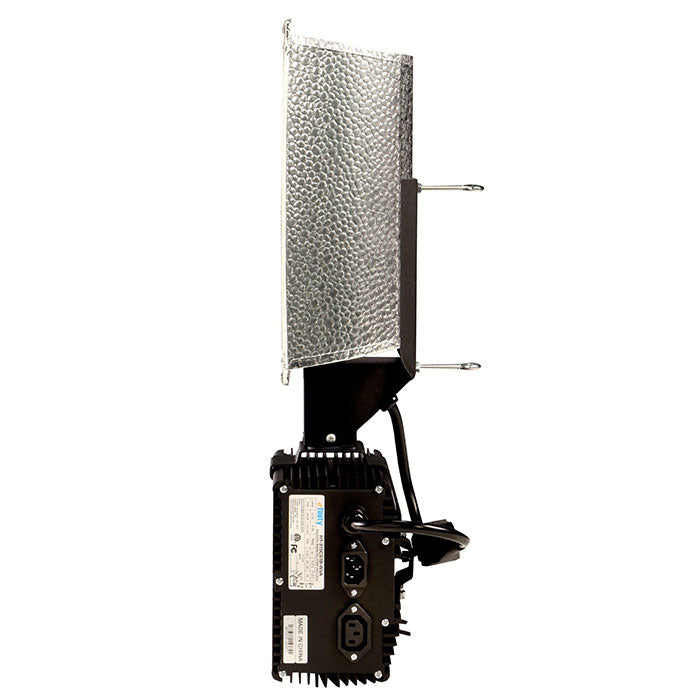

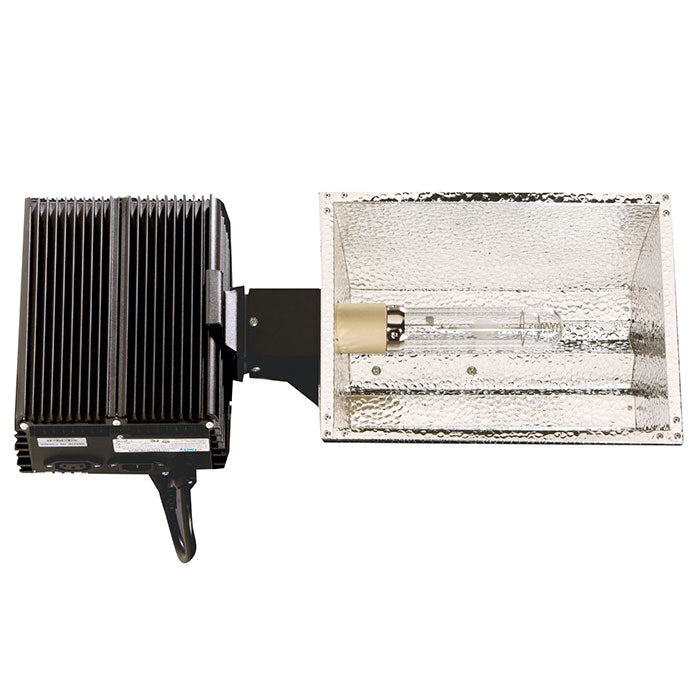

Efinity Black Series 315 Watt CMH Grow Light Fixture Key Features:
- Daisy chain up 8 units

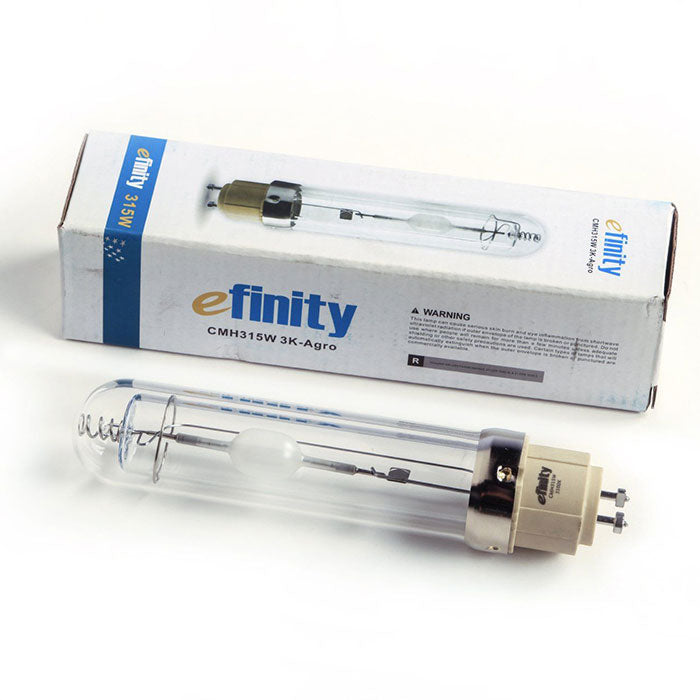

- Runs GreenPower CDM-T 315W Lamps
- No acoustic resonance
- Low Frequency, High Efficiency electronic ballast
- Lower harmonic distortion

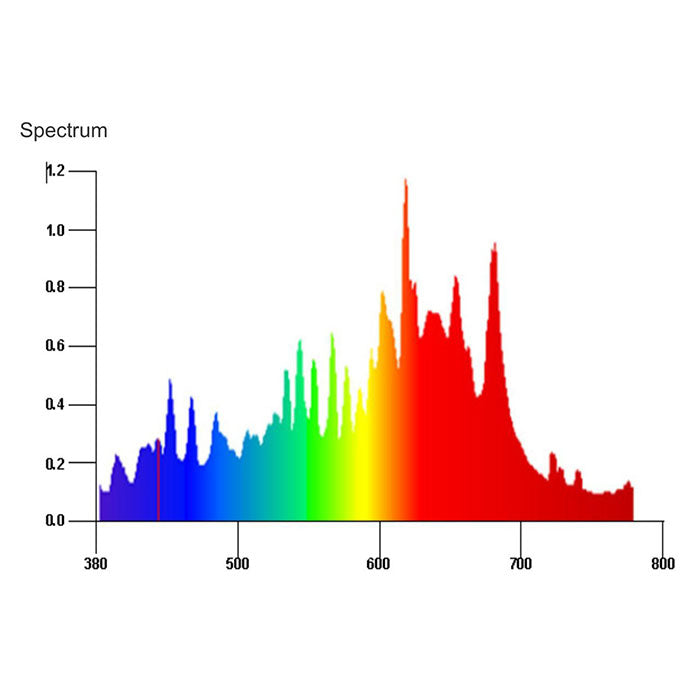

- High output and improved spectrum
- Driver efficiency at full power: 95-96%
- BUILT-IN PROTECTIONS
- Short circuit protection
- Open circuit protection
- Ignition failure protection
- Thermal protection
- End of Lamp Life (EOL) protection

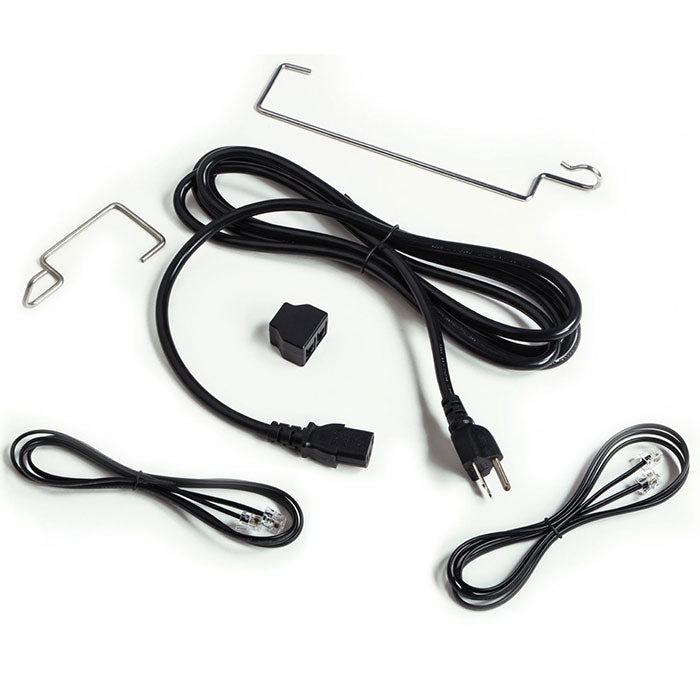

Efinity Black Series 315 Watt CMH Grow Light Fixture Master Carton Includes:
- One efinity 315W Digital Ballast
- 9ft power cord
- 110/240V with plug
- 277V buildin power cord
- User manual
Specifications for the EcoGrow
| Input Voltage: | 277 Volt |
|---|---|
| Input Current: | 1.3A |
| Input Power | 343 Watts |
| Power Factor: | > 0.95 |
| Frequency: | 50-60 Hz |
| Total Harmonic Distortion: : | < 15% |
| Ignition Voltage: | 5KV |
|---|---|
| Temperature ambient: | -4-104 F |
| Power Inlet: | IEC C14 |
| In Rush Current: | < 50 Amps |
| AC Cord Length: | 9 ft |
| Plug Type: | NEMA L7-15P |
| Brand | Efinity |
|---|---|
| SKU | LI-LPEF-315WB |
| Warranty (*Spec-Box) | No |
| Weight (lb.) | 9.5000 |
| Prop 65 | No |
| Length (in.) | 23 |
| Width (in.) | 9.5 |
| Height (in.) | 5 |
| Lead Time | Ships in 2-3 Business Days |
| Hazmat? | No |
| UPC | No |
| Case/Pack/Pallet Amount | No |
| Lighting Type | CMH - Single Ended |
| Ballast Type | Digital Ballast |
| Bulb Type (*Spec-Box) | Single Ended Ceramic Metal Halide |
| Reflector Type (*Spec-Box) | Open |
| Bulb(s) Included? | Yes |
| Bulb Lumens | No |
| Color Temp (Kelvin) | 3000 K |
| Coverage Area (*Spec-Box) | Veg: 4' x 4'; Flower: 3' x 3' |
| Est. Electricity Cost /mo (*Spec-Box) | $13.60 |
| Exact Watts (*Spec-Box) | 315 Watts |
| Voltage (*Spec-Box) | 277 Volts |
| Amps | 1.3A |
| Frequency | 50-60 Hz |
| Daisy Chain | 8 Units |
| Power Cord(s) Included | NEMA L7-15P |
| Power Cord Length | 9 ft. |
| Grow Light Certifications | ETL Listed |
| ETL Listed | Yes |
| UL Listed | No |
| Maintenance Information | No |
