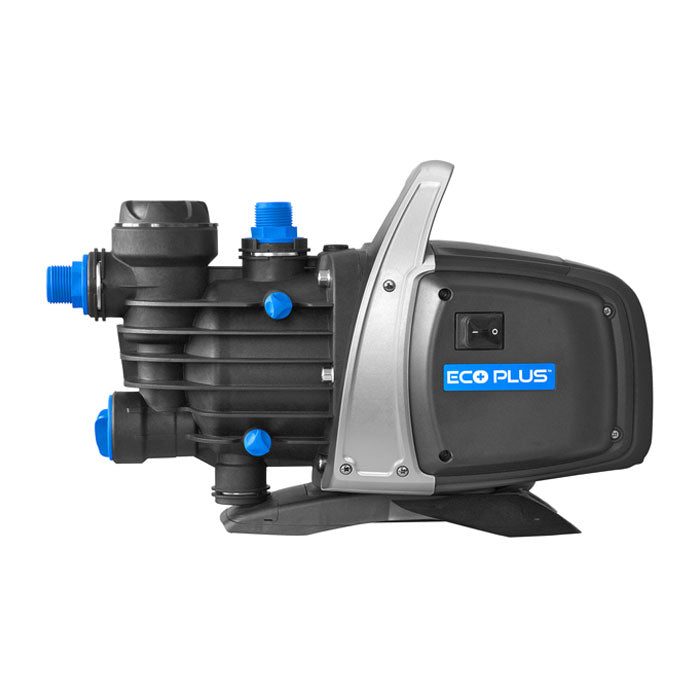

Elite Series Multistage Pumps
The EcoPlus Elite series Multistage Pumps are perfect for supplying water to domestic, irrigation, and gardening applications.
These pumps have 3 impellers which help deliver high flow and pressure. The high flow and pressure makes these pumps ideal for use with many drip emitters, and other irrigation equipment that require a high PSI to operate. This pump is very quiet and runs from a manual on/off switch. Self-priming, compact, and robust construction. Outlet and inlets are 1 in NPT.
Pumps have 5 ft power cord.
Pumpable liquids include:
- Fresh Water
- Rainwater
- Fountain Water (filtered)
- Drinking Water
- River or Lake Water
Non-pumpable liquids include:
- Dirty Water
- Clear Waste Water
EcoPlus Electronic Multistage Pump with Run Dry Protection
- Automated on/off: Prevents dry running for long-lasting, reliable performance
- Flow indicator wheel: Displays flow status at pump outlet
- Leak detection: Alerts growers of leaks, and shuts off flow to head off damage
Note: Run Dry Protection is only offered on the EcoPlus Electronic Jet Pump
Fittings & Dimensions
For HGC727188 and HGC727190
Fittings & Dimensions
For HGC727194
Specifications
| SKU | HGC727180 | HGC727182 | HGC727196 |
| HP | 1/3 HP | 3/4 HP | 3/4 HP |
| GPH | 924 GPH | 1416 GPH | 1416 GPH |
| Power | 730 Watt | 1040 Watt | 1040 Watt |
| Voltage | 115-120 V AC | 115-120 V AC | 115-120 V AC |
| Frequency | 60 Hz | 60 Hz | 60 Hz |
| Amps | 6.6 Amps | 9.6 Amps | 9.6 Amps |
| Flow rate max | 15.4 gpm | 23.6 gpm | 23.6 gpm |
| Max Pressure | 43.5 psi | 55.1 psi | 55.1 psi |
| Dimensions | 19.7" x 9.1" x 12.2" | 19.7" x 9.1" x 12.2" | 19.7" x 9.1" x 12.2" |
| Weight | 21.1 lbs. | 23.1 lbs. | 24.1 lbs. |
