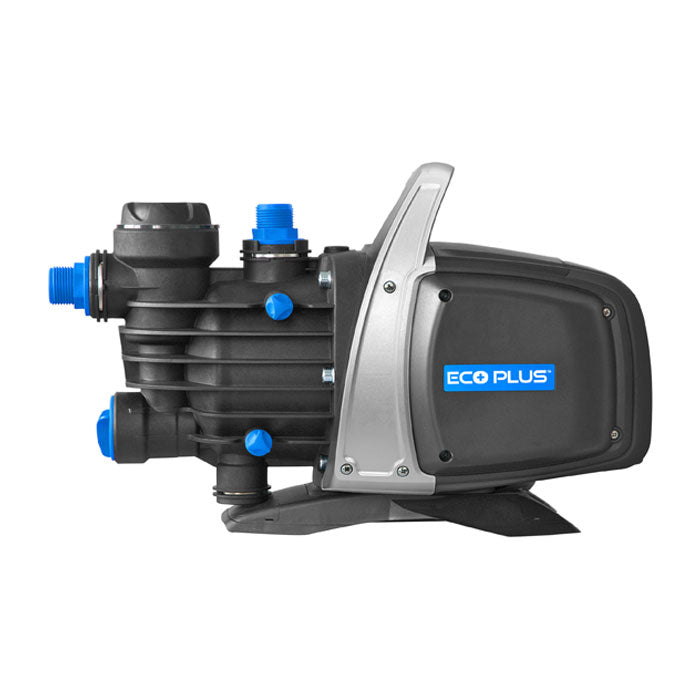

EcoPlus Elite Series Jet Pump Instructions EcoPlus Elite Series Electronic Jet Pump InstructionsElite Series Jet Pumps
The EcoPlus Elite series Multistage Pumps are perfect for supplying water to domestic, irrigation, and gardening applications.
These pumps have 3 impellers which help deliver high flow and pressure. The high flow and pressure makes these pumps ideal for use with many drip emitters, and other irrigation equipment that require a high PSI to operate. This pump is very quiet and runs from a manual on/off switch. Self-priming, compact, and robust construction. Outlet and inlets are 1 in NPT.
Pumps have 5 ft power cord.
Pumpable liquids include:
- Fresh Water
- Rainwater
- Fountain Water (filtered)
- Drinking Water
- River or Lake Water
Non-pumpable liquids include:
- Dirty Water
- Clear Waste Water
EcoPlus Electronic Jet Pump with Run Dry Protection
- Automated on/off: Prevents dry running for long-lasting, reliable performance
- Flow indicator wheel: Displays flow status at pump outlet
- Leak detection: Alerts growers of leaks, and shuts off flow to head off damage
Note: Run Dry Protection is only offered on the EcoPlus Electronic Jet Pump
Fittings & Dimensions
For HGC727188 and HGC727190
Fittings & Dimensions
For HGC727194

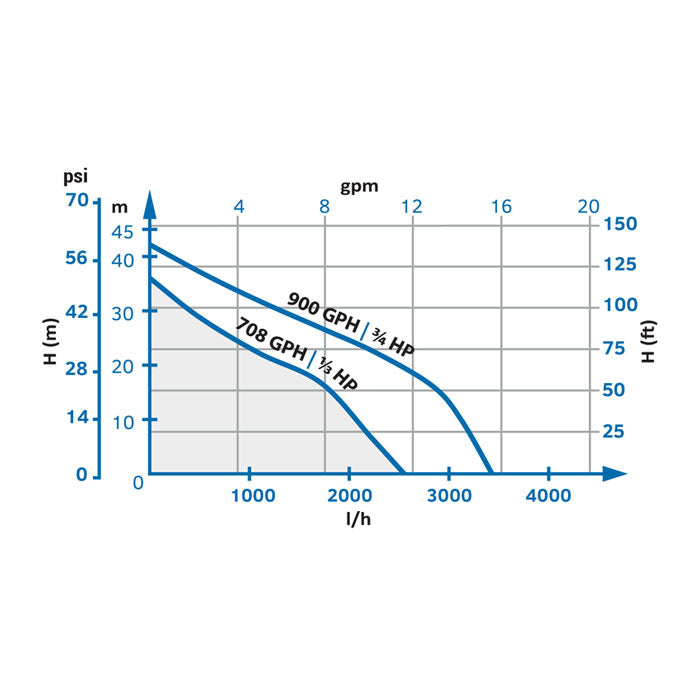

Specifications
| SKU | HGC727188 | HGC727190 | HGC727194 |
| HP | 1/3 HP | 3/4 HP | 3/4 HP |
| GPH | 708 GPH | 900 GPH | 900 GPH |
| Power | 780 Watt | 1050 Watt | 1050 Watt |
| Voltage | 115-120 V AC | 115-120 V AC | 115-120 V AC |
| Frequency | 60 Hz | 60 Hz | 60 Hz |
| Amps | 73 Amps | 9.8 Amps | 9.8 Amps |
| Flow rate max | 11.8 gpm | 15 gpm | 15 gpm |
| Max Pressure | 43.5 psi | 55.1 psi | 55.1 psi |
| Dimensions | 19.7" x 9.1" x 12.2" | 19.7" x 9.1" x 12.2" | 19.7" x 9.1" x 12.2" |
| Weight | 19 lbs. | 21.7 lbs. | 21.7 lbs. |
