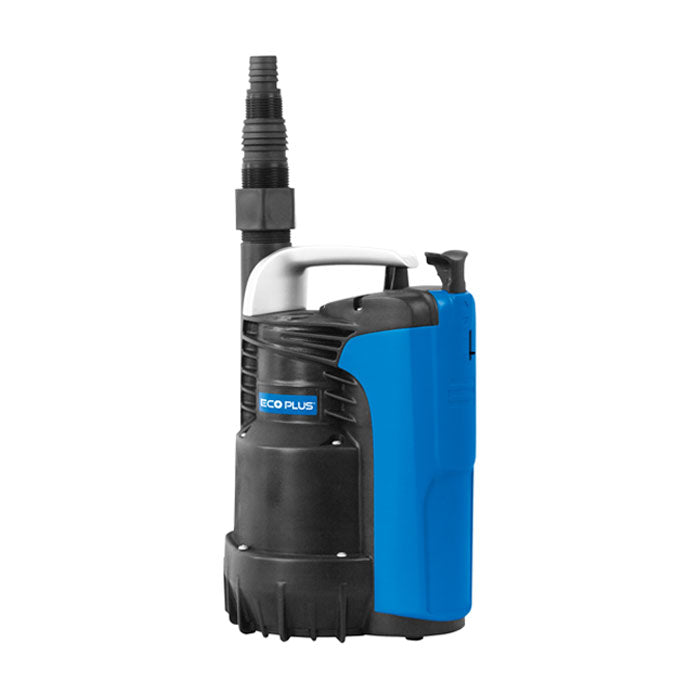

EcoPlus Elite Series Automatic Submersible Pump InstructionsElite Series Automatic Submersible Pump
EcoPlus® Elite Series Automatic Submersible Pumps are specifically designed for uses in narrow pits or reservoirs. These pumps can fit in spaces of 8 in x 8 in. Suitable to pump clear water containing particles with maximum diameter up to 1/4 in.
Built with anti-corrosive and rust-proof materials. These pumps have low suction capability down to a 1/16 in. They include an integrated float switch which automatically shuts your pump off so it doesn’t run dry.
This pump is watertight and must be immersed in liquid. Pumps have 32.8 ft power cord.
Pumpable liquids include:
- Fresh Water
- Rainwater
- Clear Waste Water
- Fountain Water
- River or Lake Water
Non-pumpable liquids include:
- Dirty Water
- Waste Water containing solid particles with long fibers
Specifications
| SKU | HGC727184 | HGC727186 |
| HP | 1/5 HP | 1/4 HP |
| GPH | 1746 GPH | 3168 GPH |
| Power | 275 Watt | 650 Watt |
| Voltage | 115-120 V AC | 115-120 V AC |
| Frequency | 60 Hz | 60 Hz |
| Amps | 2.6 Amps | 2.6 Amps |

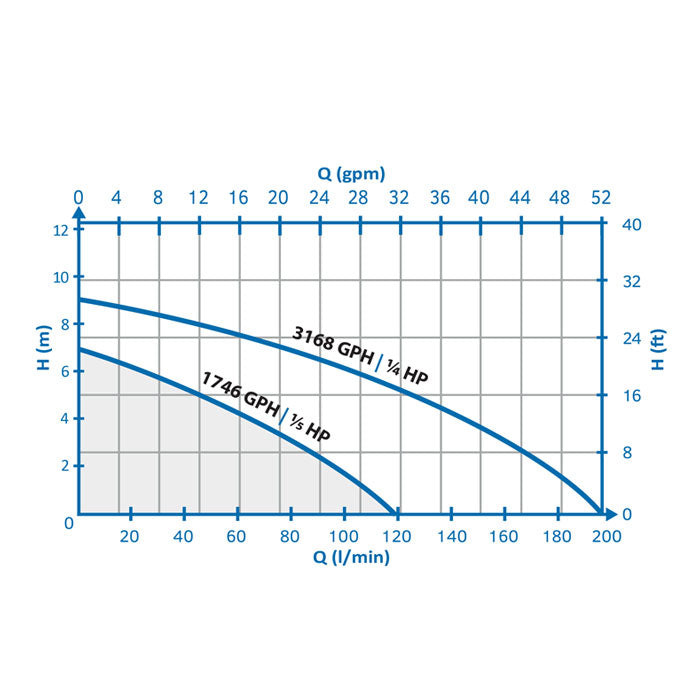

| Max Head | 19.1 ft. | 29.5 ft. |
| Flow rate max | 29.1 gpm | 52.8 gpm |
| Max Pressure | 8.7 psi | 13.2 psi |
| Dimensions | 8.7" x 7.3" x 13" | 8.7" x 7.3" x 13" |
| Weight | 10.6 lbs. | 10.8 lbs. |
