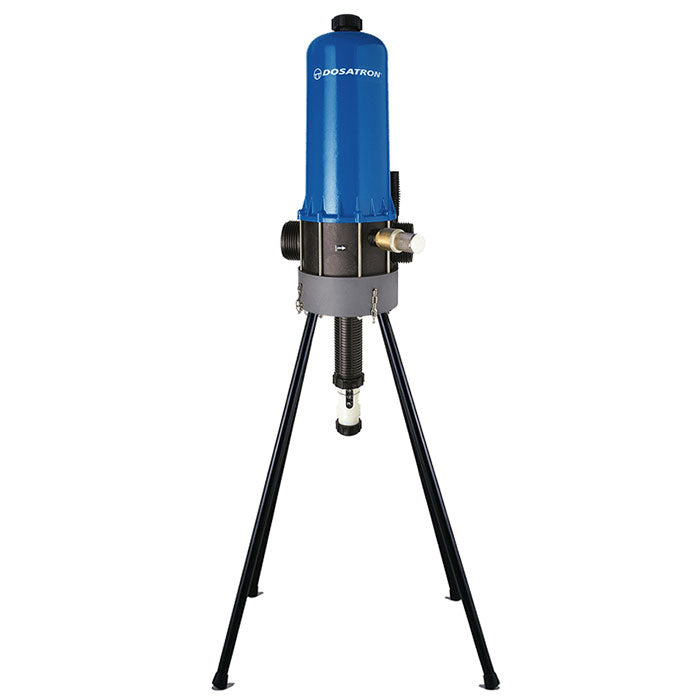

The Water-Powered Dosatron D20SVFII injector with dosing seals for a variety of chemistries is suitable for industrial, livestock, horticulture, and hydroponic applications.
This unit is part of our innovative Mega-Flo Series, a workhorse with flow up to 100 GPM. It has a flow range of 5 to 100 GPM and a dilution range of 1:500 to 1:50 (0.2% to 2%).
Specifications
- Connection Size: 2" NPT
- Unit Weight: 47 lbs.
- Dimensions: 55" x 15" (with legs); 42" x 15" (without legs)
- Flow: 5 to 100 GPM (18.9 to 379 LPM)
- Pressure: 2 to 120 PSI
- Ratio Range: 1:500 to 1:50
- Percentage Range: 0.2 to 2%
- Ounces Per Gallon Range: 0.256 to 2.560
- Included Accessories: Suction hose, weighted strainer, legs, and quick start guide.
| Brand | Dosatron |
|---|---|
| SKU | D20SVFII |
| Collection | No |
| Weight (lb.) | 49.0000 |
| Height (in.) | 13 |
| Prop 65 | Yes |
| Lead Time | This product ships in 5-7 business days |
| Length (in.) | 38 |
| Width (in.) | 17 |
| Warranty (*Spec-Box) | 1 Year |
| Hazmat? | No |
| UPC | 850019843279 |
| ETL Listed | No |
| UL Listed | No |
| Stop Sale | No |
| Case/Pack/Pallet Amount | No |
| Auto-Dosing Product Type | Doser / Injector |
| Doser Flow Rate | 100 GPM |
| Doser Connection Size | 2 Inch |
| Exact Watts (*Spec-Box) | No |
| Amps | No |
| Voltage (*Spec-Box) | No |
| (Conf) Doser Seal Type | No |
| (Conf) Doser Dilution Range | No |
| (Conf) Doser System Connection Size | No |
| (Conf) Injector Tank Size | No |
| Choose your Nutrient Line | No |
| Maintenance Information | No |
