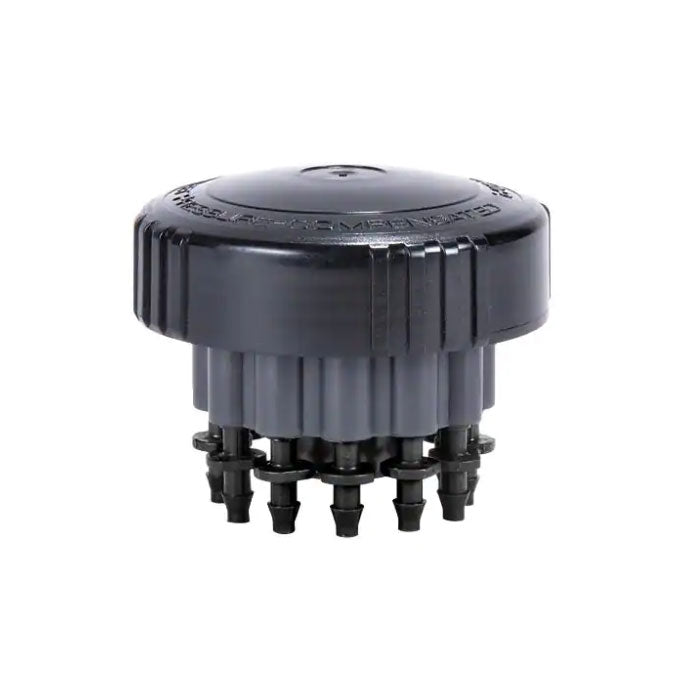

DIG’s TOP is an advanced pressure compensating drip manifold that offers a slow, precise application of water and nutrients directly to the plant’s root zone in a predetermined fashion. It contains flow-regulating, self-flushing drip emitters with a built-in filter that perform at a wide range of operating pressures.
Notes: This item is just the manifold and emitters. DIG has a TOP Manifold Assembly Kit that includes much more for getting started
Features
- Constructed with 12 built-in individually pressure compensating drip emitters
- Self-flushing emitters allow passage of water and minimize clogging
- Interchangeable drip emitters for variable flow rates in a single head
- Color-coded drip emitters and barbs easily identify flow rate at each zone
- Each drip emitter individually filtered (approx. 80 mesh)
- Backup mini disk filter
- Rugged materials to withstand the most adverse conditions
- Install above grade or place below grade in a 6” emitter box
- Inlet plugs provide the option to cap off up to eight drip emitters
Specifications
- Flow rates: .6, 1, 2.2 and 3.3 GPH (2.2, 4, 8.3 and 12.5 L/H)
- Pressure compensating range: 8-80 PSI (.5 - 5.6 BAR)
- Recommended operating pressure: 15-50 PSI (1 - 3 BAR)
- Temperature range: up to 122°F (50°C)
- Inlet size: 1/2” FNPT
- Use with 1/8” (.187" OD) or 1/4” (.150" - .160" ID) distribution tubing
-
Materials:
- Body & Cover: High-impact plastic
- Filter: Nylon
- Diaphragm
- Filter requirement: minimum of 120 mesh/ 130 micron,depending on water quality and concentration of dirt particles
- Dimensions: 3” W x 2” H (7.6 cm W x 5 cm H)
