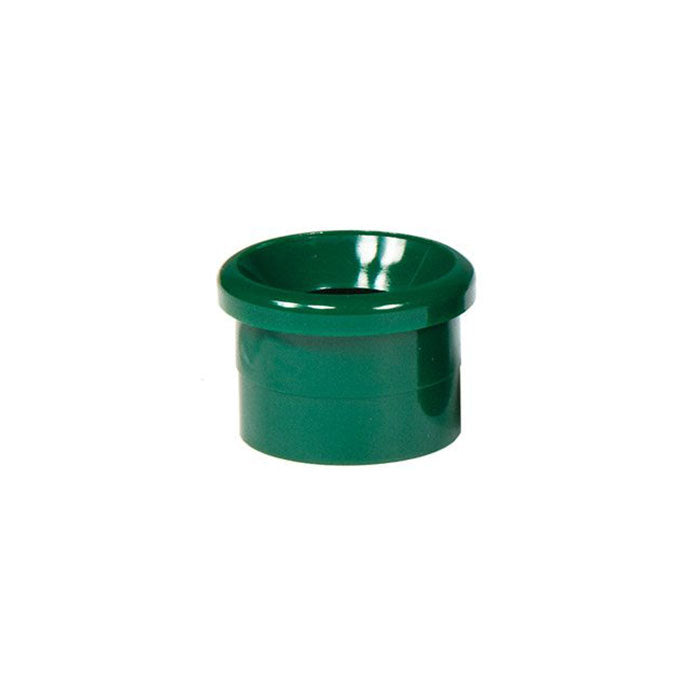

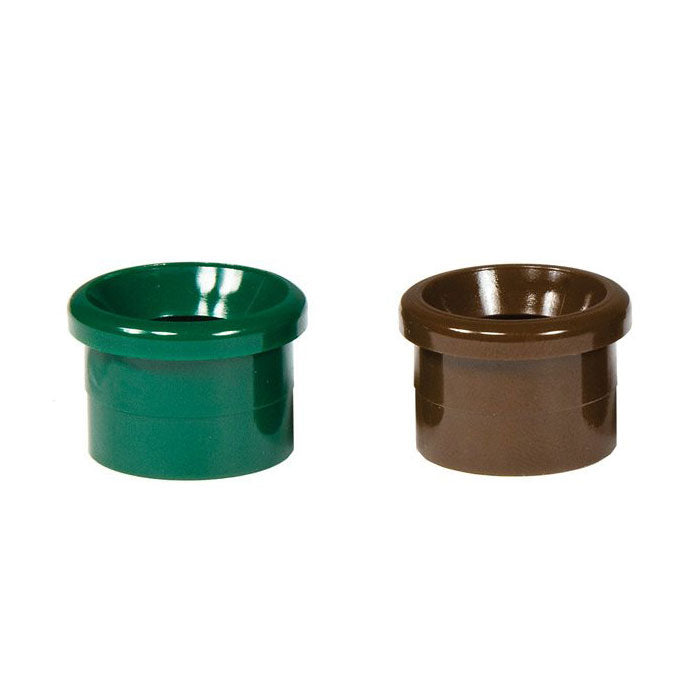

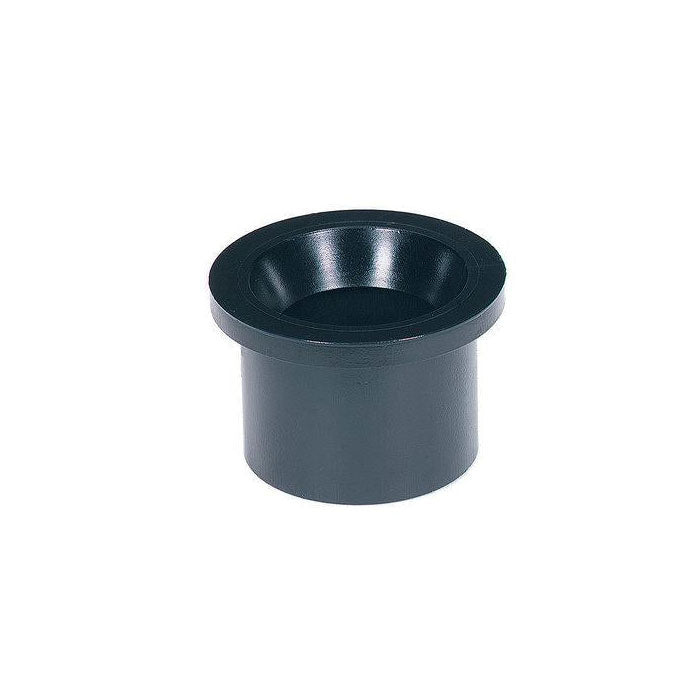

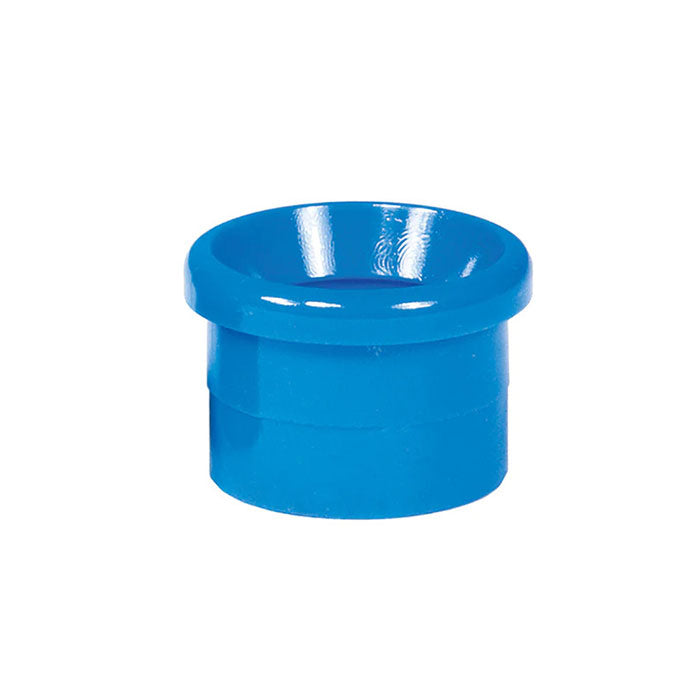

DIG’s 1/2″ Compression PVC compression inserts are available for .450″ OD (red), .630″ OD (green). .700″ OD to .704″ OD (black), .710″ OD (blue) and .930″ OD (black). Glue the insert into any 1/2″ or 3/4″ PVC slip coupling or tee to connect it to 1/2″ or 3/4″ drip tubing.
Features
- Fits polyethylene tubing with .450″ OD , .630″ OD, .700″ OD to .704″ OD, .710″ OD and .930″ OD
- Glues into the slip side of any 1/2″ or 3/4″ PVC fitting
- Color-coded insert for easy identification
- Use with any PVC glue
- Easy to install
- Made with high-impact, UV-resistant plastic
Specifications
- Operating pressure: Up to 60 PSI
- Recommended operating pressure: up to 30 PSI
- Size: For .700" OD to .704" OD drip tubing and drip line
- Color: Black
- Materials: High-impact plastic
| Brand | DIG |
|---|---|
| SKU | DIG-PVC-INSERT |
| Height (in.) | No |
| Width (in.) | No |
| Length (in.) | No |
| Warranty (*Spec-Box) | No |
| Hazmat? | No |
| UPC | No |
| N-P-K | N/A |
| Nutrient Application | N/A |
| Nutrient Type | N/A |
| OMRI Certified | N/A |
| Nutrient Material Type | N/A |
| Maintenance Information | No |
