DIG Online Pressure Compensating Buttom Drip Emitters
Features
- Labyrinth water passage with a floating silicon diaphragm design provides a self-cleaning mechanism at the water outlet
- Barbed inlet for installation into drip tubing or 1/4″ distribution tubing
- Male nipple outlet for a placement of multi-outlet adapter or bug caps
- Constructed of UV-resistant, durable plastic material to withstand the most adverse conditions

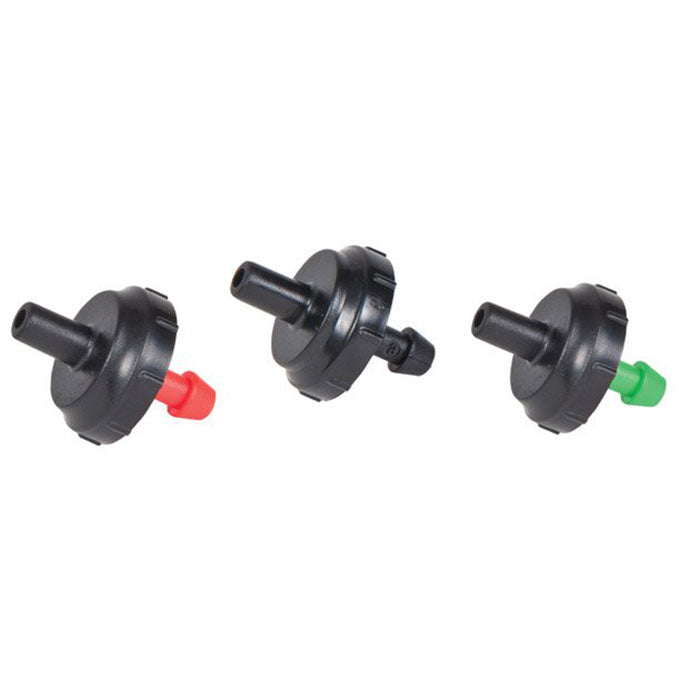

- Available in three color-coded flow rates for easy identification
- Pressure compensation enables the use of longer laterals with smaller diameter tubing
Specifications
- Operating pressure range: 10-45 PSI (.7-3.5 BAR)
-
Flow rates and color codes:

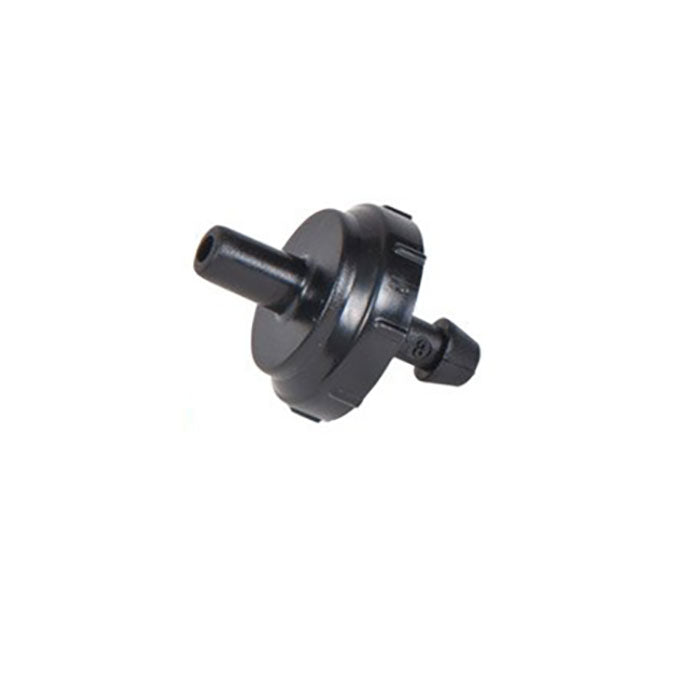

- 1 GPH (4 L/H) color code – black

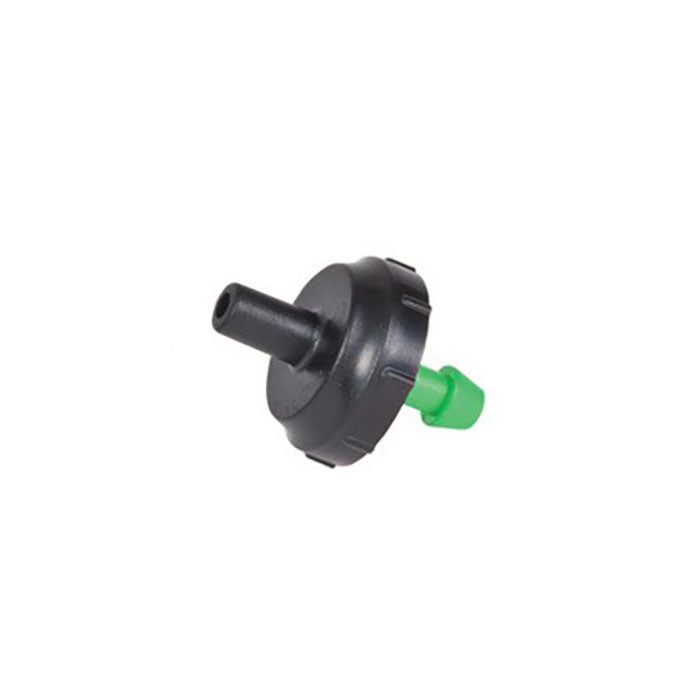

- 2 GPH (8 L/H) color code – green

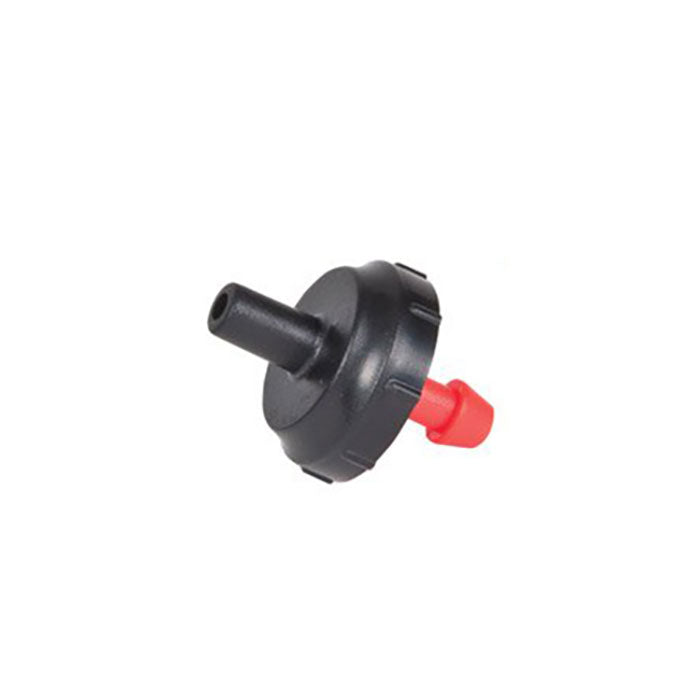

- 4 GPH (12 L/H) color code – red
- Inlet side: 1/4" (4 mm) barb
- Outlet side: .2" (5 mm) male nipple
- Filter requirement: minimum of 150 mesh
- Material: Body and cover: high-impact ABS
| Brand | DIG |
|---|---|
| SKU | DIG-OPCBDE |
| Height (in.) | No |
| Width (in.) | No |
| Length (in.) | No |
| Warranty (*Spec-Box) | No |
| Hazmat? | No |
| UPC | No |
| N-P-K | N/A |
| Nutrient Application | N/A |
| Nutrient Type | N/A |
| OMRI Certified | N/A |
| Nutrient Material Type | N/A |
| Maintenance Information | No |
