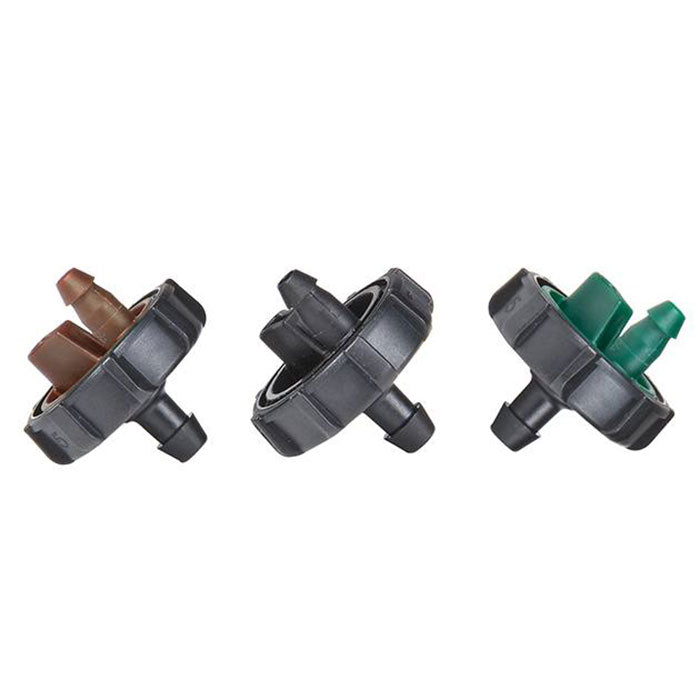

The Button Drip Emitters utilize a unique labyrinth flow path design, producing a turbulent flow for consistent operation with less chance of clogging. The drip emitters are available in flow rates of .5, 1 or 2 GPH and operate at 10 to 20 PSI.
Features
- Unique design with a minimum width passage of 0.043″ provides a turbulent flow to prevent clogging
- Uniform flow rate
- Constructed of high-quality material to ensure stability and long life
- Color-coded to easily identify flow rate
- Raised barbed outlet prevents water runoff along the drip lateral
- Resistant to chemicals and fertilizers used in landscape applications
- Constructed of UV-resistant, durable plastic material to withstand the most adverse conditions
Specifications
- Operating pressure range: 10-20 PSI (.7-1.4 BAR)
-
Flow rates and color codes:

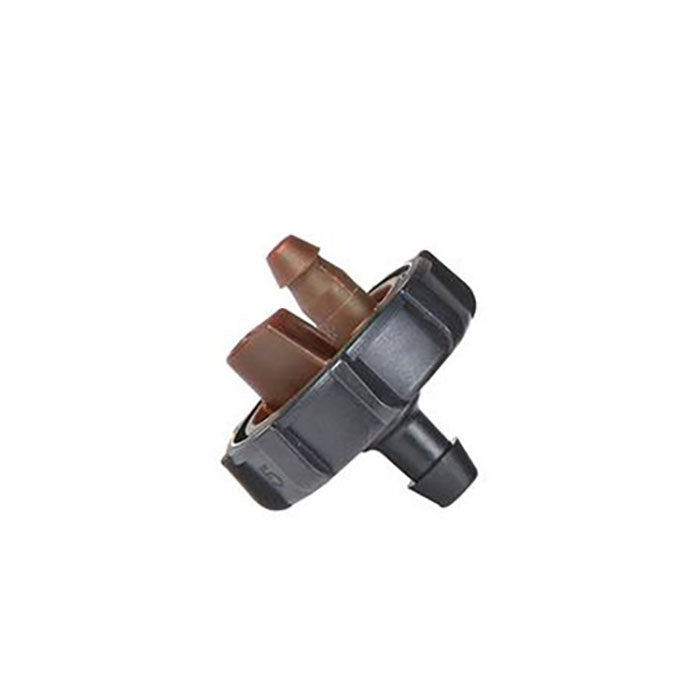

- .5 GPH color code – brown

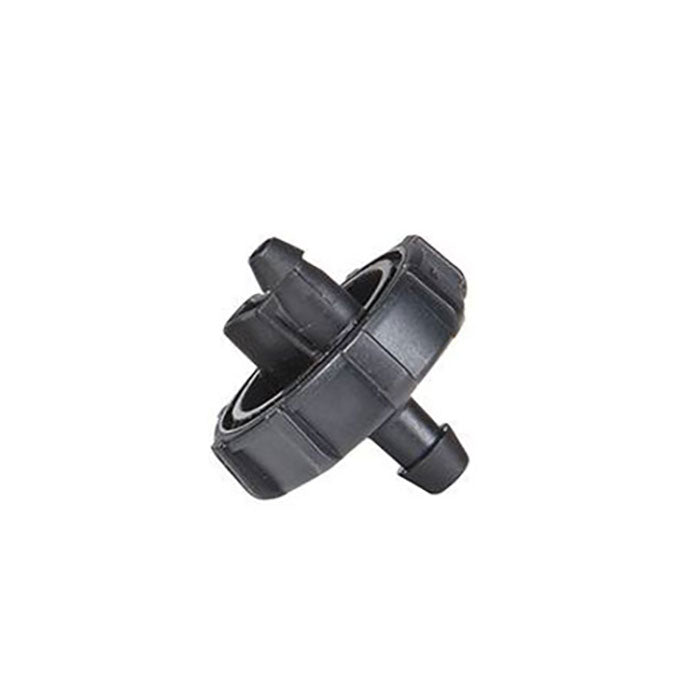

- 1 GPH color code – black

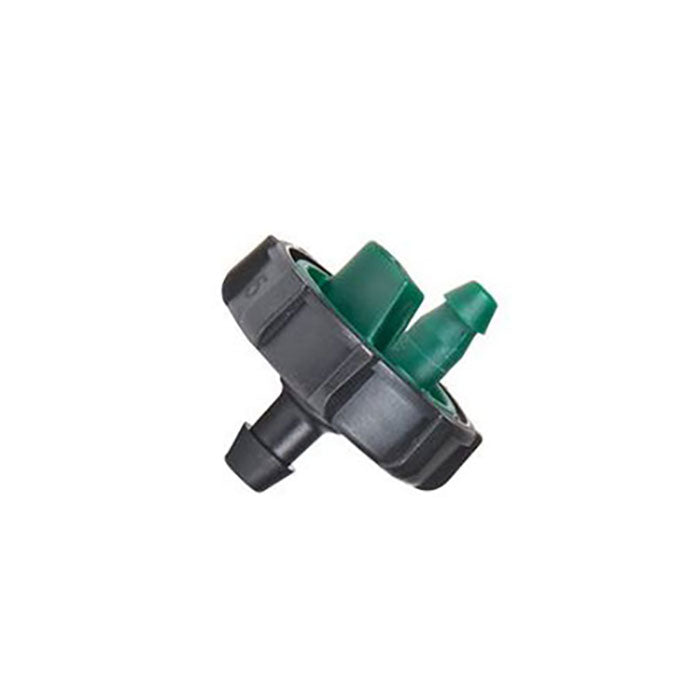

- 2 GPH color code – green
- Inlet side: 1/4" barb
- Filter requirement: minimum of 150 mesh
- Material: polypropylene
| Brand | DIG |
|---|---|
| SKU | DIG-BDE |
| Height (in.) | No |
| Width (in.) | No |
| Length (in.) | No |
| Warranty (*Spec-Box) | No |
| Hazmat? | No |
| UPC | No |
| N-P-K | N/A |
| Nutrient Application | N/A |
| Nutrient Type | N/A |
| OMRI Certified | N/A |
| Nutrient Material Type | N/A |
| Maintenance Information | No |
