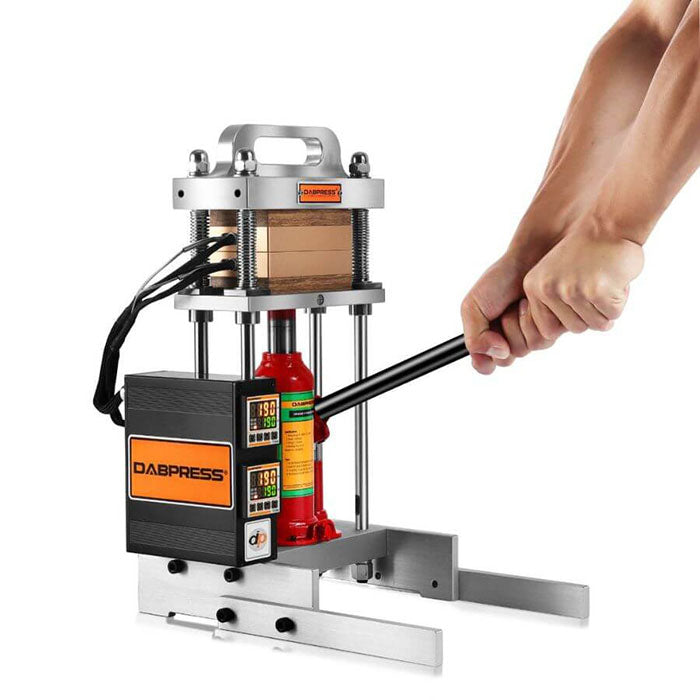

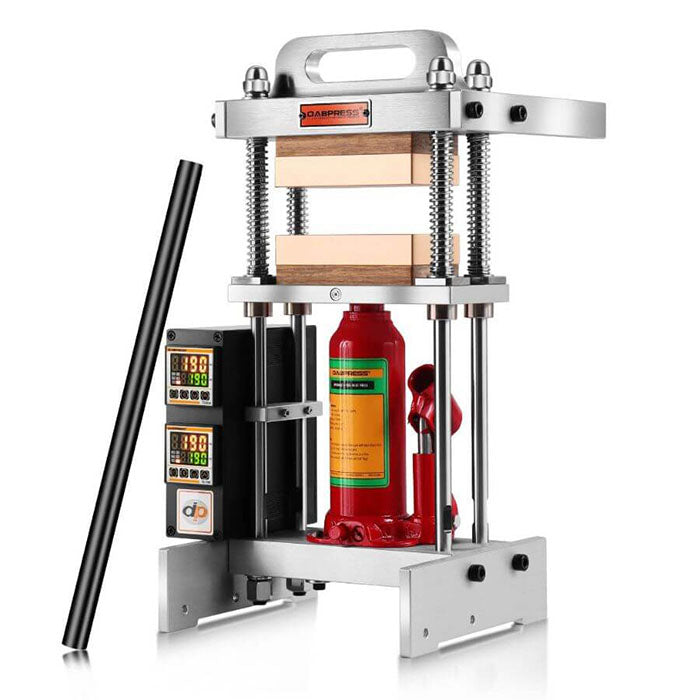

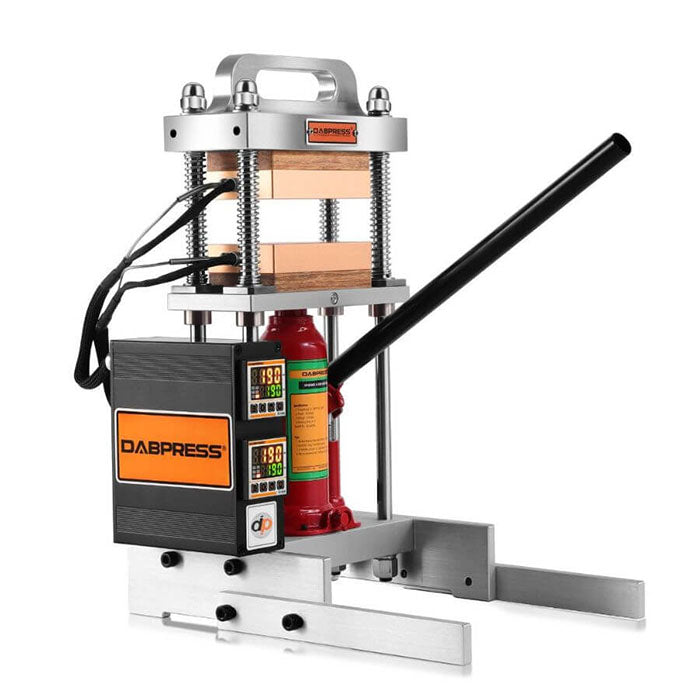

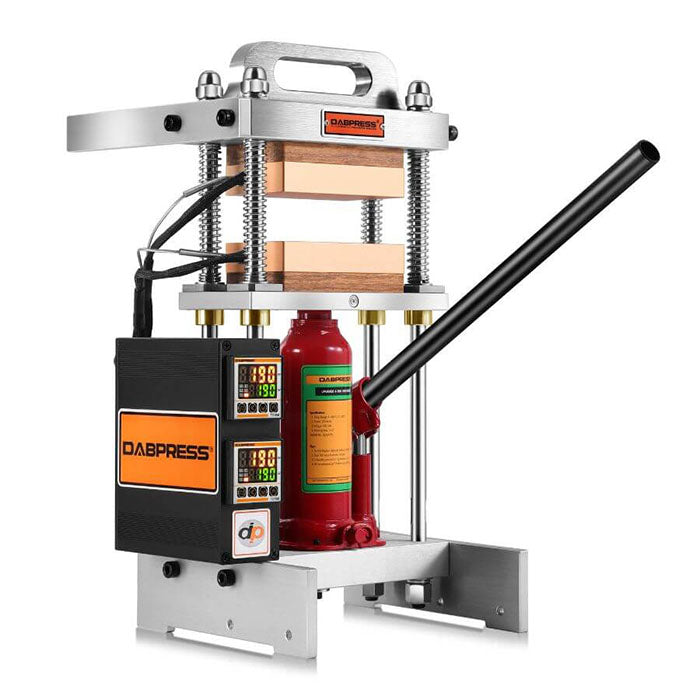

DABPRESS 4 Ton Starter Rosin Press - 3x5 Heated Platens - 14g sift or 10g flower with a 4-ton heat press
Choose between the Rosin Press Only or the Rosin Press + Accessory Bundle
The Rosin Press + Accessory Bundle includes the following:
- 1 x 4 Ton Rosin Press Machine
- 1 x Variety Rosin Press Bags
- 1 x Round Stainless Steel Pre Press Mold
- 1 x Collection Tool Set
- 1 x Silicone Mat
Upgraded Highlights
- Dual Heating, Dual thermocouple
- Upgraded extra machine legs, installed on top for rosin driptek, bottom to prevent the machine from falling over.
- Provide the engineer mode instruction to protect the controller from being locked.
Features & Benefits

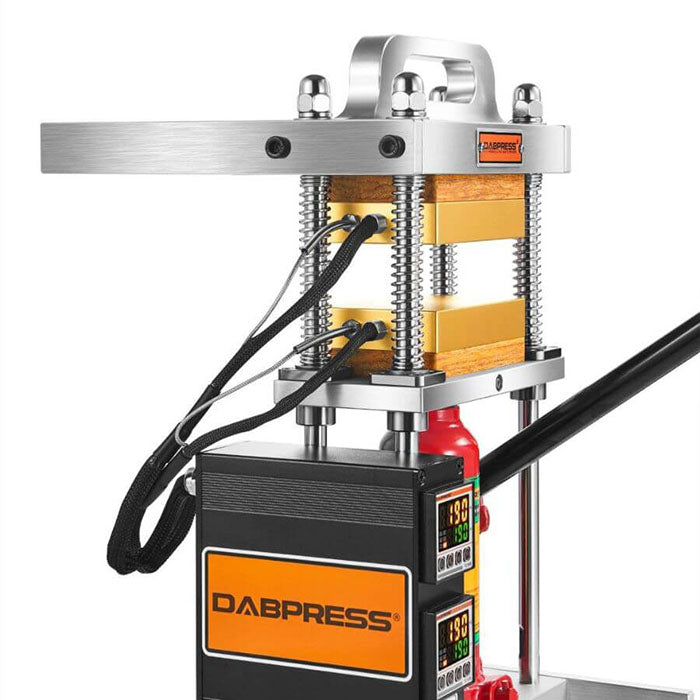

- 3"x5" Anodized Heated Platens - Capable of squeezing up to 10 grams of materials, and easy to clean the working surface.
- Excellent Thermal Insulation Effect - Reduce heat transfer with a wood insulator guarantees quick heating-up and protects the bottle jack from overheating.
- Artcraft Durable Frame - Made of anodized 6061 aluminum and 4-piece stainless steel chrome rods - non-rusting and durable.
- Accessories Recommended - Pairs well with cylinder pre-press mold and 2x4" rosin filter, achieving and maintaining optimal pressure utilizing a vertical filter build, and a pressed puck size of 2.4 sq/in.
- Replaceable Bottle Jack and Controller - The bottle jack and PID temp controller allow replacing easily by the end-user, so as to get a long service life.
How to Avoid the Filter Bags from Blowing Out?
- Remove excess stems from flowers.
- Use less material in your filter bag.
- Preheating your material first to get it melty before you begin to apply pressure.
- Apply the pressure more slowly.
Specifciations
- Temperature Range: 0-399F
- Power: 500 Watts
- Voltage: 110V
- Total Weight: 32.6 lbs
- Package Dimension: 22" x 14" x 12.6"
- Frame Dimension: (H) 45cm x (W) 22.5cm x (D) 21.5cm
- PID Temp Controller Box Dimension: (H) 15cm x (W) 11.5cm x (D) 6.8cm
- Working Surface: 3" x 5"
- The tonnage of the Original Bottle Jack: 4 Ton
- Height of Original Bottle Jack: 7.3"
- Clearance between Upper and Bottom Platens: 33mm/1.3"
| Brand | Dabpress |
|---|---|
| SKU | DP-BJ4T35-US |
| Weight (lb.) | 32.6000 |
| Prop 65 | No |
| Length (in.) | 22 |
| Width (in.) | 14 |
| Height (in.) | 12.6 |
| Warranty (*Spec-Box) | 1 Year |
| Lead Time | Ships in 3-7 business days |
| Hazmat? | No |
| UPC | 600736913812 |
| Stop Sale | No |
| ETL Listed | No |
| UL Listed | No |
| Case/Pack/Pallet Amount | No |
| Rosin Press Type | Hydraulic |
| Plate Size | 3" x 5" |
| Plate Material Type | Anodized Aluminum |
| Temperature Range | 0-399 F |
| Temperature Control | PID Controller |
| Temperature Accuracy | No |
| Max. Pressure | 4 Ton |
| Pressure Control | Manual |
| Press Time Range | 0-999 |
| Adjustable Tilt Position | Yes |
| Air Compressor (*Spec-Box) | Not Required |
| Amps | No |
| Voltage (*Spec-Box) | 110 Volts |
| Exact Watts (*Spec-Box) | 500 Watts |
| Power Cord(s) Included | No |
| Power Cord Length | No |
| Maintenance Information | No |
