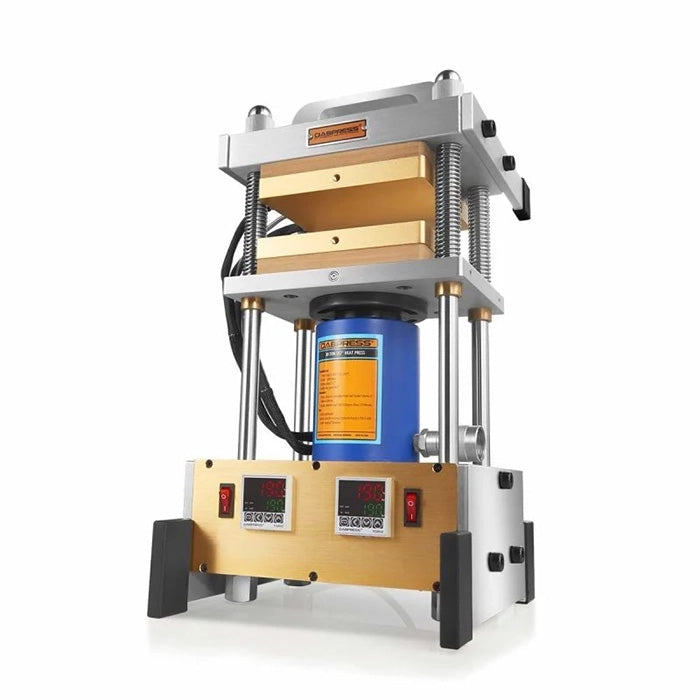

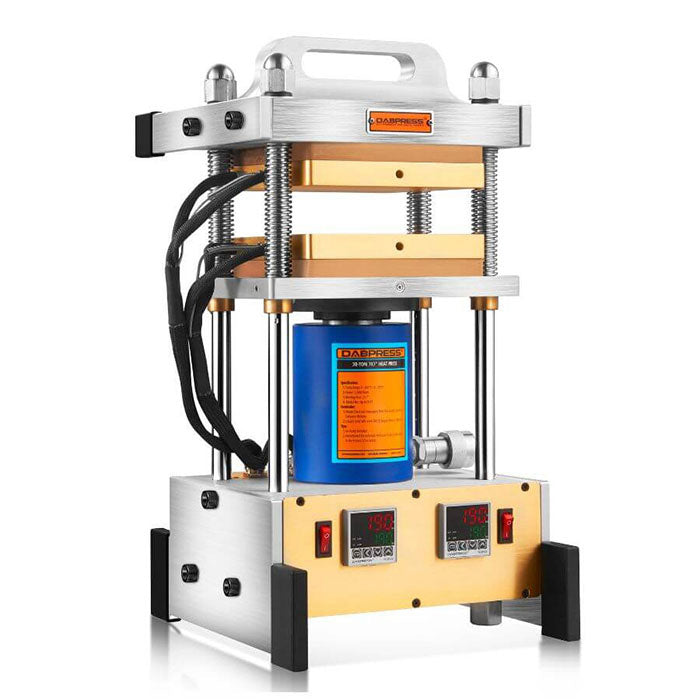

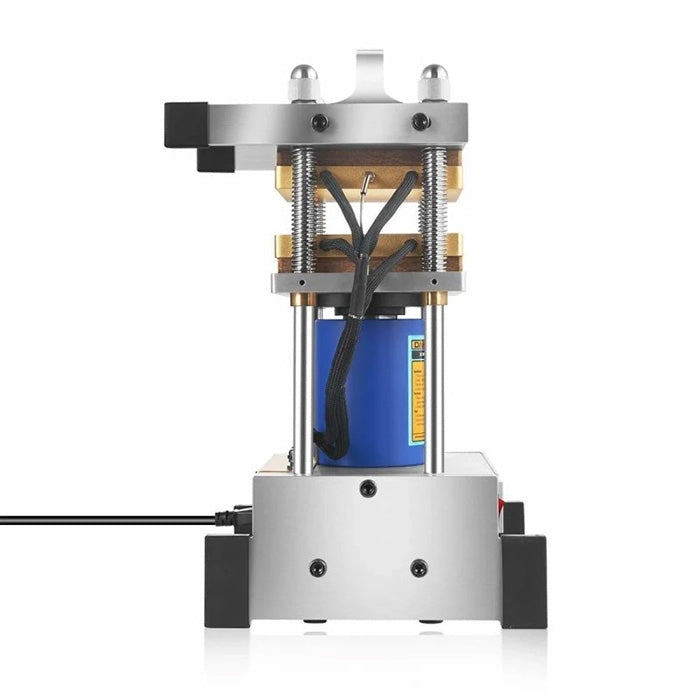

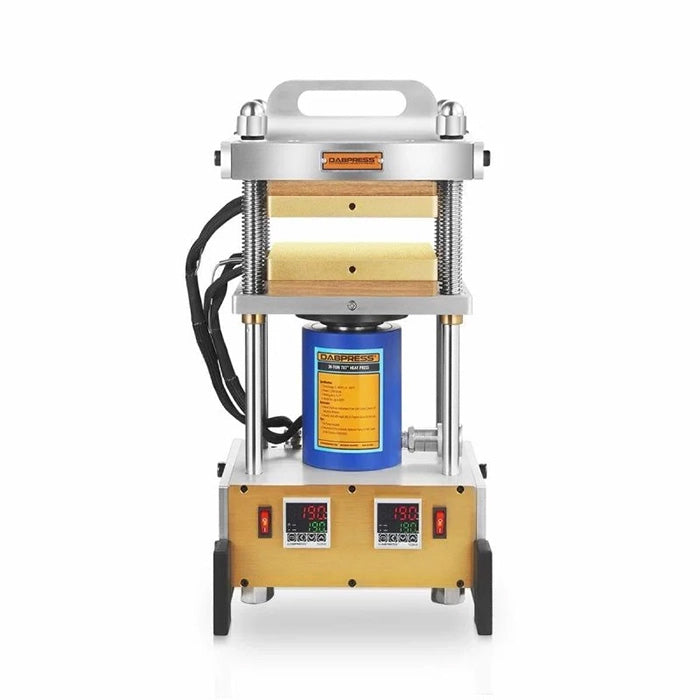

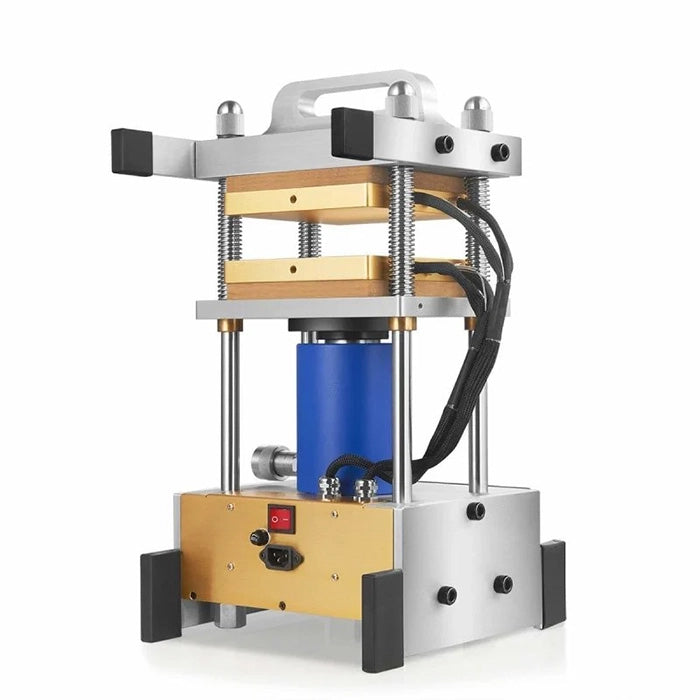

Dabpress 30 Ton Industrial Rosin Press

DABPRESS 30 Ton Rosin Press - Dual 7" x 7" Plates and Dual Accurate PID Temperature Controllers

Features & Benefits

• Very Durable Mount - 84-Pound Heat Press - The mount is made of 6061 aluminum, 4 pieces of chrome steel posts, and a 30-ton cylinder with a large flat saddle. The one-time forming aluminum base makes the equipment overweight, but it also supports long-term stable operation during the process of extraction.
• 7" x 7" Heated Platens - The big plates and the 20-ton force of pressure is able to handle up to 3 ounces of materials, but we still recommend loading several 2x4 press bags, and the total weight does not exceed 2 ounces for the better yield.
• Upgraded Temp Controller - 4pc Heating Rods - 2 pieces of cartridge heaters for each plate, 300w per heater, 1,200 watts in total, because the heating plate is too large, it will take about 0 minutes to reach 200F.
• 30 Ton Customized Cylinder Included - It includes an NPT 3/8" female coupler on the cylinder ram, so it allows hooking up the hydraulic hand / electric pump with the NPT 3/8" male coupler, there is a flat saddle on the cylinder ram that helps get the uniform pressure on the pressing bag so as to extend the service life and increase the yield.
• Upgraded PID Temp Controller - Accurate Temp Delivered - The 30-ton heat press set up dual upgraded PID temperature controller - replaceable and pluggable, not only detects and delivers the even temperature but also is easy to replace and maintain.
• No Pump Included - Relative Pump Sold Separately - We recommend a hydraulic hand pump with NPT 3/8" male fitting and it offers more than 30 tons of pressure like BVA P1000 or TEMCo hand pumps for pairing.

Pump for Pairing:

• BVA hydraulic hand pump
• Temco automatic pump

How to Avoid the Filter Bags from Blowing Out?

• Remove excess stems from flowers.
• Use less material in your filter bag.
• Preheating your material first to get it melty before you begin to apply pressure.
• Apply the pressure more slowly.

Specifciations

• Temperature Range: 0-399°F
• Power: 1,200 Watts
• Voltage: 110 Volts
• Net Weight: 80 Pounds
• Working Area: 7" x 7"
• The Distance/Clearance Between Dual Heated Platens: 50mm/1.96 inches.
• The Dimension of the 30-ton Press: 11.8" x (W) x 11.2" (L) x 21"(H)
• The Dimension of the Cylinder: 9 inches in height; 3.5 inches in Diameter
• It spends 10 minutes to reach the set temp 200°F
