CannaFreeze Product Documents
Obtain consistent, reliable results while automating the drying and curing process.
The CannaFREEZE Freeze Dryer Difference
Freeze Drying takes place when the Cannafreeze freeze dryer begins curing by removing all water as water vapor and collects the vapor as ice in its condenser. While the flower is frozen solid during the process and under a deep vacuum, this method of how to cure provides near perfect preservation.
Why should I freeze dry my flower?
- The product retains its size, color, and fragrance. this value added product is better looking, better tasting, and more potent. Freeze dried flower retains more potency than any other drying method.
- Eliminate the possibility of mold and pest contamination.
- The process is very sanitary. The chambers, shelving, and trays are food and pharmaceutical grade stainless steel.
- During the drying process the product is locked in a sealed container and under vacuum. This provides both odor control and security.
- The tray racking systems in Cannafreeze freeze dryers are very space efficient.
- You will obtain consistent, reliable results while automating and fast-tracking the process of curing.
Potency & Added Value
More potent than traditionally dried and cured products with critical quality distinction, allows for the higher retail price point and direct to market benefits vs. traditional practices. We are maintaining potency with no degradation of terpenes resulting in better fragrance and taste while seeing an average of 3-4% increase, allowing for a quality product markup and increased revenue.
Preservation
Preserve more potency and aroma than any other drying method. Stabilize and preserve live biomass for further refinement. Prevents oxidation in concentrates through controlled moisture removal while increasing trichome harvest efficiencies. Essential for stabilization and processing of "live" or "uncured" biomass.
Retention
The biomass retains its shape, size, color, and fragrance. When stored properly in airtight containers, shelf life can exceed 1 year. Gain larger yield retention through loss prevention, increasing your bottom line.
Savings
Alleviate the cost of large curing and drying rooms. Realize a considerable decrease in utility fees and facility maintenance. Save time & money through labor cost reduction.
Hang Dried vs Freeze Dried
When you hang dry a plant for 18-30 days to dry, the enzymes that cause plant senescence deteriorate as they act on the chlorophyll. This is why it takes so long to get rid of the "green" or grassy taste.
In freeze-drying, all the cell walls are cracked open making it is easy for the biomass to absorb moisture from the air. When freeze-dried flower comes out of a Cannafreeze dryer and is exposed to an oxygen-rich atmosphere - the oxygen, moisture, and enzymes (which are still 100% potent) will cause degradation of chlorophyll in 1-4 hours depending on humidity. This produces a cured product as if it were traditionally dried and cured for 30 days.
Which CannaFREEZE Freeze Dryer should you choose?
DX Series
All DX Series Freeze Dryers range from 20 lb. to 220 lb. process full loads in 3-5 days. DX series is a price-sensitive option and provides the full cure experience in a few days. CannaFREEZE introduces the newest concept in freeze dryers designed to produce perfectly preserved flower. All CannaFREEZE freeze dryers are food-grade safe.

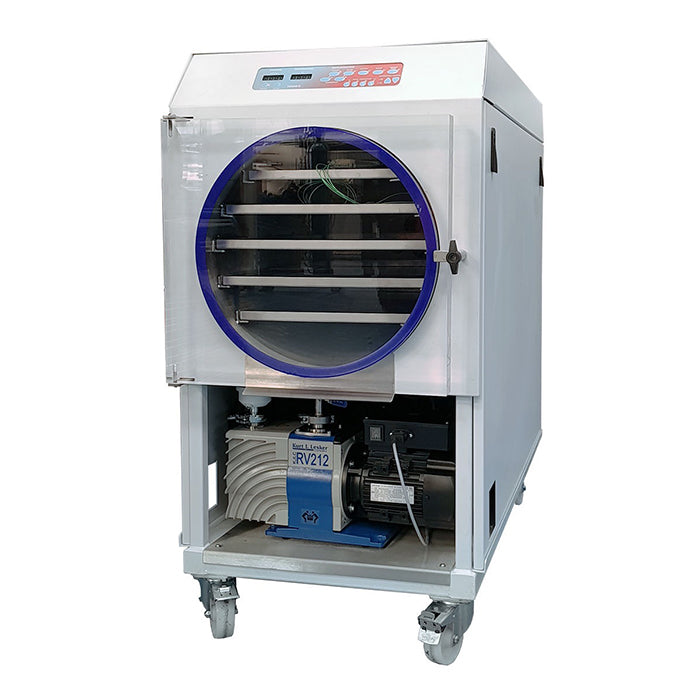

Model: 18DX30
Overall Dimensions: 24.8 inches wide x 50.4 inches long x 45.7 inches high
Specimen Chamber Size: 17.75 inches in diameter x 29.5 inches long
Tray Area: 5 shelf levels with 12.9 square feet of tray area (solid or mesh stainless steel trays)
Load Size: Load up to 22 pounds of wet flower

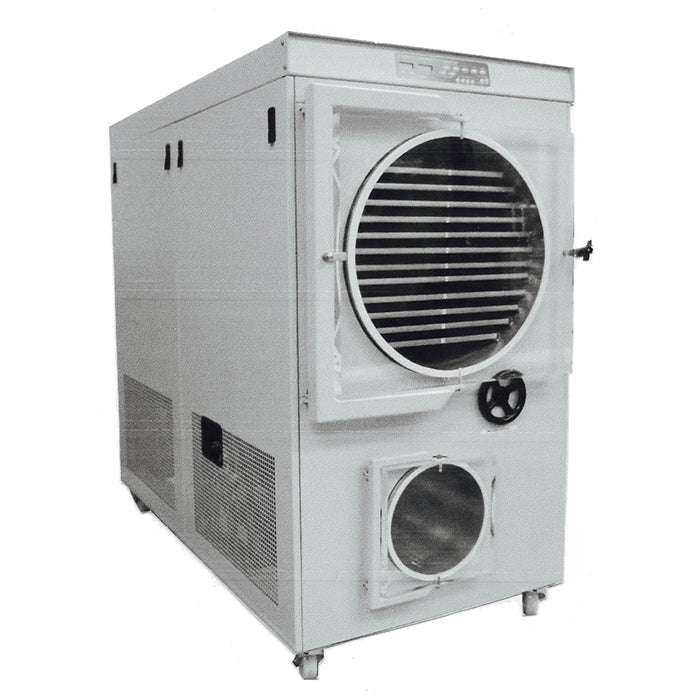

Model: 24DX55
Overall Dimensions: 35.5 inches wide, 63 inches long, and 57 inches high
Specimen Chamber Size: 24 inches in diameter x 55 inches long
Tray Area: 9 shelf levels with 54 square feet of tray area (solid or mesh stainless steel trays)
Model: 36DX67
Overall Dimensions: 43.5 inches wide, 72 inches long, and 71 inches high
Specimen Chamber Size: 36 inches in diameter x 67 inches long
Tray Area: 9 shelf levels, 18 trays, with 97 square feet of tray area (solid or mesh stainless steel trays)
Load Size: Load up to 120 pounds of wet flower

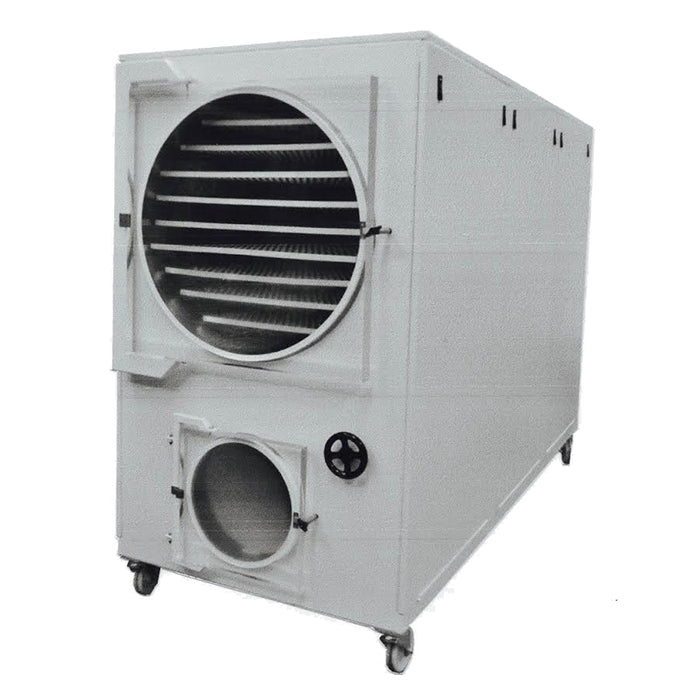

Model: 36DX98
Overall Dimensions: 43.5 inches wide, 106 inches long, and 71 inches high
Specimen Chamber Size: 36 inches in diameter x 98 inches long
Tray Area: 9 shelf levels, 27 trays, with 183 square feet of tray area (solid or mesh stainless steel trays)
Load Size: Load up to 220 pounds of wet flower
FC Series
The FC Series Freeze Dryers are short cycle, high-performance units featuring stainless steel shelves conducting hear directly to the product. Freeze drying conduction does not require high shelf temperatures and is instrumental in retaining freshness. These production series freeze dryers are designed for food and industrial processes. The entire process from initial freezing to final drying can be done in a single pre-programmed cycle. All the FC Series Freeze Dryers range from 33 lb. to 1,100 lb capacity and can process full loads in 24-36 hours. The FC Series are large and completely programmable with 19" HML screen control.

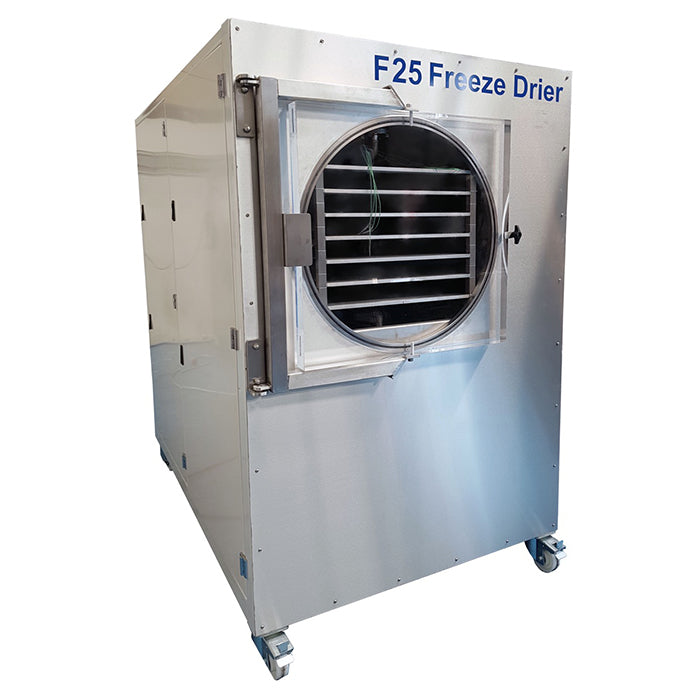

FC 25
Overall Dimensions: 59 inches wide, 86 inches long, and 82 inches high
Specimen Chamber Size/Tray Area: 6 shelf levels, plus 1, with 28 square feet of tray area (solid stainless steel)
Load Size: Freeze dry from 33 - 66 pounds / 24 - 36 hours depending on product type

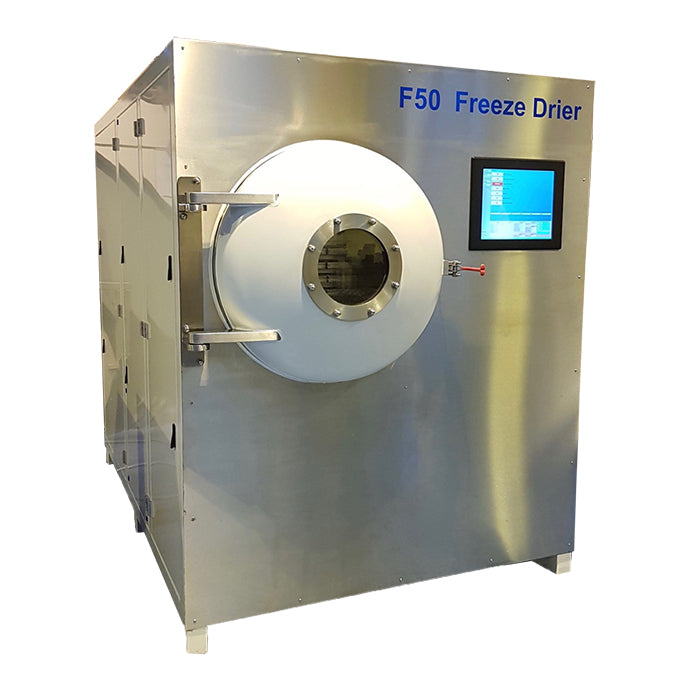

FC 50
Overall Dimensions: 67 inches wide, 98 inches long, and 83 inches high
Specimen Chamber Size/Tray Area: 9 shelf levels, plus 1, with 56 square feet of tray area (solid stainless steel)
Load Size: Freeze fry from 55 - 110 pounds / 24 - 36 hours depending on product type

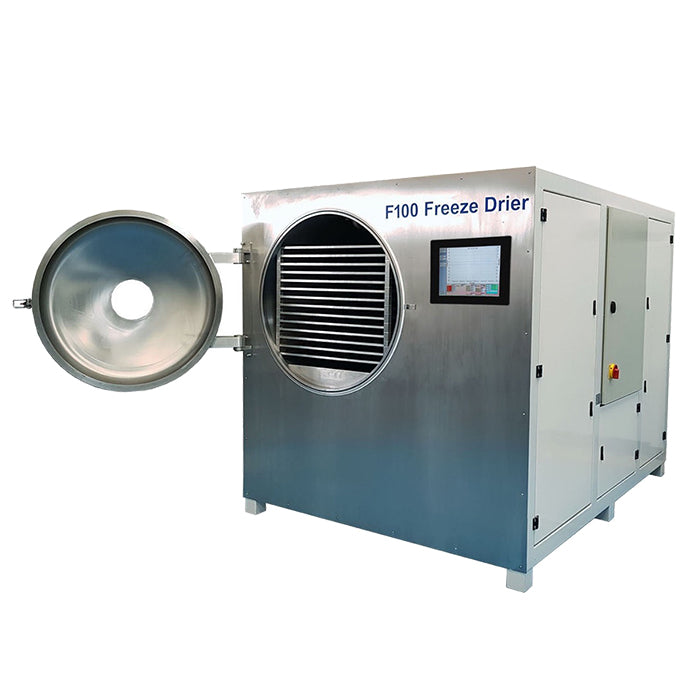

FC 100
Overall Dimensions: 79 inches wide, 122 inches long, and 86 inches
Specimen Chamber Size/Tray Area: 13 shelf levels, plus 1, with 112 square feet of tray area (solid stainless steel)
Load Size: Freeze dry from 110 - 220 pounds / 24 - 36 hours depending on product type

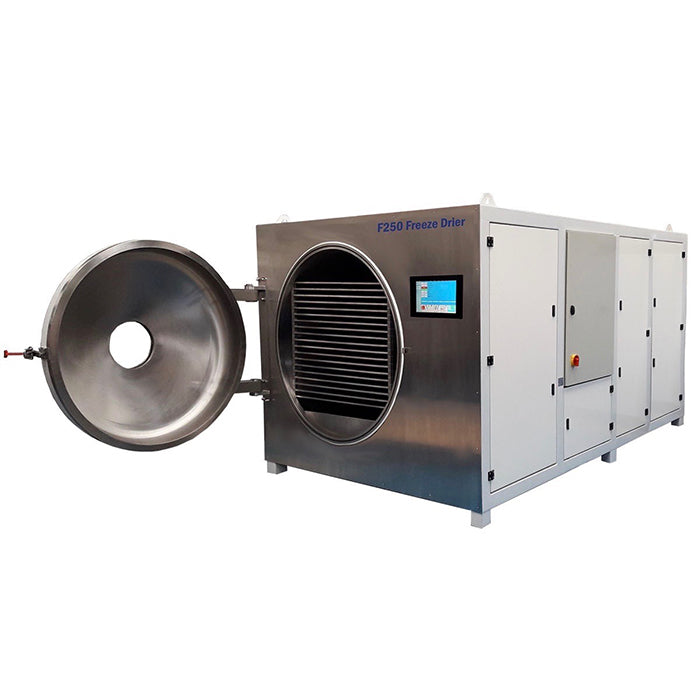

FC 250
Overall Dimensions: 72.8 inches wide, 149.6 inches long, and 86.6 inches high
Specimen Chamber Size/Tray Area: 20 shelf levels, plus 1, with 280 square feet of tray area (solid stainless steel)
Load Size: Freeze dry from 275 - 550 pounds / 24 - 36 hours depending on product type
FC 500
Overall Dimensions: 86.6 inches wide, 196.9 inches long, and 94.5 inches high
Specimen Chamber Size/Tray Area: 23 shelf levels, plus 1, with 549 square feet of tray area (solid stainless steel)
Load Size: Freeze dry from 550 - 1,100 pounds / 24 - 36 hours depending on product type
Request more information:
| Brand | CannaFreeze |
|---|---|
| SKU | CANNAFREEZE |
| Weight (lb.) | 100.0000 |
| Prop 65 | No |
| Height (in.) | 100 |
| Width (in.) | 100 |
| Length (in.) | 100 |
| Warranty (*Spec-Box) | No |
| Lead Time | No |
| Hazmat? | No |
| UPC | No |
| ETL Listed | No |
| UL Listed | No |
| Case/Pack/Pallet Amount | No |
| Curing Machine Type | Freeze Dryers |
| Storage Product Type | No |
| Pack Size | No |
| Maintenance Information | No |
CannaFreeze Freeze Dryer Questions & Answers
Q: What sets CannaFreeze freeze dryers apart from using a regular freeze dryer?
A: CannaFREEZE freeze dryers are specifically designed to freeze dry without the removal of valuable chemicals.
Q: How long does it typically take to freeze dry a load in CannaFreeze?
A: Our FC Series freeze dryers produce beautiful results in just 24 - 36 hours. While our DX Series typically take 3 to 5 days to process a full load.
Q: Do I need to pre-freeze my product in a walk-in freezer?
A: No. All of our freeze dryers are designed to freeze your fresh product. You are not required to pre-freeze your product in a walk-in freezer.
Q: What is the biggest advantage of using CannFreeze over a competitor?
A: The biggest advantages are drying and curing the product in only 24 - 36 hours, while eliminating mold, mildew, and bud rot.
Q: What type of monetary savings can I expect by freeze drying instead of hang drying?
A: Freeze drying alleviates the cost of large curing and drying rooms. You will realize a considerable decrease in utility costs and facility maintenance, while saving both time and money through labor cost reduction.
Q: Are the CannaFreeze Freeze Dryers programmable?
A: The DX Series are not programmable and require a few minutes of attention each day.
The F Series are fully programmable with a 19-inch HML screen. Product temperature and shelf temperature is constantly monitored and logged. The entire process from initial freezing to final drying can be done in a single preprogrammed cycle.
