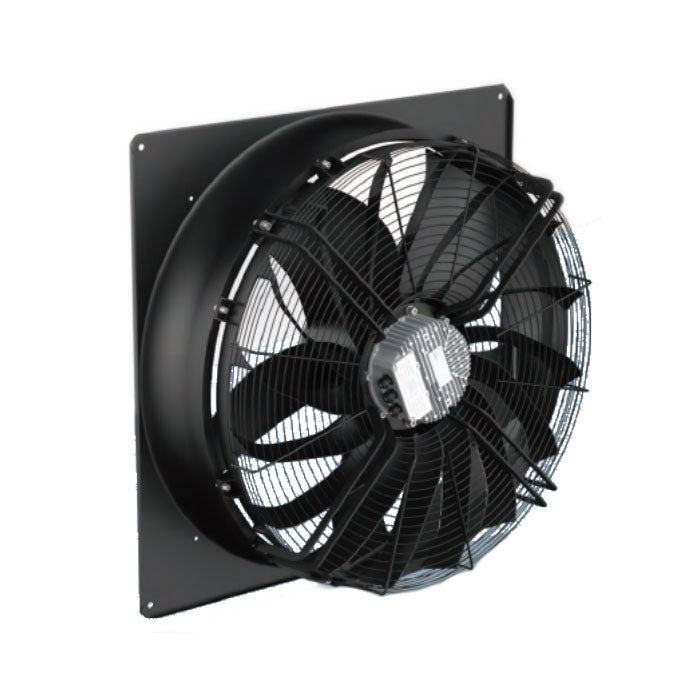

BioTherm Solutions Horizontal Air Flow Fan Spec SheetHorizontal Airflow Fans
Horizontal airflow fans provide enhanced air circulation throughout a growing space to aid plant health by uniformly distributing air, humidity, and CO2. By enhancing airflow, growers can stamp out stagnant air pockets and utilize their dehumidifiers, CO2 systems, and other climate control equipment more effectively.
Given their aerodynamic design, growers can use these HAF fans more economically compared to basket-style HAF or oscillating fans.
- Voltage: 220 Volt
- Diameter Sizes: 14" 20"
Specifications for the BioTherm HAF Fans
| Model No. | GAF-14 |
|---|---|
| Voltage - (VAC) | 220 |
| Frequenzy - (Hz) | 50/60 |
| Speed - (RPM) | 1700 |
| Input Power - (W) | 170 |
| Current - (A) | 1.2 |
| Working Temp - (min/max F) | -4/+140 |
| Weight - (kg) | 5.2 |
| Model No. | GAF-20 |
|---|---|
| Voltage - (VAC) | 220 |
| Frequenzy - (Hz) | 50/60 |
| Speed - (RPM) | 1430 |
| Input Power - (W) | 650 |
| Current - (A) | 4.2 |
| Working Temp - (min/max F) | -4/+140 |
| Weight - (kg) | 12.5 |
| Brand | BioTherm Solutions |
|---|---|
| SKU | BT-HAF |
| Height (in.) | No |
| Width (in.) | No |
| Length (in.) | No |
| Warranty (*Spec-Box) | No |
| Hazmat? | No |
| UPC | No |
| N-P-K | N/A |
| Nutrient Application | N/A |
| Nutrient Type | N/A |
| OMRI Certified | N/A |
| Nutrient Material Type | N/A |
| Maintenance Information | No |
