AXEON Water Technologies Product Documents

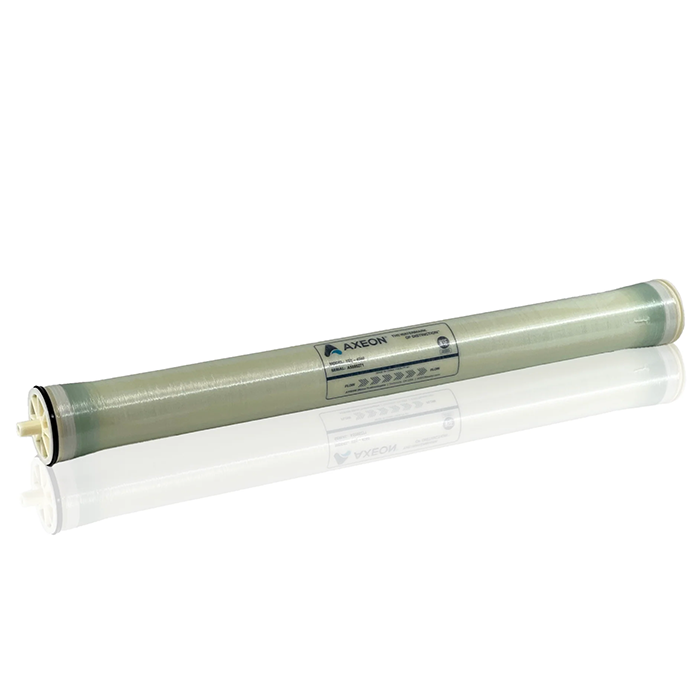

XE1 SpecsheetAXEON® XE1–Series Membrane Elements offer enhanced performance and extra energy savings for reverse osmosis systems by operating at a low applied pressure of 100 psi with a nominal rejection rate of 99.2%. AXEON XE1–Series are fiberglass wrapped, NSF-61 Certified and manufactured in a state-of-the-art, ISO–9001 compliant automated rolling facility and are shipped dry for extended shelf life.
Benefits:
- NSF-61 Certified
- Extra-low Operating Pressure
- Fiberglass Wrapped for Enhanced Durability
Specifications:
- Description: XLE-4040
- Applied Pressure (psi / bar): 100 / 6.89
- Permeate Flow Rate (gpd / m³/d): 2400 / 9.09
- Nominal Salt Rejection %: 99.20
Operating Limits:
- Membrane Type: Polyamide Thin-Film Composite
- Maximum Operating Temperature (°F / °C): 113 / 45
- Maximum Operating Pressure (psi / bar): 600 / 41
- pH Range, Continuous Operaiton: 2 - 11
- pH Range, Short Term Cleaning (30 Min.): 1 - 13
- Maximum Feed Silt Density Index (SDI): 5
- Chlorine / Chloramine Tolerance (ppm): 0
- Maximum Feed Flow Rate (gpm): 14
| Brand | AXEON Water Technologies |
|---|---|
| SKU | 211757 |
| Weight (lb.) | 7.6000 |
| Height (in.) | 5 |
| Width (in.) | 5 |
| Length (in.) | 45 |
| Warranty (*Spec-Box) | No |
| Lead Time | This product ships in 1-2 business days |
| Stop Sale | No |
| UPC | No |
| Prop 65 | No |
| Case/Pack/Pallet Amount | No |
| Gallons Per Day (*Spec-Box) | No |
| System Ratio Waste:Clean | No |
| Inlet Tubing Size | No |
| Product Tubing Size | No |
| Waste Tubing Size | No |
| Gallons Per Hour | No |
| Min. NACL Rejection | No |
| Min. Feed Pressure | No |
| Recommended Feed Pressure | No |
| Operating Temperature | No |
| Operating pH | No |
| Nominal % Rejection | No |
| Max TDS | No |
| Max Hardness | No |
| Power Cord Length | No |
| Amps | No |
| Voltage (*Spec-Box) | No |
| Filter Size | No |
| Maintenance Information | No |
