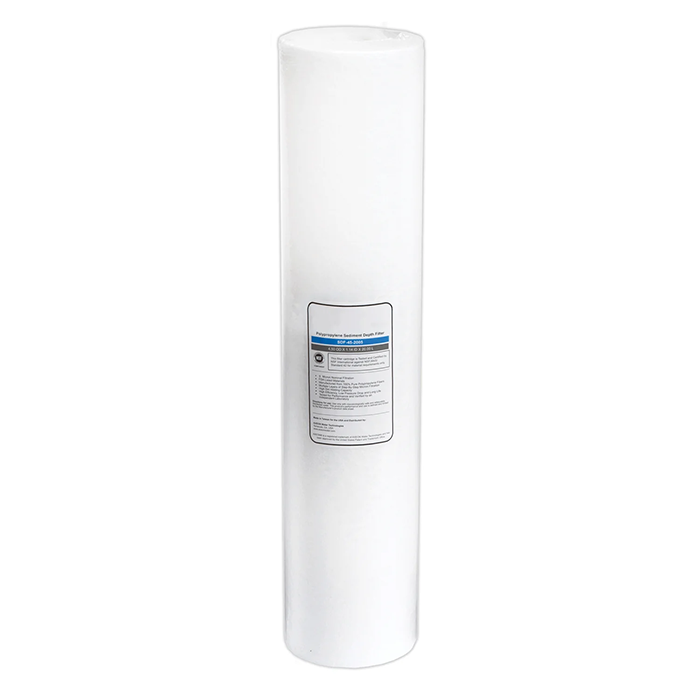

AXEON SDF-45-2005 Polypropylene Sediment Depth Filter Cartridge, 4.5 Inch x 20 Inch

The 200640 AXEON® SDF-45-2005 Sediment Depth Filters provide an economical and high quality option for numerous pre- and post- filtration applications. AXEON SDF-Series cartridges can be used as a single stage of filtration for particulate reduction or as an integrated stage of filtration within a water treatment system.

AXEON 4.5” Diameter SDF-Series Sediment Filters feature a multi-stage depth filtration design that allows for four separate layers of micron filtration. These filters are engineered to create an outside-in flow that allows the outmost layer to capture larger sized particles and the inner layer to capture the stated micron rating of the filter. This results in a much lower pressure drop when compared to other conventional sediment filters. In addition, the trapping of various sized particles layer-by-layer provides a higher dirt holding capacity than standard spun polypropylene and string wound cartridges.

Features:

• Manufactured from 100% pure polypropylene fibers
• Surfactant, binder and adhesive free
• Graded density for higher dirt holding capacity
• High chemical resistance
• Outside-In flow technology
• Four layers of step-by-step micron filtration
• Minimal pressure drop
• Certified to NSF Standard 42
• FDA Listed Materials

Specs:

• Model Number: SDF-45-2005
• Diameter (inch / mm): 4.5 / 114.30
• Length (inch / mm): 20 / 508
• Micron Rating: 5

• AXEON Part Number: 200640
