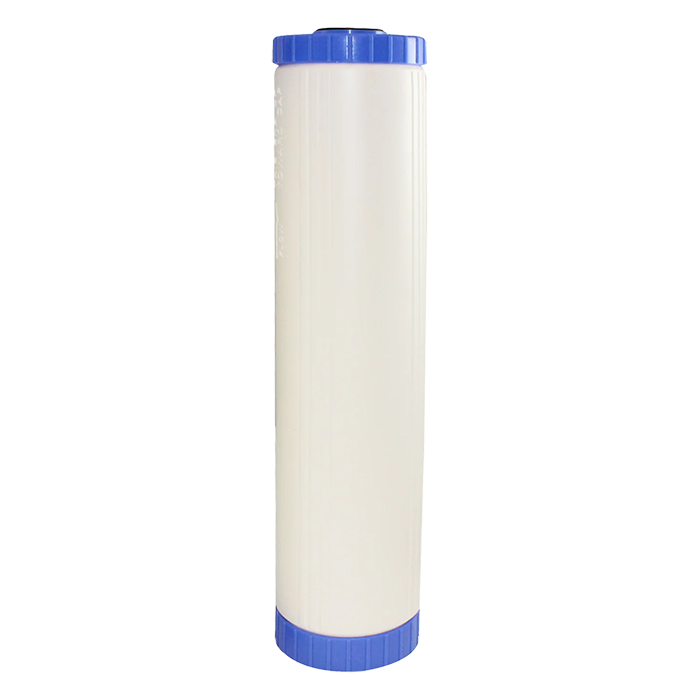

MBR Series SpecsheetAXEON® MBR–Series Cartridges utilize our 2.5" or 4.5" diameter configurations that fit most standard size filter housings. AXEON MBR– Series Cartridges feature a Gel Poly Styrene Cross-linked with DVB mixed bed resin. The DI resin used in these cartridges has been specifically developed to reduce total dissolved solids, including calcium and magnesium carbonate.
AXEON MBR–Series Cartridges provide a solution for a variety of applications that need the removal of ionic contaminants. These cartridges act as excellent post-treatment for reverse osmosis systems as well as being effective for applications in the pharmaceutical, semiconductor, medical and industrial fields.
Features and Benefits:
- High Capacity Flow Rates
- Customizable to Fit Any Application
Specifications:
- Model: MBR-45-20
- Diameter (in / mm): 4.50 / 114.30
- Length (in / mm): 20 / 508
- Filter Media: Mixed Bed DI Resin
- Volume of Media (cubit ft.): 0.18
- CaCO3 Capacity (grains): 2,300 @ 1.5 gpm
Materials of Construction:
- Cartridge Body: High-density Polyethylene (HDPE)
- End Caps: Polypropylene
- Brackets on End Caps: Polypropylene
- Filter Pad on End Cap: Polypropylene
- Gasket: Thermoplastic Elastomer (TPE)
- Sediment Filter: Polypropylene (5 Micron Nominal Rating)
| Brand | AXEON Water Technologies |
|---|---|
| SKU | 200695 |
| Weight (lb.) | 13.0000 |
| Height (in.) | 20 |
| Width (in.) | 4.5 |
| Length (in.) | 4.5 |
| Warranty (*Spec-Box) | No |
| Lead Time | This product ships in 1-2 business days |
| Stop Sale | No |
| UPC | No |
| Prop 65 | No |
| Case/Pack/Pallet Amount | No |
| Gallons Per Day (*Spec-Box) | No |
| System Ratio Waste:Clean | No |
| Inlet Tubing Size | No |
| Product Tubing Size | No |
| Waste Tubing Size | No |
| Gallons Per Hour | No |
| Min. NACL Rejection | No |
| Min. Feed Pressure | No |
| Recommended Feed Pressure | No |
| Operating Temperature | No |
| Operating pH | No |
| Nominal % Rejection | No |
| Max TDS | No |
| Max Hardness | No |
| Power Cord Length | No |
| Amps | No |
| Voltage (*Spec-Box) | No |
| Filter Size | No |
| Maintenance Information | No |
