Autopilot Product Documents
Product InstructionsAccuracy, innovative features, and unbeatable affordability in one small, user-friendly CO2 monitor. To deliver its measurements, the Autopilot APCEM2 Desktop CO2 Monitor features a clear display system that boasts a digital memory chart of recorded CO2, relative humidity, and temperature readings over an adjustable 24-hour or 7-day period. With the industry-new feature Trend Chart, the device is able to trace the above quantities through past minutes, hours, or up to 7 days.
The Autopilot APCEM2 Desktop CO2 Monitor is patent pending, featuring a hook-and-loop fastener along the back that can securely affix a rectangular external battery pack. By maximizing mobility, the device can be easily moved to any room -living room, kitchen, office- to monitor IAQ virtually anywhere. The Autopilot APCEM2 Desktop CO2 Monitor can be powered by almost any standard USB port that provides power, such as a laptop, a wall adapter, or an external mobile battery pack (PowerBank). Battery pack not included.
Features:
- CO2/RH/Temperature monitor on a clear display
- Trend Chart: shows variable Min/Hr/Day/Wk for readings of CO2/RH/Temperature
- 2-Channel Low Drift NDIR (non-dispersive infrared) Gas Sensor
- Audible alarm for low/high CO2 levels
- Alarm function for environmental extremes
- 3 Multicolored LEDs for Easy Reading
- Built-in directory of common plant types of their general CO2 requirements; two slots for custom plant inputs
- Replenish CO2 Reminder: calculates time frame based on usage from past 5 days
- "Green" Power Supply that is compatible with a standard smartphone charger
- View charts as weekly, daily, hourly, or per minute
- Additional settings measure air quality for breathing
- PPM settings for tomatoes, cucumbers, and more
- Multiple options for hanging, mounting or desktop display
- Comes with two Micro USB Cables for power
- USB AC adapter
APC8200 Error Codes:
Rate for Base paired with Clone Nutrient
| Fault Icon | Description Of The Fault | Suggested Actions |
|---|---|---|
| Err4 | IR Lamp Error | Please reconnect power adapter, if the Err4 still appears, please contact the service department. |
| Err5 | Internal Parameter Error | Please reconnect power adapter, if the Err5 still appears, please contact the service department. |
| Err6 | Sensor unit Connect Error | Please reconnect sensor unit and redo power on, if the Err6 still appears, please contact the service department. |
| Err7 | Temperature or Humidity Error | Please turn off power adapter, and put the device in a dry place more than 12 hours. |
| Brand | Autopilot |
|---|---|

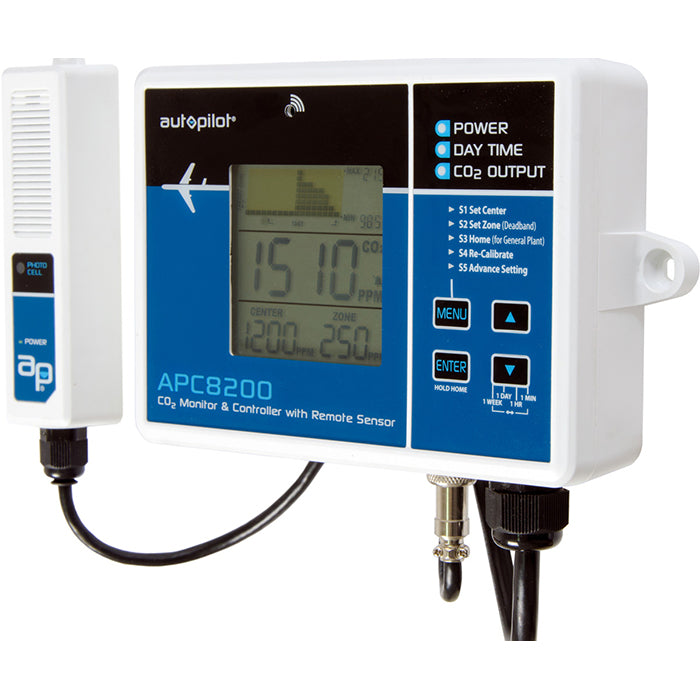

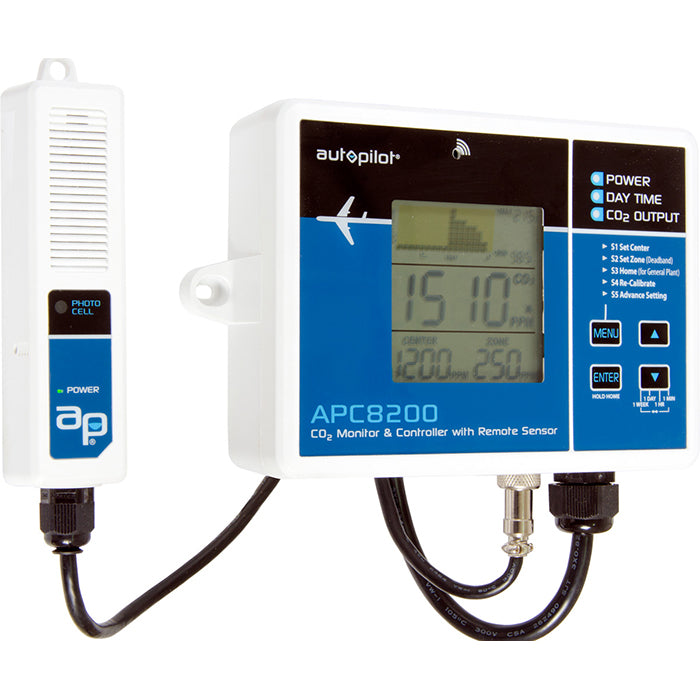

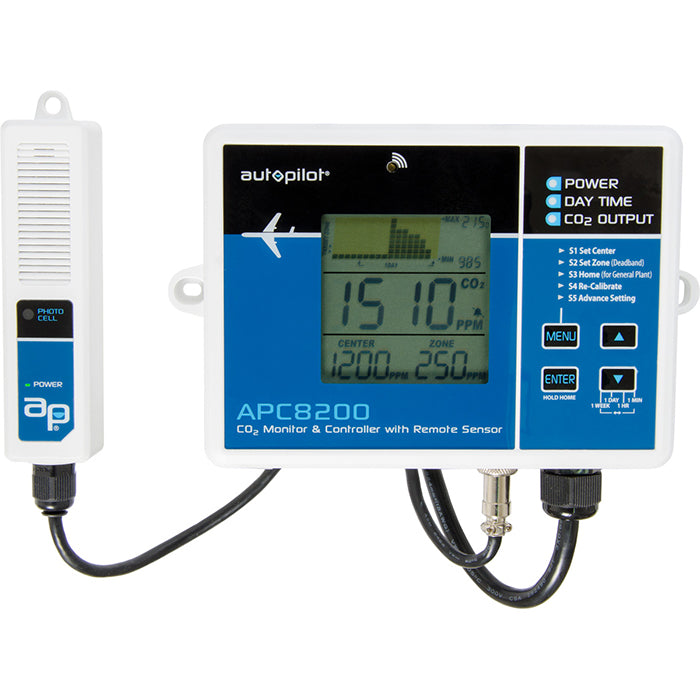

| SKU | APC8200 |
| Weight (lb.) | 2.3000 |
| Lead Time | This item ships in 1-2 Business Days |
| Length (in.) | 9.65 |
| Width (in.) | 7.48 |
| Height (in.) | 3.94 |
| Warranty (*Spec-Box) | 3 Year |
| Prop 65 | No |
| Hazmat? | No |
| UPC | 00638104020701 |
| Stop Sale | AK, HI |
| ETL Listed | No |
| UL Listed | No |
| Case/Pack/Pallet Amount | No |
| CO2 Enrichment | CO2 Controllers, CO2 Monitors |
| Cooling Capacity | No |
| Burners | No |
| CO2 Coverage Area | No |
| CO2 Sensor Type | Remote CO2 Sensor |
| CO2 Function | 0-5000 ppm |
| Number of Zones Controlled | Single Zone |
| CO2 Part Type | No |
| Has Photocell | Yes |
| CFM Rating | No |
| Power Cord(s) Included | No |
| Power Cord Length | No |
| Amps | No |
| Exact Watts (*Spec-Box) | No |
| Voltage (*Spec-Box) | AC 100 ~ 240 VAC |
| Maintenance Information | No |
