Agrowtek Product Documents

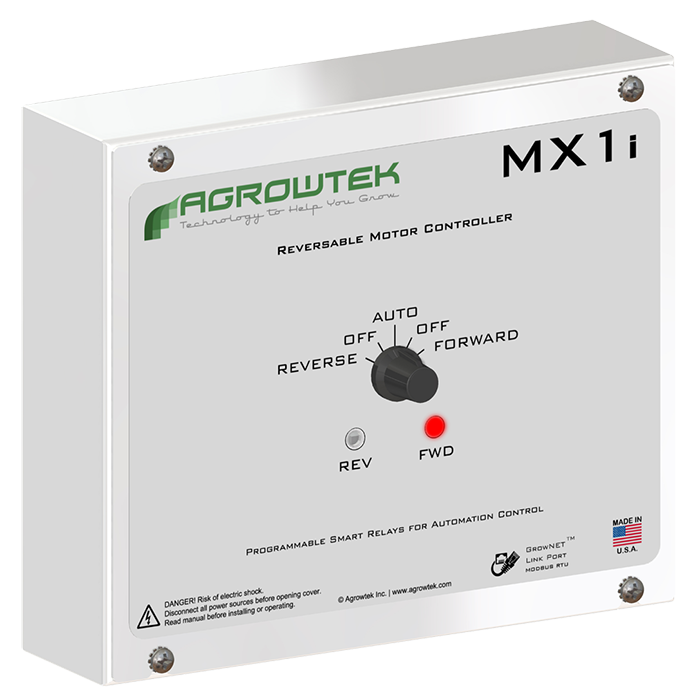

MX1i SpecsheetAgrowtek's MX1i is A Tough & Intelligent Reversable Motor Controller For AC Or DC Motors
The MX1i is designed to operate reversable motors up to 8A/120V for ridge vents, black-out curtains, roll-up side walls, etc. in typical greenhouse applications.
Selector knob on front of relay allows automatic operation, manual operation or off mode. Red LED indicator lights turn on when forward or reverse relays are activated. Built-in 3-second delay prevents accidental damage to motors.
Rotary knob allows easy manual operation, or connect to the either the an Agrowtek SXE Environmental or GCX Cultivation Controller for automated control.
Internal memory logs the life cycle count on each relay.
Includes standard 1/2” EMT knock-outs for conduit installation.
Compatible with 12-24Vdc power supply.
Digital GrowNET™ port allows MODBUS protocol control on RS485 bus networks for custom applications. If you're looking to use an onsite PC the MX1i can be controlle via the LX1 AgrowLink.
Available in:
- AC 120V / 8A Model
- DC 30V / 8A Model
Made in USA.
| Brand | Agrowtek |
|---|---|
| SKU | MX1I-AC |
| Weight (lb.) | 3.0000 |
| Lead Time | This product ships in 2 Weeks |
| Length (in.) | 7 |
| Width (in.) | 6 |
| Height (in.) | 3 |
| Warranty (*Spec-Box) | 1 Year |
| Hazmat? | No |
| UPC | No |
| Stop Sale | No |
| Prop 65 | No |
| ETL Listed | No |
| UL Listed | No |
| Case/Pack/Pallet Amount | No |
| Controller Function Type | Ventilation Control |
| Power Cord(s) Included | N/A |
| Power Cord Length | No |
| Exact Watts (*Spec-Box) | N/A |
| Amps | 8A |
| Voltage (*Spec-Box) | 120V |
| Frequency | No |
| Maintenance Information | No |
