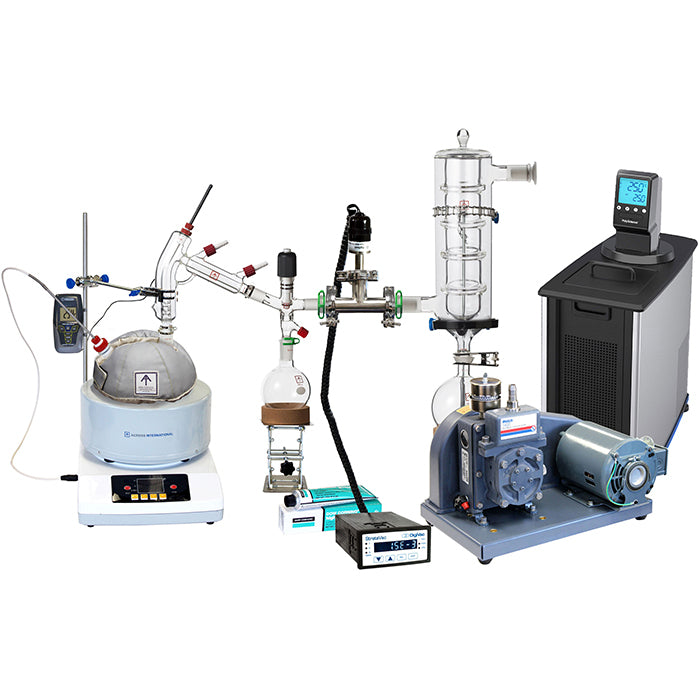

Ai Clear2 short path distillation turnkey package features:
-
Newly re-designed distillation head with larger vacuum jacket for less heat loss during distillation, increased internal diameter for more efficient fractioning and condensation of vapor with zero clogging.
- Ai Heavy wall glassware for durability
- Glass material: high borosilicate glass 3.3
- 3/8" hose barb chilling fluid and vacuum connections
- PolyScience MX -20°C to 135°C 7L capacity compact recirculating chiller
- Ai T1 2 liter dry ice cold trap with scissor jack, designed to be compact and easy to use
-
Known for their ruggedness world-wide, the
Welch 1400
DuoSeal is a durable pump with a superior vapor handling capability
-
Ai
DigiM2
2L digital heating and stirring mantle with individual heating and stirring controls
-
S
et your vacuum level and let us take care of the rest, the JKEM DVR automatic vacuum controller with digital vacuum gauge
Warranty:
One year warranty on DigiM2 mantle, PolyScience chiller and Welch pump.
Glassware does not have warranties. Glassware may have minute blemishes that will not affect the function. If you believe there are imperfections on your glassware, please contact us. We check all our inventory and make sure no defective glassware is sent to our customers.
|
Part description
|
Quantity
|
|
|
DigiVac StrataVac vacuum regulator with digital vacuum gauge 100-240V
|
1 set | |
|
Welch 1400 DuoSeal 0.9 cfm 0.1 micron belt drive dual-stage pump with Welch exhaust oil mist filter - 110V
|
1 pc | |
|
Ai T1 2L glass vacuum cold trap with 24/40 joints (T1-2440)
|
1 set | |
| PolyScience MX -20°C to 135°C 7L capacity recirculating chiller - 110V | 1 set | |
|
Ai DigiM2 2L mantle with one 4-prong clamp - 110V
|
1 pc
|
|
|
Ai 24/40 joint, heavy wall, vacuum jacketed, distillation head with five sets of vigreux, cooling channel, 14/20 temperature inlet port
|
1 pc | |
|
Ai 24/40 joint, heavy wall round bottom 2-neck flask with one vertical neck and one angled neck
|
1 pc | |
|
PTFE 14/20 and 24/40 joint thermometer inlet adapter with Viton gaskets
|
2 pcs | |
|
Ai 24/40 joint, glass material feeding funnel
|
1 pc | |
|
Ai 24/40 single cow adapter with PTFE valve and viton gasket
|
1 pc | |
|
Ai DomeShield 800C rated fabric insulating top for 2L flasks
|
1 pc | |
| Ai 24/40 joint, heavy wall 500mL round bottom receiving flask | 2 pcs | |
| Ai Glass 3/8" Hose Barb Tee Adapter | 1 pc | |
| 24/40 joint, stainless steel keck clip | 2 pcs | |
|
24/40 joint, plastic keck clip
|
3 pcs | |
|
Cork ring stand for 500mL round-bottom flasks
|
1 pc | |
|
4 x 4" stainless steel lab jack (min. height 1.75", max height 6")
|
1 pc | |
| User's manual |
3 pcs
|
|
| Dow Corning high vacuum grease 5.3 oz | 1 pc | |
| Traceable Kangaroo digital thermometer | 1 pc | |
|
KF25 3-way tee flange
|
1 pc
|
|
| 3/8" hose barb to KF25 flange adapter | 1 pc | |
| 3/8" silicone vacuum and chilling tubing | 12 ft | |
| KF25 flexible stainless steel bellow 3.3 ft | 1 pc | |
| PTFE 24/40 to KF25 Flange Adapter | 3 pcs | |
| KF25 quick clamp and centering ring | 5 sets | |
| 24/40 joint seal | 5 pcs |
| Brand | Across International |
|---|---|
| SKU | Clear2w |
| Weight (lb.) | 90.0000 |
| Length (in.) | 25 |
| Width (in.) | 25 |
| Height (in.) | 25 |
| Warranty (*Spec-Box) | No |
| Prop 65 | No |
| Lead Time | No |
| Hazmat? | No |
| UPC | No |
| Stop Sale | No |
| ETL Listed | No |
| UL Listed | No |
| Case/Pack/Pallet Amount | No |
| Distillation Part Type | N/A |
| Flask Holder Max Capacity | N/A |
| Temperature Range | No |
| Maintenance Information | No |
