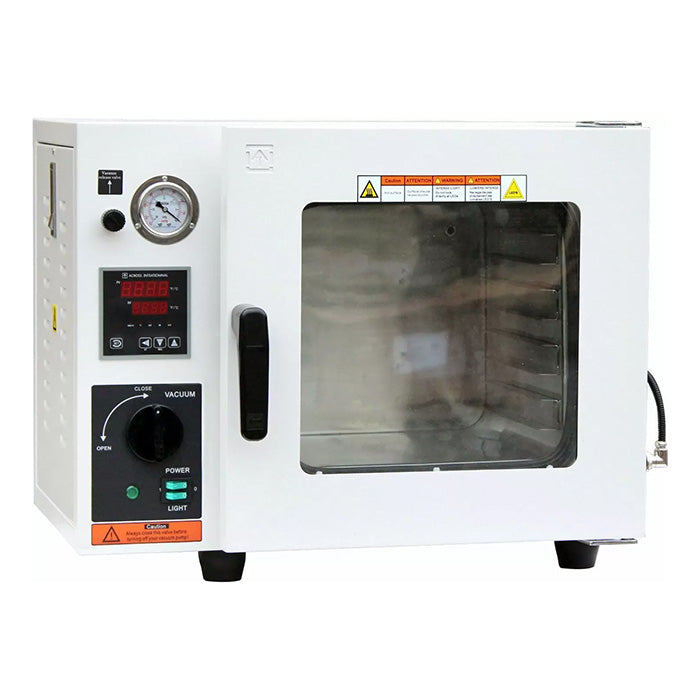

AT09e series digital desktop vacuum ovens feature a 0.9 cubic foot easy-to-clean stainless steel chamber with a large dual-layer tempered glass safety window and small footprint. These ovens can greatly reduce drying time by maintaining a consistent vacuum level within the chamber.

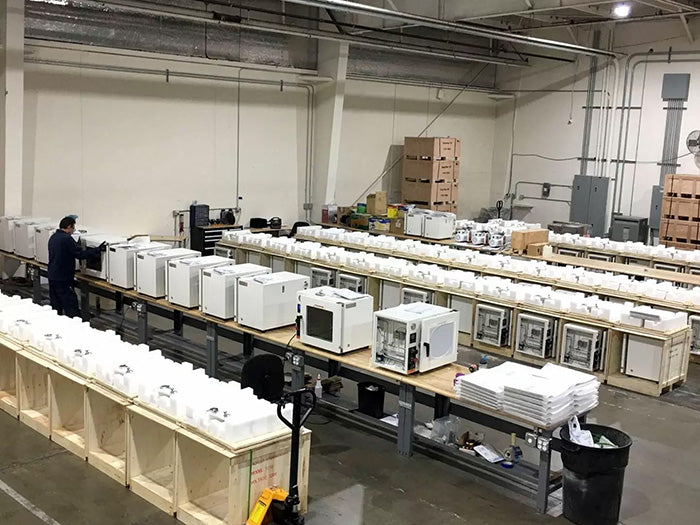

Every one of our vacuum ovens goes through a 2-time 24-hour vacuum leak test, and is 100% quality controlled in New Jersey or Nevada before leaving our facilities.
What's Included
- Ai 0.9 cu ft vacuum oven
- x4 Aluminum shelf
- KF25 quick clamp and centering ring
- Quick disconnect fitting (pre-installed at vent port)
- Led Light Cable
- Users manual
Features & Benefits
- Oil-filled mechanical vacuum gauge provides more accurate reading, longer gauge life and minimizes shipping damage.
- 3rd gen LCD low proportional gain temperature controllers keep your oven temperature accurate.
- Best choice for the curing and converting of oil extracts. With deep vacuum level, they can operate at temperatures which allow the degassing/purging process to occur rapidly, thus increase productivity and allow for the production of superior quality products with minimal processing time.
- Dual layer observation window with 1/2" tempered safety glass.
- 3" thermal insulation prevents heat loss and minimizes the enclosure's outer surface temperature.
- Easy-to-clean stainless steel interior for exceptional durability and ease of maintenance.
- Built-in alarm alerts you when oven has been shut down by safety circuitry due to out of range temperature.
- All ovens shipped from our New Jersey or Nevada location for quick delivery, and come with two year warranty and lifetime US-based parts and service support.
- Guaranteed US based phone and email assistance from an Ai support engineer within 30 minutes

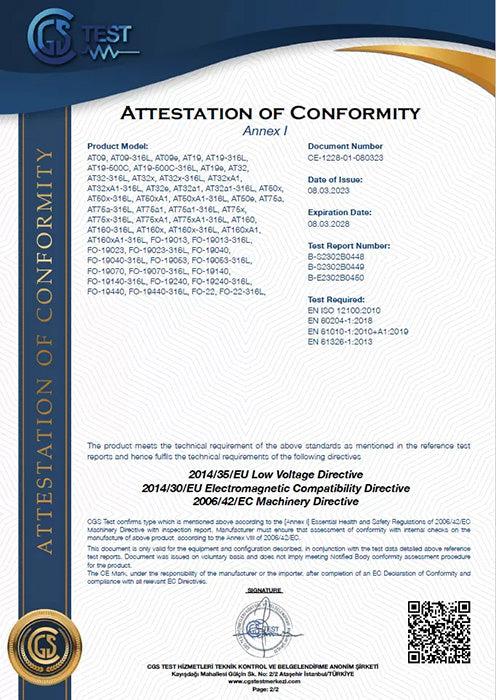

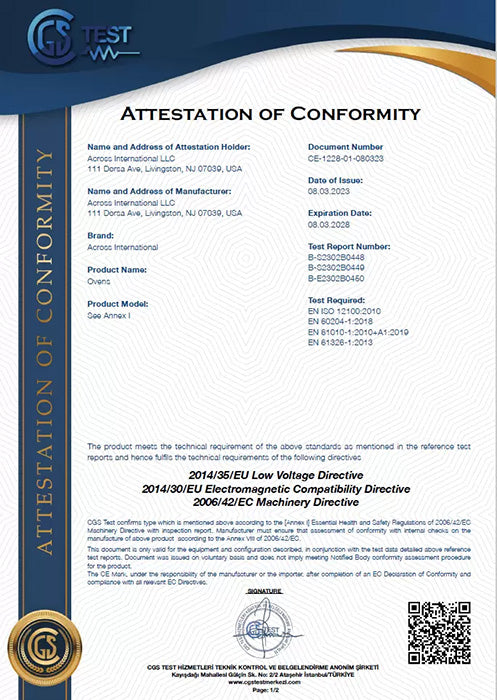

- Manufactured in accordance with
- ISO 9001:2000
- ISO 12100-1:2003, ISO 12100-2:2003
- EN1050:1996, EN294:1992, EN60204-1:2006
- CE
Specifications
| Electrical requirements | 110V or 220V ±10%, 60Hz, 1-PH, 1,500 watts |
| Chamber |
|
| Heater | 3-sided heating (left 400W, right 400W, bottom 700W) |
| Temperature control |
|
| Vacuum |
|
| Weight | Unit: 85 Lbs, shipping: 170 Lbs |
| Unit/shipping weight & dimensions |
|
| Shelves |
|
| Door gasket material | Silicone or Viton |
| Observation window | 1/2" tempered safety glass |
| Safety |
|
| In-door lights | White LED |
| Warranty | 1 year |
| Warranty | CE |
| Brand | Across International |
|---|---|
| SKU | AT09E-220 |
| Weight (lb.) | 155.0000 |
| Prop 65 | No |
| Length (in.) | 28 |
| Width (in.) | 25 |
| Height (in.) | 26 |
| Warranty (*Spec-Box) | 1 Year |
| Lead Time | Ships in 1-2 business days |
| Hazmat? | No |
| UPC | No |
| Stop Sale | AK, HI |
| Case/Pack/Pallet Amount | No |
| Vacuum Oven Temperature Range | Ambient to 150°C |
| Vacuum Oven Capacity | 0.9 Cubic Feet |
| Amps | No |
| Exact Watts (*Spec-Box) | 1500 Watts |
| Frequency | 60 Hz |
| ETL Listed | No |
| UL Listed | No |
| Vacuum Oven Pump CFM | No |
| Vacuum Pump/Accessory Part Type | No |
| Maintenance Information | No |
