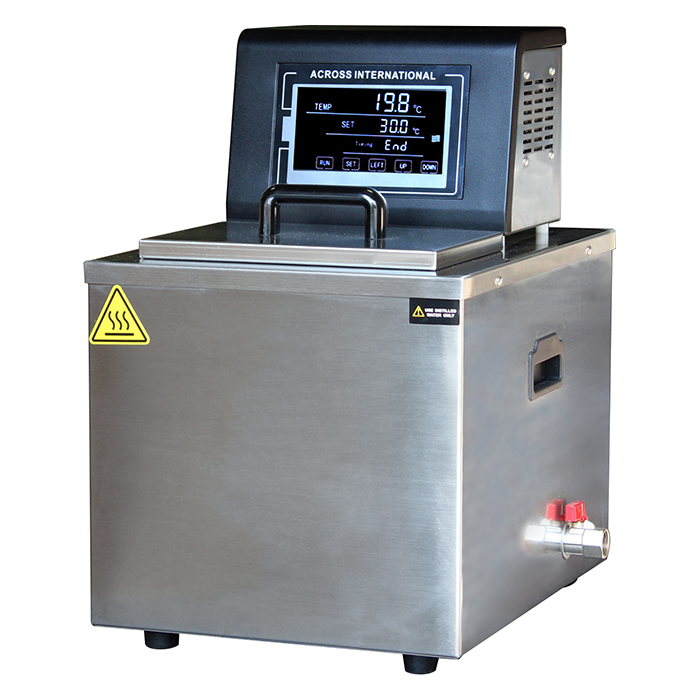

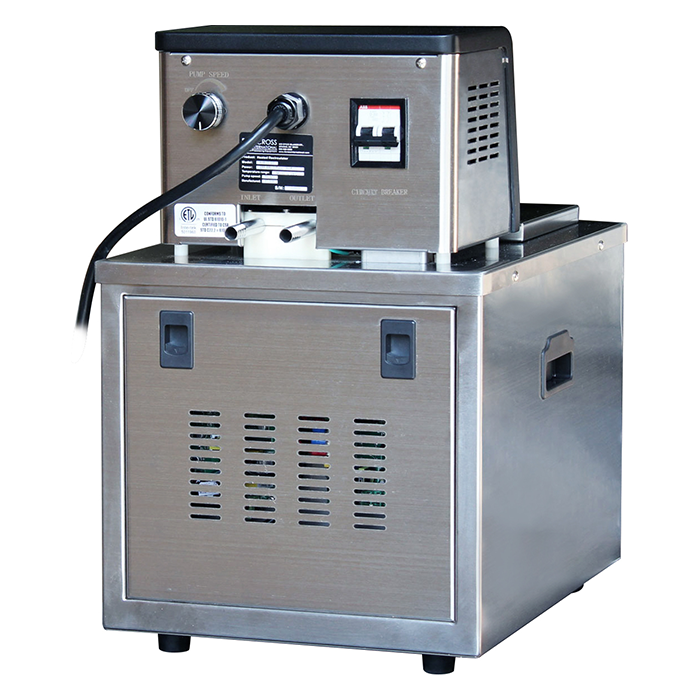

The Ai H100 series heated recirculators offer outstanding performance and high reliability as well as quiet operation and ease-of-use. Powerful force/suction pump provides constant flow rates, while the 2nd generation PID controller gives you the ideal solution when you need precise temperature control.
Included in package: Recirculator, 3/8" tubing (10 ft), User's Manual.
Features:
- ETL tested to UL and CSA standards
- Powerful 2,500 watts heater
- All stainless steel finish
- Adjustable pumping speed up to 20 liters per minute
- 2nd generation 7" TFT touch screen controller

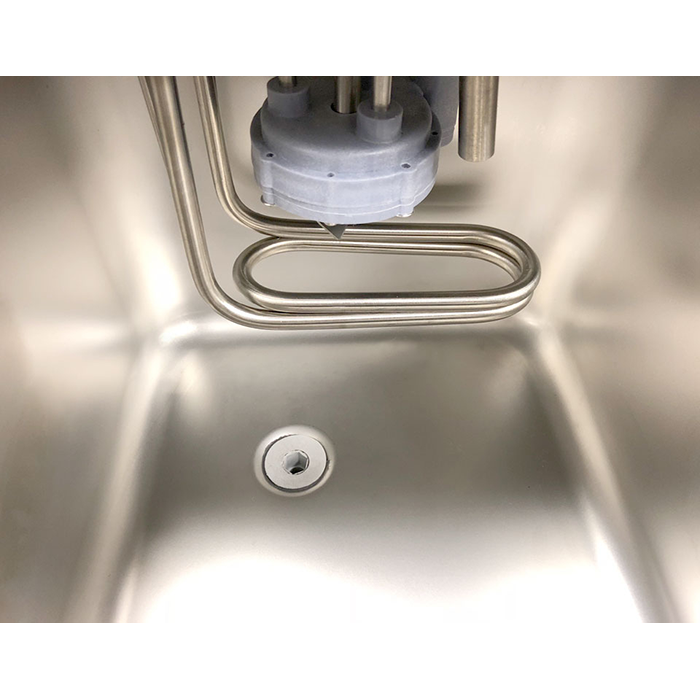

- ANSI standard all stainless steel reservoir
- All steel construction for durability
- Small footprint saves valuable lab space
- Connection tubing included
- Recommended for 2L to 10L distillation systems
AI 100°C Specs
| Model | H100-15SST |
|---|---|
| Temperature Range | Ambient to 100°C (No load) |
| Electrical Requirements | 220V 60Hz 1-Phase 2,600 watts |
| Reservoir: | |
| Dimensions: | 9.5 x 12 x 7.5" (WxDxH) |
| Material: | Type 304 stainless steel |
| Capacity: | 15 liters or 4 gallons |
| Thermo Fluid Connection: | 3/8" hose barb x 2 |
| Thermo Fluid Drain Port: | 3/8" hose barb with on/off valve |
| Temperature Controller: | |
| Type: | Digital microprocessor PID controlled |
| Display: | 7" touch screen |
| Display Unit: | Celsius °C |
| Temperature Step: | 3/8" hose barb with on/off valve |
| Temperature Accuracy: | 3/8" hose barb with on/off valve |
| Temperature Range: | Ambient to 100°C |
| Recirculating Pump: | |
| Pumping Speed: | 20 liters per minute, adjustable |
| Maximum Head: | 16 feet or 5 meters |
| Heating Capacity | 2,500 watts |
| Working Environment | -15°C/5°F to 25°C/77°F, at <66% humidity |
| Built-in swivel casters | No |
| Unit/Shipping Dimensions | 12.5 x 17 x 19.25" / 17 x 20 x 22" (WxDxH) |
| Unit/Shipping Weight | 30 Lbs / 36 Lbs |
| Safety | Short circuit and ground protection |
| Over-current protection | |
| Over-temperature protection | |
| Upper/lower temperature alarm protection | |
| Warranty | 1 year |
| Compliance | UL 61010-1 :2012 Ed.3+R:29Apr2016 |
| CSA C22.2#61010-1 :2012 Ed.3 |
| Brand | Across International |
|---|---|
| SKU | H100-15SST-220 |
| Weight (lb.) | 75.0000 |
| Length (in.) | 17 |
| Width (in.) | 20 |
| Height (in.) | 22 |
| Warranty (*Spec-Box) | No |
| Lead Time | No |
| Hazmat? | No |
| UPC | No |
| Prop 65 | No |
| Stop Sale | AK, HI |
| ETL Listed | No |
| UL Listed | No |
| Case/Pack/Pallet Amount | No |
| Extraction Chiller & Heater Type | Recirculating Chillers |
| Chiller Reservoir Capacity | 3.96 Gallon / 15 Liter |
| Chiller Pump Speed Per Minute | No |
| Temperature Range | Ambient to 100°C |
| Temperature Accuracy | +/- 2°C |
| Cooling Capacity | No |
| Heating Capacity | No |
